ILLUSTRATED PARTS/RECOMMENDED PARTS IP24
8$ø5"/,"44&.#-:*--6453"5&%1"3543&$0..&/%&%1"354 $
ITEM # PART # DESCRIPTION
1A WC-75236DV
TANK, ASSY DUAL VOLTAGE D500GT TCTS/PTT3/
CBS/ W/(2)WC-904
1B WC-6282
TANK, COMPLETE D500GT DUAL VOLTAGE
120/220V
2 WC-5853-102 COVER, TOP HEATING TANK GEN USE
3 WC-43062* GASKET, TANK LID
4A
1
WC-5528K* KIT, WATER LEVEL PROBE, SILICONE
4B
2
WC-5502-01*
KIT, PROBE, ASSY WATER LEVEL W/HEX FITTING,
O-RING & NUT
5 WC-904-04*
KIT,ELEMENT, HEATING 1.6KW120V W/ JAM NUT &
SILICONE O-RING
6 WC-1438-101* SENSOR, TEMPERATURE TANK
ITEM # PART # DESCRIPTION
7 WC-4394*
GUARD, SHOCK/HEATING ELEMENT FOR SINGLE
HEATING ELEMENT
8 WC-522*
THERMOSTAT, HI LIMIT HEATER CONTROL DPST
277V 40A
9 WC-37365* KIT, FITTING TANK INLET
10 WC-37266* KIT, FITTING TANK OVERFLOW
11 WC-37317* KIT, STRAIGHT FITTING & BUSHNG 8MM GEN USE
12 WC-43055* GUARD, SHOCK RESET THERMOSTAT (WC-522)

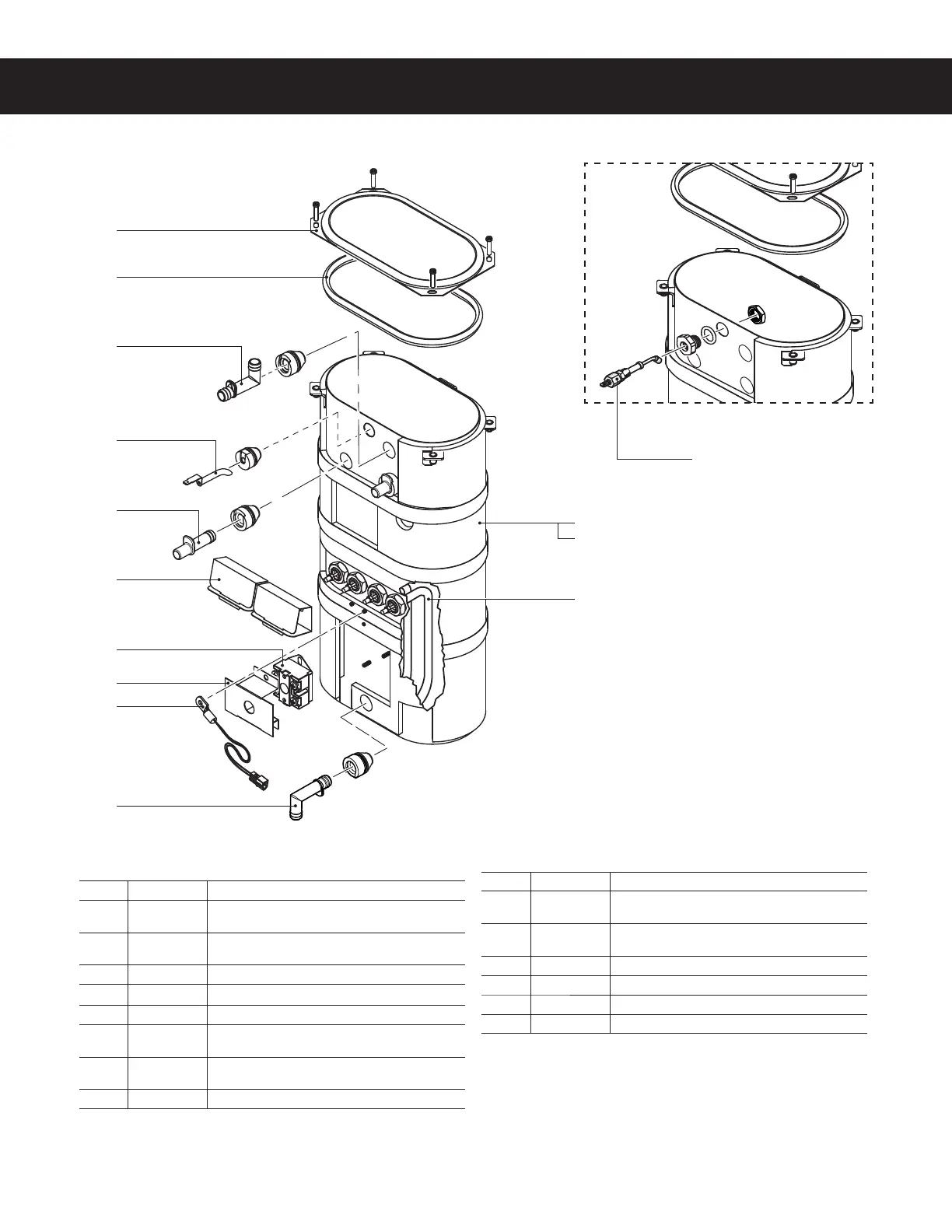

WC-6282 - Tank Assembly
2
3
10
4A
11
7
8
12
6
5
WC-6282 - Tank Assembly - Parts List
1
Units built 01/04/2019 and later.
2
Units built before 01/04/2019. Replaces WC-5527.
*
Recommended parts to stock.
1A
1B
9
4B
To Next Page
