- 3 -

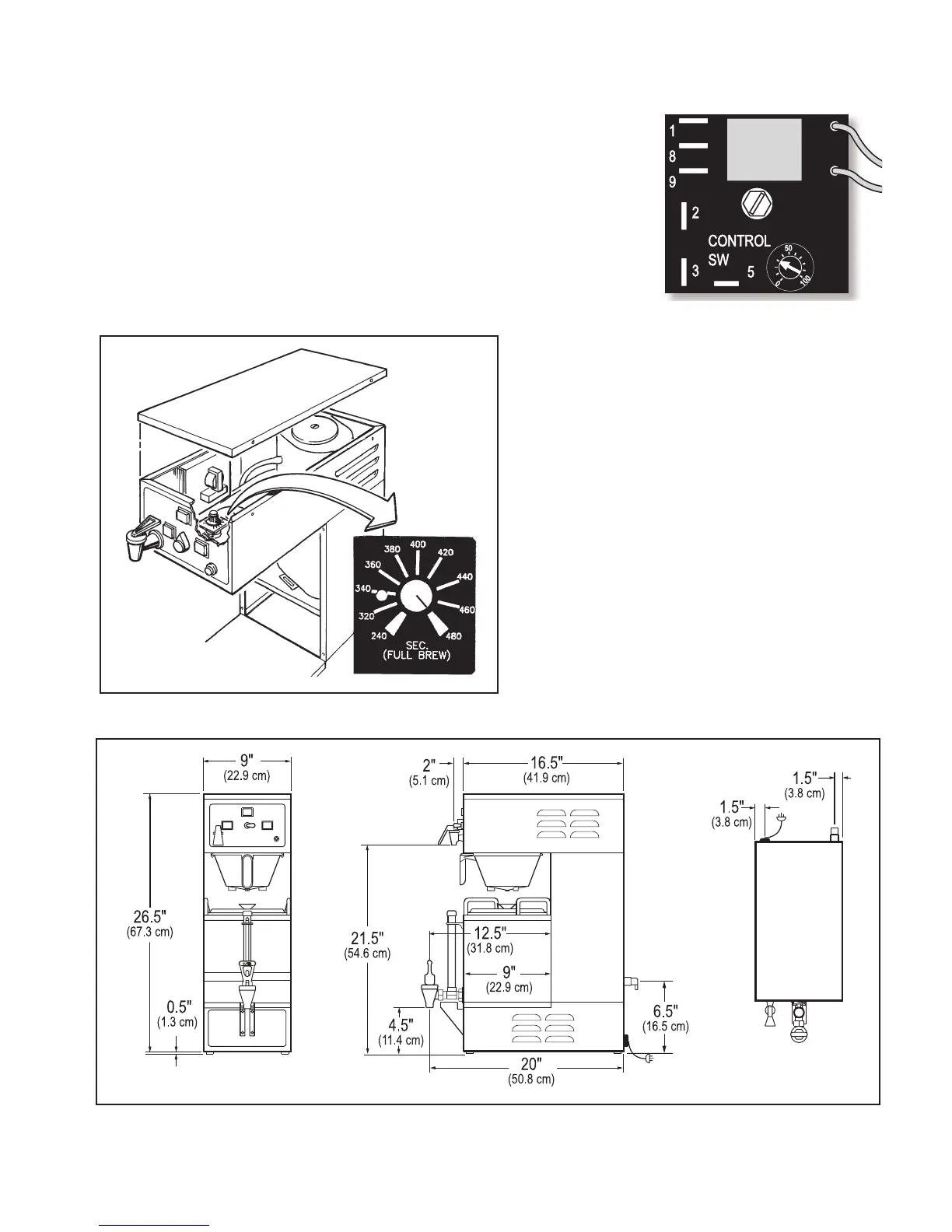

SETTING TIMER WC-603RDS
This timer is the previous version of the WC-603-101,
above. The timer is mounted inside the upper com-
partment with the brew selector knob protruding from
the center of the front panel (see illustration, left). The
brewer is designed to brew 24 cups (one gallon maxi-
mum). Adjustment of the timer is made on the timer
calibration dial. The knob indicator must be set at the
480 second mark on the dial. On the front panel, the
brew selector switch should be at 2. This setting will
deliver one gallon of water (brew 24 cups) per brew
cycle. To brew 12 cups, simply turn the brew selector
knob to 1. If ner adjustments are needed, rotate timer
knob to the right to increase the brew time, rotate to
the left to decrease the brewing time.
GEMINI120A
ROUGH-IN DRAWING
SETTING THE WC-603-101 BREW TIMER
Adjustment of the timer is made on a calibrated dial with a range from 0 to 100.
This is a range of 2 to 20 minutes. The front control panel has a brew selector
switch marked FULL and 1/2.
To change the setting, ip the brew selector switch to FULL. Locate the brew
timer, inside the top cover. Rotate timer arrow to the right to increase the brew
time, rotate to the left to decrease the brewing time. The indicator dial is normally
set pointing at 25. This setting is intended to deliver one gallon of water (brew 24
cups) per brew cycle. To brew ½ gallon, ip the brew selector switch to 1/2.
