CUSHCRAFT A50-5S - Boom Assembly

A50-5S
KEY P/N DESCRIPTION
QUANTITY
MASTER PARTS LIST
13 050013 PLASTIC 1-1/4" 2
CAP (3.8 cm)
412 030412 TELESCOPE 1-3/8" 2
CLAMP (3.5 cm)
AA ALUM 1-3/8" X 50" 1
TUBE (3.5 x 127 cm)
BB ALUM 1-1/4" x 50" 2
TUBING (3.17 x 127 cm)
KEY P/N DISPLAY DESC SIZE QTY
KEY P/N DISPLAY DESC SIZE QTY
Place a mark 3 inches (7.6 cm) in from one end of the BB tubes. Next, place clamp (412) over the ends of the AA tube. Slide the BB tubes
into AA up to the 3" mark, check overall dimension and if correct, tighten clamps. Slide on end caps (13).

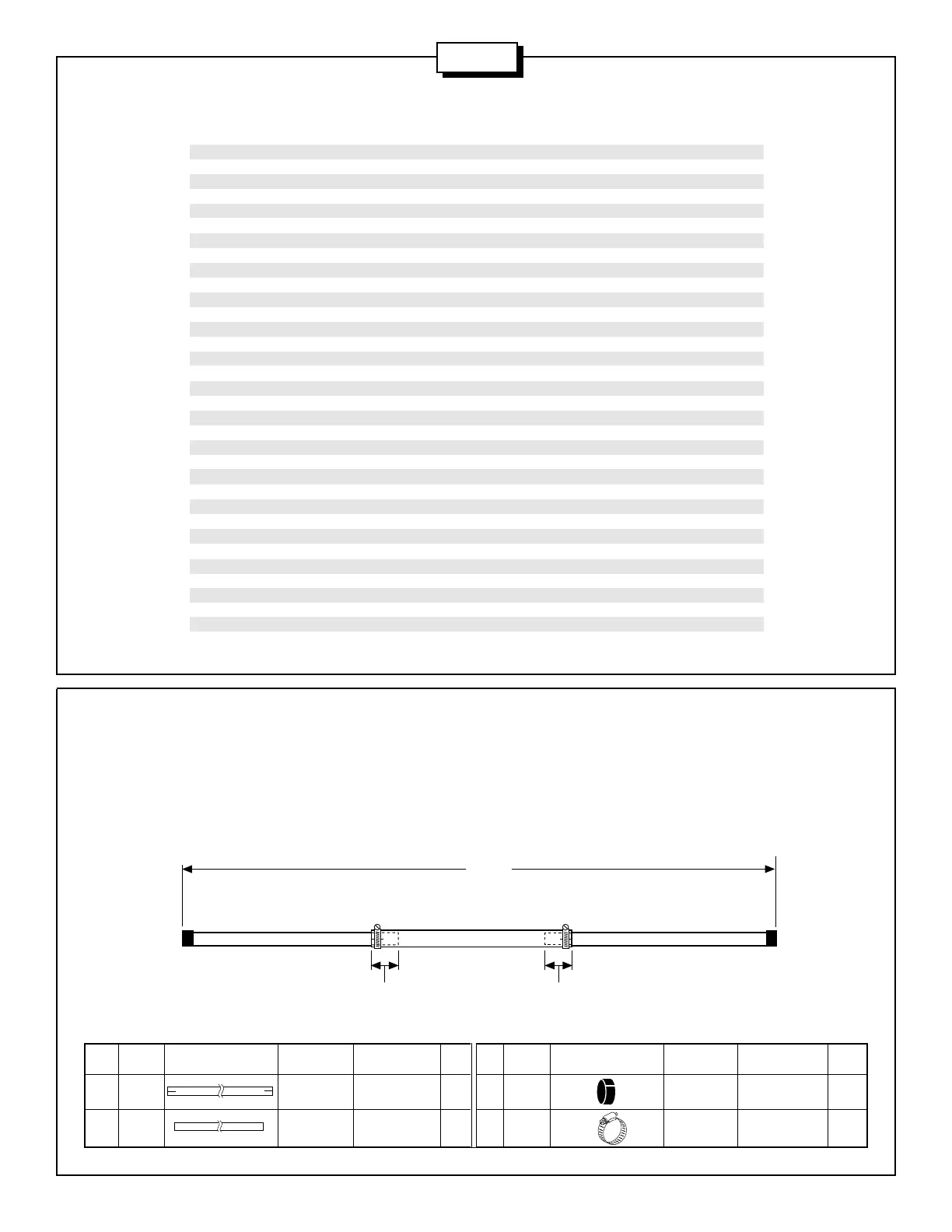

#1 - BOOM ASSEMBLY
9 010009 8-32 x 5/8" (1.59 cm) stainless steel machine screw 2
11 010011 8-32 stainless steel hex nut 3
13 050013 1-1/4" (3.17 cm) plastic cap 2
27 050027 5/8" (1.59 cm) plastic caps 10
32 190032 1-1/2" (3.8 cm) heavy duty U-bolt brackets 5
33 190033 1-1/2" (3.8 cm) U-bolt backing plate 4
69 200069 Formed aluminum tuning strap 1
70 190070 4" x 6" (10.2 x 15.2 cm) formed mast plate 1
84 010084 1/4" (.63 cm) stainless steel lock washer 10
85 010085 1/4" (.63 cm) stainless steel hex nut 10
115 050115 Connector boot 1
116 240116 Silicone package 1
118 010118 5/16" (.8 cm) stainless steel hex nut 8
119 010119 5/16" (.8 cm) stainless steel lock washers 8
326 290326 Danger label 1
402 010402 1-1/2" (3.8 cm) stainless steel U-bolt 5
403 010403 1-5/8" (4.13 cm) stainless steel U-bolt 2
404 010404 2" x 3" (5.1 x 7.6 cm) stainless steel U-bolt 2
409 030409 3/4" (1.9 cm) stainless steel worm clamps 10
412 030412 1-3/8" (3.49 cm) stainless steel worm clamps 2
941 011941 #8 stainless steel lock washer 3
AA 1-3/8" x 50" (3.49 x 127 cm) aluminum tubing, slotted both ends 1
BB 1-1/4" x 50" (3.17 x 127 cm) aluminum tubing 2
EA 3/4" x 48" (1.9 x 121.9 cm) aluminum tubing slotted both ends 5
EB 5/8" x 40-1/2" (1.6 x 102.9 cm) aluminum tubing 2
EC 5/8" x 35-3/4" (1.6 x 90.8 cm) aluminum tubing 2
ED 5/8" x 33" (1.6 x 83.8 cm) aluminum tubing 2
EE 5/8" x 32-1/2" (1.6 x 82.5 cm) aluminum tubing 2
EF 5/8" x 32" (1.6 x 81.3 cm) aluminum tubing 2
CB Connector Bracket 1
RM Reddi Match tube Assembly 1
2
FIGURE A
13
412
AA
BB
13
412
144"
(3.66 m)
3" Insert
(7.62 cm)
BB
3" Insert
(7.62 cm)
