Cushman REFRESHER - Page 118

689428 Service Parts Manual
Page L-5

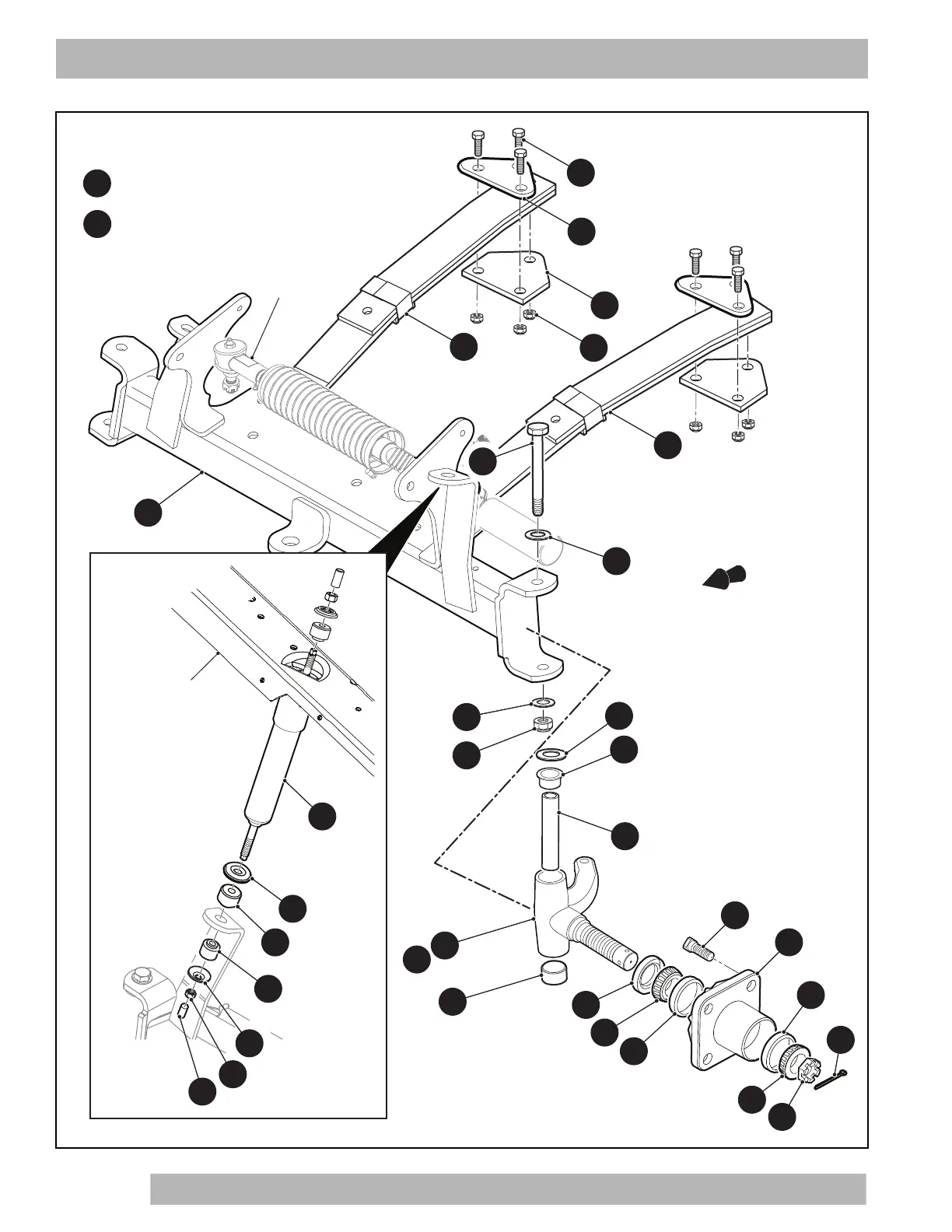

FRONT SUSPENSION AND STEERING
Spindle and Hub Assembly, 4 Lug (Passenger Side)
includes items 4 - 13
Spindle and Hub Assembly, 4 Lug (Driver Side)
includes items 5 - 13, 17
3
16
FOR VEHICLES WITH REAR MECHANICAL BRAKES
Front of Vehicle
Steering Box
Assembly
25
33
31
31
24
34
1
19
18
20
5
14
4
6
7
8
13
12
13
8
11
9
10
17
19
22
27
27
35
26
26
28
30
Part of Frame
