Cushman REFRESHER - Page 52

689428 Service Parts Manual
Page D-13
BRAKES
14
17
26
25
9
10
18
1
2
16
Brake Assembly (Driver Side) includes items 3 - 9
Brake Assembly (Passenger Side) includes items 3 - 8, 10
Brake Drum Assembly includes items 17, 18
22

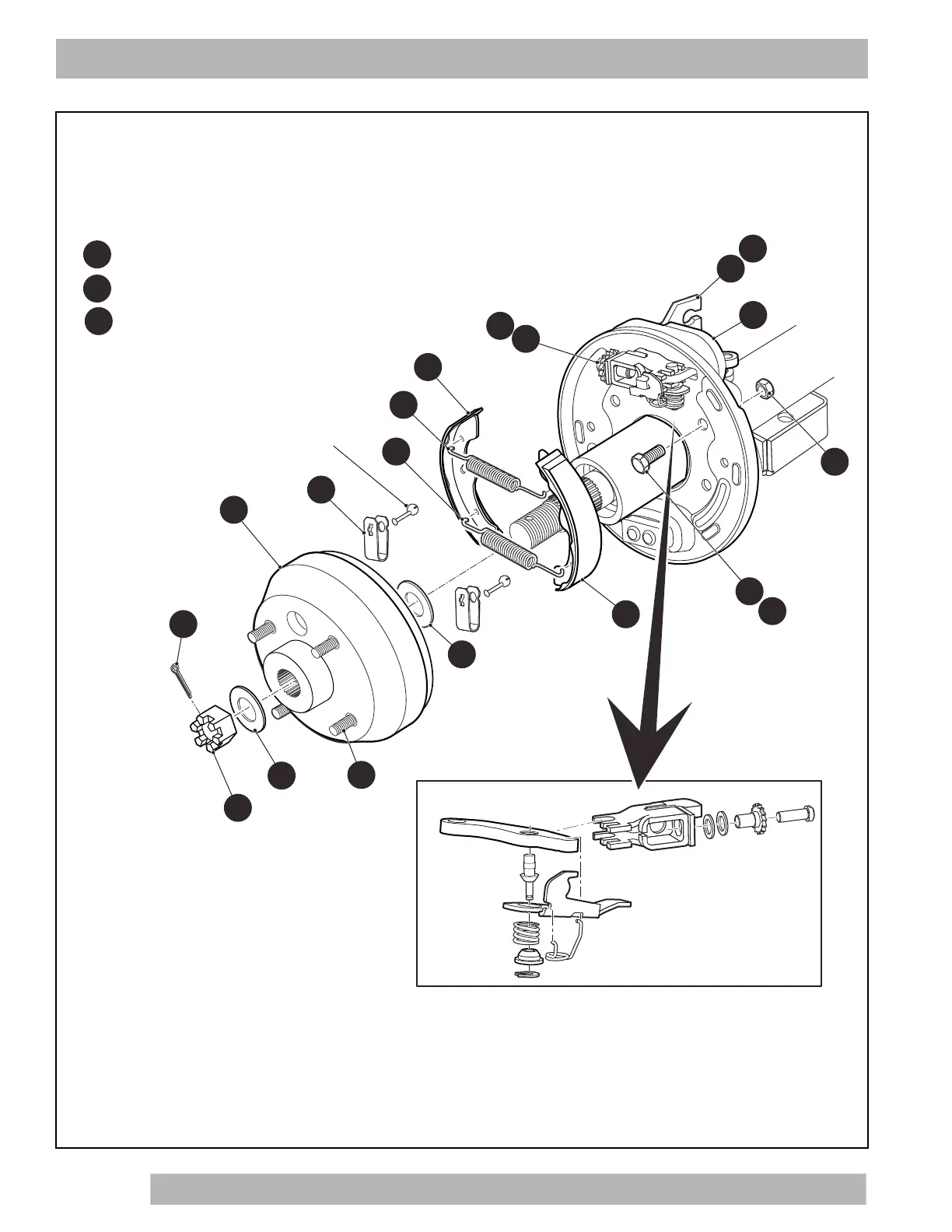

REAR MECHANICAL BRAKES
12
4
5
21
24
23
3
6
7
8
ADJUSTER ASSEMBLY
Tension Pin
13
