689428 Service Parts Manual
Page D-31

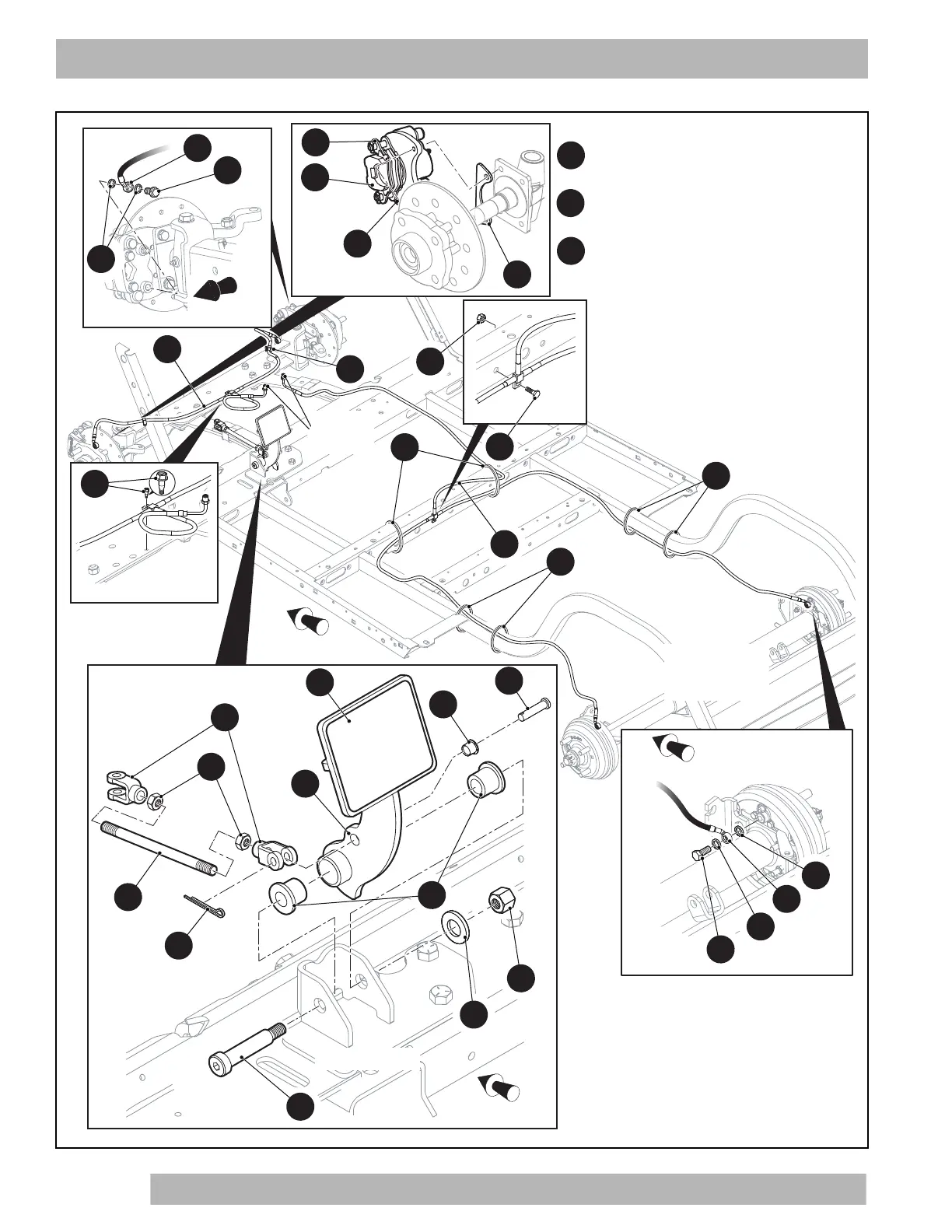

BRAKES
Frame and axle
shown partially
for clarity
To Master
Cylinder
Part of Frame
29
20
19
21
27
18
17
37
34
35
36
20
27
26
26
25
7
6
15
12
10
3
2
13
14
11
4
5
30
30
30
28
Front of Vehicle
Front of Vehicle
Front of Vehicle
Front of Vehicle
1
Hydraulic Brake Pedal Assembly
includes items 2 - 3
32
Brake Caliper Assembly
includes items 34 - 37
9
Linkage Rod Assembly
includes items 10 - 12
