CVS Controls DBQ Series - Page 10

Item
Description
Item
Description
1
Body, LCC, 900/1500#, RF
13
Packing Set, Upper Packing, PTFE
2
Bonnet, LCC, 3-9/16 Yoke Boss
14
Packing Set, Center Packing, PTFE
3
Bonnet Flange, LCC
15
Packing Set, Lower Packing, PTFE
4
Pin, Ø.187, 316 SST
16
Packing Flange, Steel
5
Bonnet Gasket
17
Packing Flange Stud, Steel
6
Seat Ring Gasket
18
Packing Flange Nut, Steel
7
3/4" Stem, 316 SST
19
Packing Box Ring, 316 SST
8
Hex Nut, 9/16”, ASME SA-194-2H
20
Upper Wiper, Felt
9
Stud Bolt, 9/16”x3.78, ASME SA-193-B7
21
Packing Follower, 316 SST
10
Cage
22
Packing Spring
11
Seat Ring
23
Special Washer
12
Plug
24
Lower Wiper, Felt

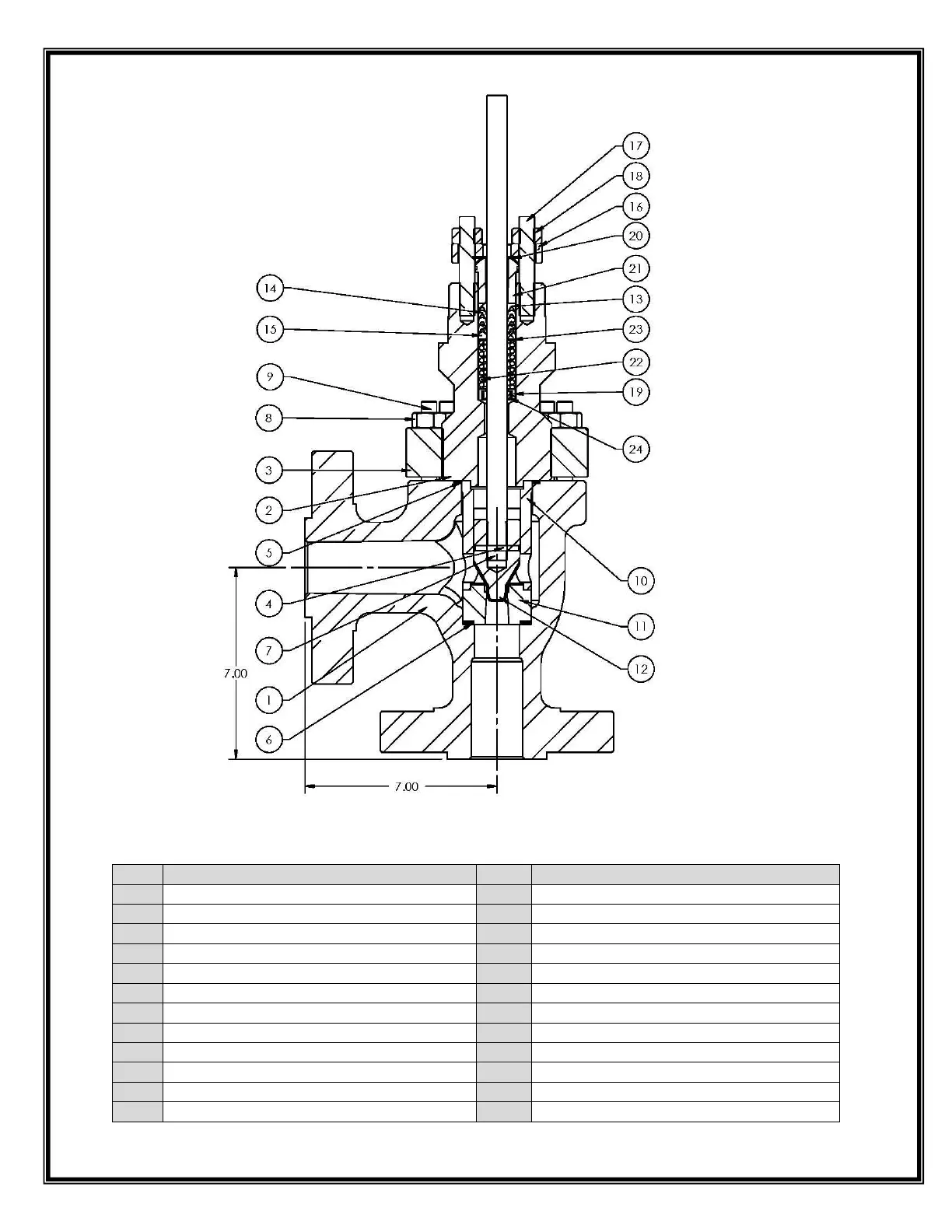

Figure 7: 2” CVS SERIES DBAQ
