11. Vulcan Installation
11.2 Choosing the right Installation Location
11.2.1 Installation in a private house
Vulcan is typically installed at the point where the main water supply line
enters the building. Most of the time, this is close to the water meter
or the main shut-off valve. This way, the Vulcan treatment takes place
before the water is distributed into the building.
European homes usually have a basement and the main water pipe is
accessible easily. The installation thus is very simple. Many other homes
around the world have the water access outside the house. This also
is usually where water meter is located. CWT also offers a range of
additional equipment such as mounting boxes that can protect the unit
from theft and weather.
If the house is equipped with a storage water tank (many times located
on the roof), we recommend the installation of Vulcan after the tank
outlet. This ensures that the water is treated just before it travels
through the piping system. If Vulcan were installed before the tank and
the water had been sitting for 2-7 days in the tank before usage, the
Vulcan effect might get lost in the tank.
11.2.2 Installation in apartment buildings
In general, the same installation guideline as for private houses applies
to larger buildings: Vulcan is installed at the point where the incoming
water supply line is going into the building (typically close to where the
water meter is placed). Please also consider other factors such as the
construction plan of the water carrying pipes and heating system. If you
have an extra system for heating, you may need another unit for the hot
water circulation line. The unit size should be according to pipe diameter
and water ow.
11.2.3 Installation in commercial & industrial settings
Due to the different nature of production sites, there is no standard rule
for installation. As a production site typcially consists of a number of
buildings, the main building can be treated as any other large building.
We recommend the installation of a large unit to treat the main water
industrial usage inlet. This is a basic treatment and additional smaller
Vulcan units should be installed right before the worst scale problem
generating machinery (heat exchangers, cooling towers, chillers,
production lines, …). Please contact us, if you need technical assistance.
11.2.4 Installation in circulation lines
If you have a circulation line either open, semi-closed or closed-loop
line, there should be an extra Vulcan unit placed there. The water in
circulation travels long distances and the circulation pumps often suffer
severely from scale deposits. The Vulcan size needs to be selected
according to the pipe size of the circulation.

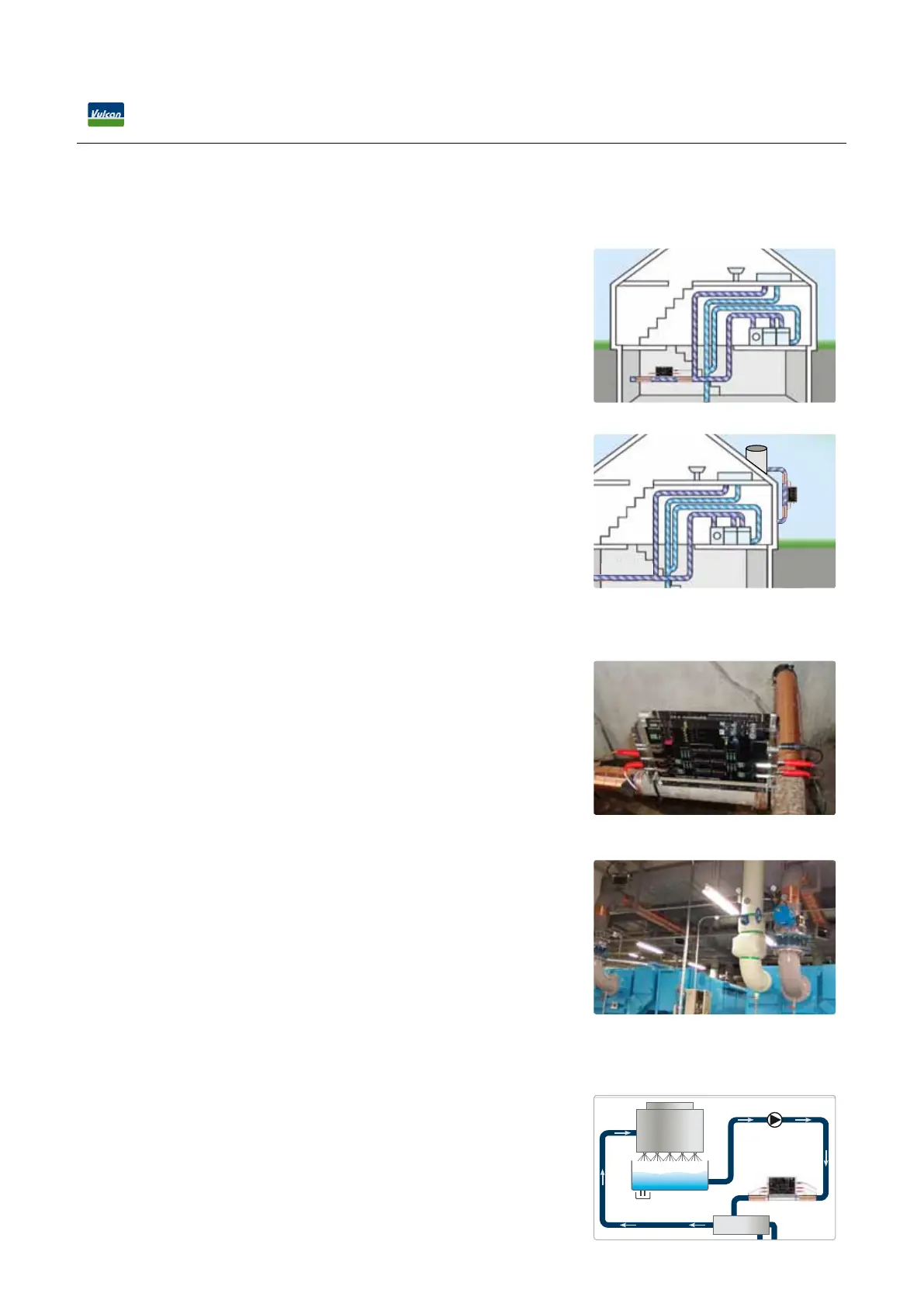

Open loop circulation line
Basement installation
Storage tank installation
Vulcan installation in an apartment building
Vulcan installation in a factory
www.cwt-international.com
On closed loop circuits, Vulcan is located after the pump.
Case Study – Cooling Tower
“ ... A er installa on of the Vulcans,
the status of the cooling towers was
inspected without using any water
treatment chemicals. Even a er ap-
proximately six months, almost no
scale buildup was observed inside
the refrigerators and the heat ex-
changer tubes.
Calcium which was adhered on the
cooling towers was easily removed
with the wipe of a fi nger. With these
results, the eff ec veness of the Vulcan
installa on could be confi rmed. ...“
Christiani Wassertechnik GmbH (CWT)
Köpenicker Str. 154 | 10997 Berlin | Germany
Phone: +49 (0)30 - 236 077 80
Cooling Towers - US 12/2010
Vulcan - Against Scale and Rust
Vulcan is the eco-friendly water treatment system
which protects your pipes and equipment against
scale and rust.
►
Eco-friendly solution without chemicals or salt
►
Reduction of existing scale in the piping system
►
Maximum working life of machinery and equipment
►
Important minerals remain in the water
►
Long life – fully cast in acrylic
►
Maintenance-free
►
10 year international warranty
►
Easy installation without cutting the pipe
►
From
1
/
2
“
up to 20
“
pipe diameter
►
Works on all pipe materials – iron, copper, plastic,
stainless steel, PVC, compound pipes, PE-X, etc.
Vulcan S25
Test report on Vulcans (pulsed water treatment systems)
installed as a preventive measure against scale buildups c ausing faulty of
the cooling towers
February 24, 2007
Tested field: Factory of a pharmaceutical compa ny
Installation sites: Cooling towers on the rooftop of the second building
2-1 cooling tower A: Makeup water piping s ize is 50A.
2-2 cooling tower B: Makeup water piping size is 50A.
1 cooling tower C: Makeup water piping size is 50 A and circulating piping size is 80A.
Model installed:
Vulcan S25
(water treatment capacity: 25 m3/hour)
Date installed:
For the cooling towers A, B, and C: July 22, 2 006
For the cooling tower C: October 6, 2006
Object ives:
To prevent scale buildups on the cooling towers.
To reduce chemicals used for water treatment
(measure for complying with ISO 14001)
To save the energy cost by p reventing the deterioration of the heat exch ange effectiveness
Veri fic ati on of the ef fec tiv ene ss:
After installa tion of the Vulcans, the sta tuses of the cooling towers A, B, and C were ins pected witho ut using any water
treatment che micals. Eve n after elapse of approximately six months, almost no scale buildups were observed inside the
refrigerators and th e heat excha nger tubes, and no water pollution warning wa s displayed. (Usually, without wa ter treatment
chemicals, the water quality is dete riorated and water pollution warning is displayed.) Silica adhered on the co oling towers was
easily removed with a finger touch. With the se results, the effectiveness of the installation o f the Vulcans could be confirmed.
Rem ark s ( Sum mar y)
The water treatment system, Vulcan, has the following features: (For details, refer to the brochure attached.)
Vulcan chan ges only the crystal structure of scales without changing the quality of water. T herefore, nothing is added or
reduced to or from the ingredients of water. The water through Vulcan is soft and has an increas ed permeability. Vulcan makes
city water to drinking water and can be used a s better cooling water.
(*) The effectiveness of the water treatment in the water supply line will last for 48 hours and for approximately 2 km in distance.
Major features include:
- Prevents buildups of rusts and scales
- Makes cleaning in the kitchen and bathroo m much easier (toilets, showers, tiles, joints, e tc.)
- Drastically reduces the clogging due to oil ba lls
- Eliminates the necessity of strong chemicals for removing scales.
- Eliminates the necessity of additives.
- Does not change the water quality.
- Prevents the clogging at the time of drainag e
Vulcan installed on the
circulating piping (80A)
Used for the cooling towers
A, B, and
C
Used for the cooling towers C
Vulcan installed on the
makeup water piping
(50A)
Installation Example-Open Circuit
Vulcan should be installed just before the heat exchan-
ger. Please ensure to regularly drain the circuit at the
bottom of the basin or use a centrifugal fi lter to take
away remaining solids from the cooling tower water.
Without treatment With Vulcan treatment
Open loop example
Cooling Tower
Basin
Heat Exchanger
Drain
