CXN V2 - Digital Output Connections; Digital Coaxial Output; TOSLINK Optical Output; Control Bus Functionality

11
Note: If using either of the digital outputs of the CXN (V2), the digital signal will bypass the DAC in CXN (V2) and will instead be processed by the unit
connected to the digital output, E.g., CXA81

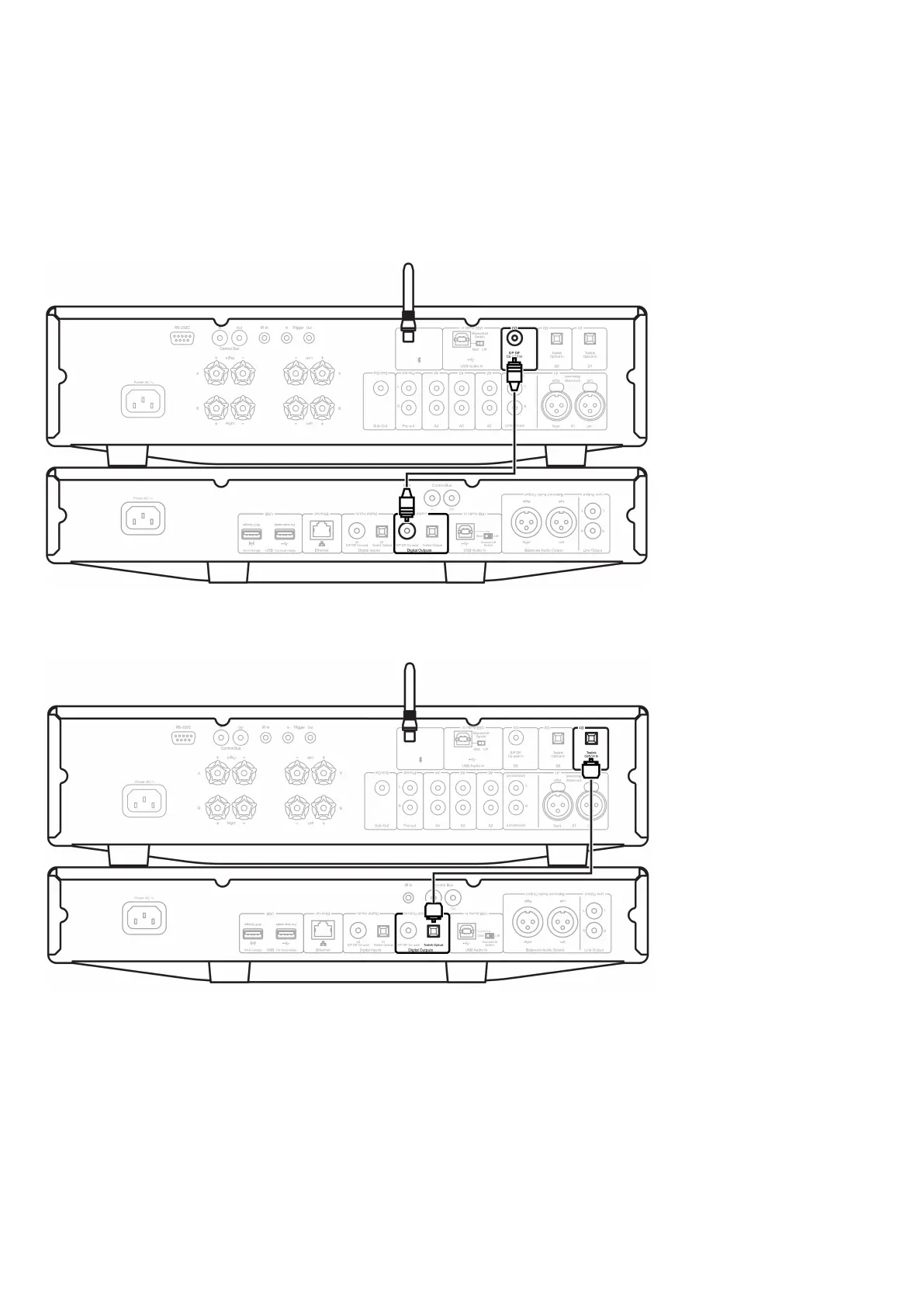

1. Digital Coaxial Output – Digital Coaxial connections are commonly used with CD players and amplifiers and is recommended for use as it has
higher bandwidth.
2. TOSLINK Optical Output – Whilst having lower bandwidth, TOSLINK Optical connections are commonly found on televisions, DVD players and A/V
units.
Control Bus
The Control Bus lets you control your other CX series units. See the following diagrams when connecting the CXN (V2) using the provided Control Bus
cable.
