CXN V2 - System Control Bus Integration; CXN (V2) with CXA (via StreamMagic app); CXA with CXN (V2) Control; CXA with CXN (V2) and CXC Control

12
Another added feature with this Control Bus is the use of the StreamMagic app. You can use the StreamMagic app to control other CX series units via
the CXN (V2).

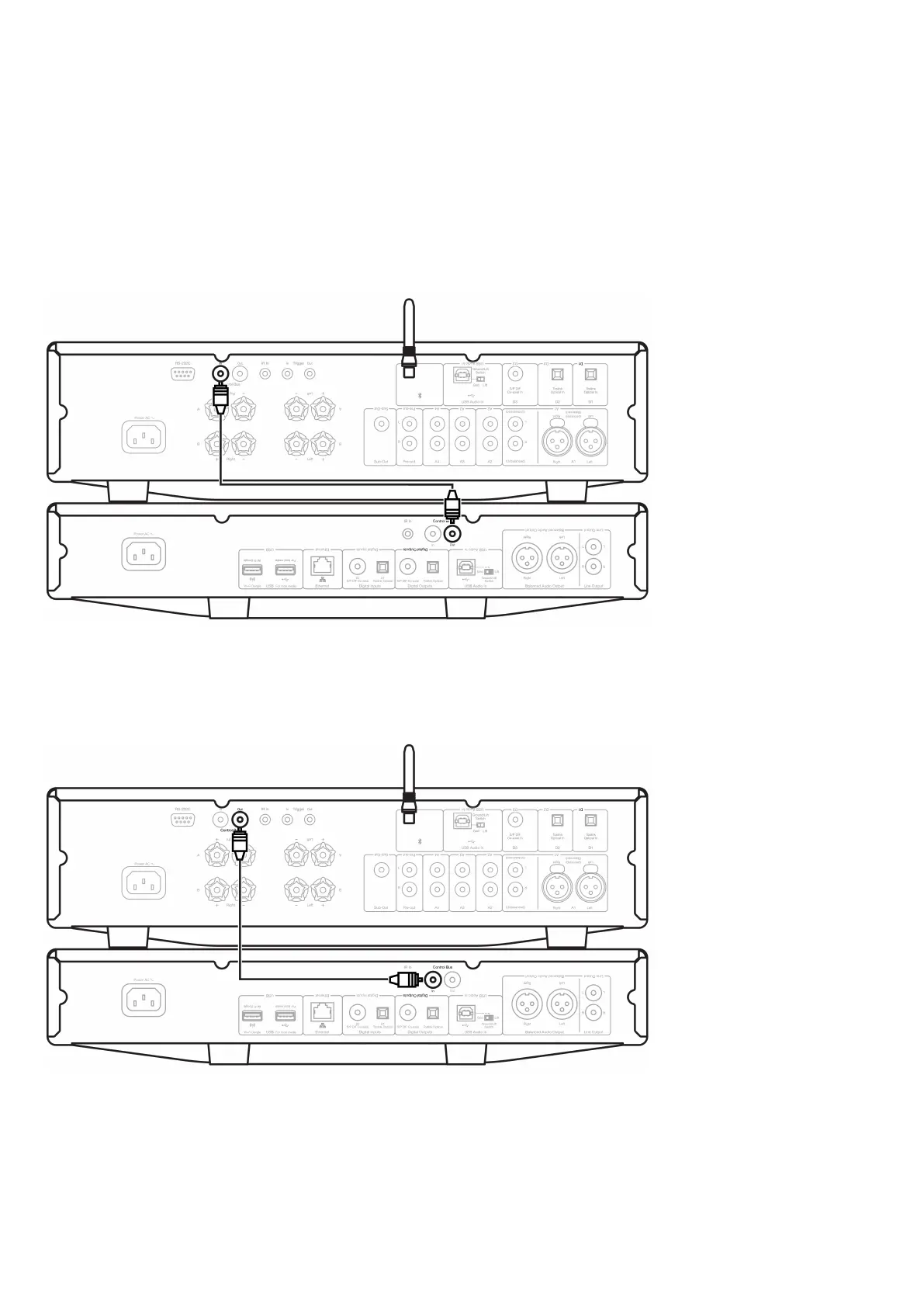

CXN (V2) with CXA (via StreamMagic app)
When using the app to turn the CXN (V2) on/off, this will also turn the CXA on/off. The app can also be used to control the volume of the CXA. Connect
the CXN (V2) Control Bus Out to CXA Control Bus In.
CXA with CXN (V2)
Note: Without using the StreamMagic app to control the CXA.
When turning the CXA on/off, this will also turn the CXN (V2) on/off. Connect the CXA Control Bus Out to CXN (V2) Control Bus In.
CXA with CXN (V2) and CXC
When turning the CXN on/off, this will turn the CXA and CXC on/off.
