2） CP8150A CP8300A CP8500A

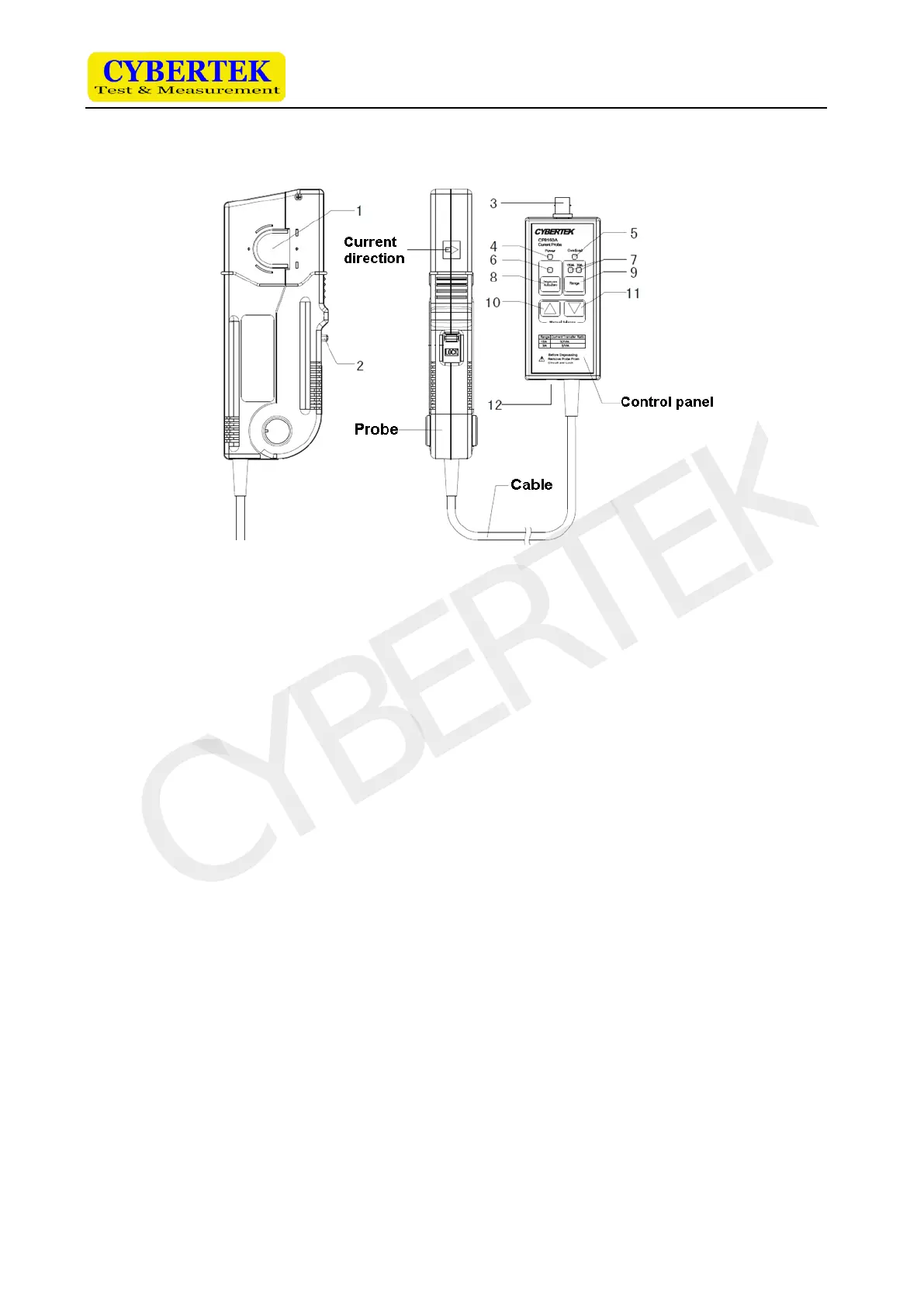

Sensor Head
This clamps the conductor being measured, and carries out the actual current measurement. It is
a precision assembly including a molded component, a ferrite core, and a Hall effect element. It
maybe damaged if subjected to sudden changes in ambient temperature, or mechanical strain or
shock. Care should be exercised when handing the sensor head.
Opening lever
Operating lever used to open the sensor head. Always use this lever to open the sensor head
.
BNC Output Connector
The BNC port allows quick connect/disconnect the probe to any brand of oscilloscope by a BNC
Cable (CK-310)
Power indicator LED
A green LED indicates the power adapter is plugged in.
Overload Indicator LED
If/when the current under measured exceeds the limit current, the red LED will light up and the
buzzer will sound an alarm.
