Shenzhen Zhiyong Electronics Co., Ltd
12

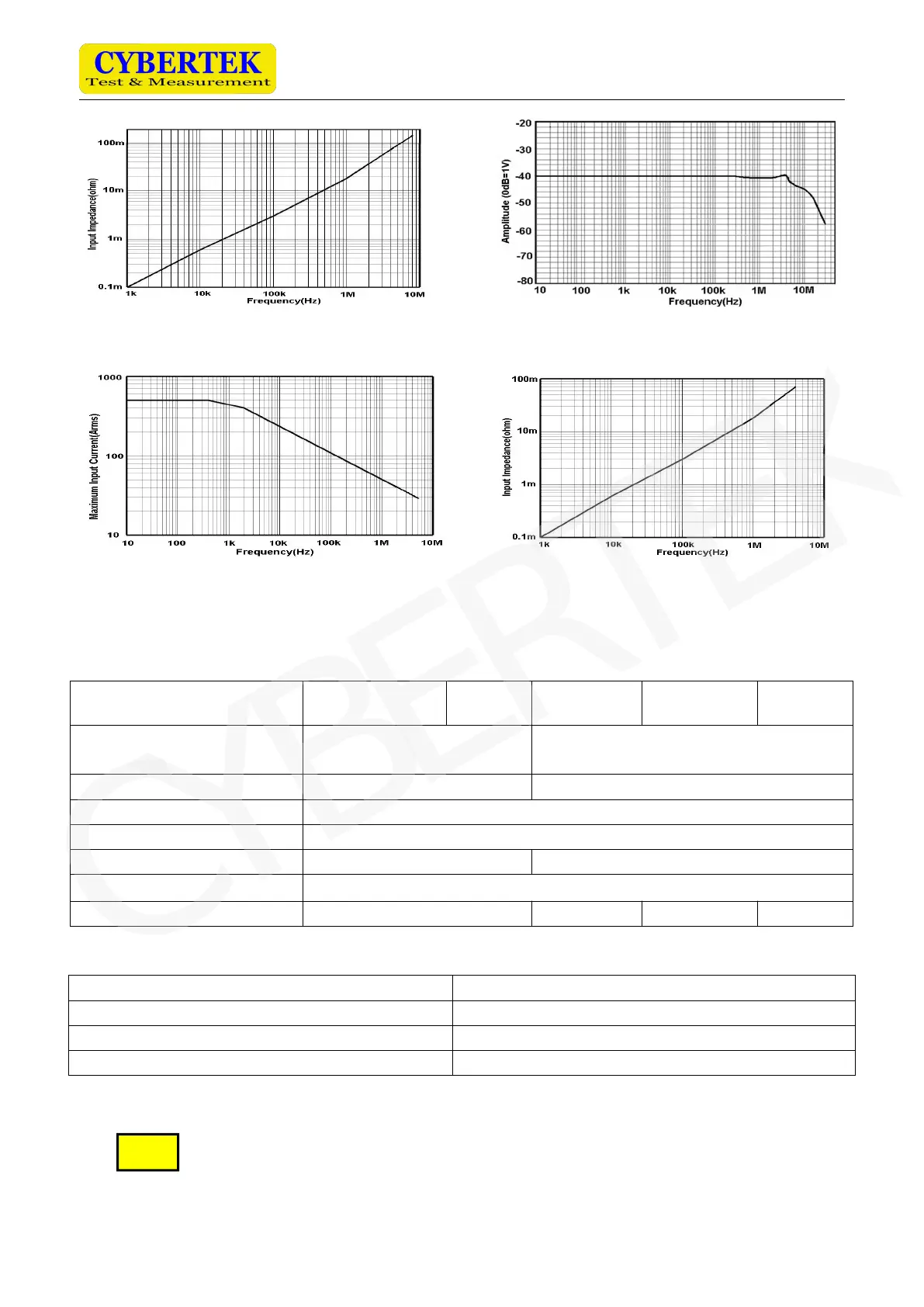

Fig 12.b HCP8300A Fig 13 HCP8500
Input Impedance-Frequency Curve Amplitude-frequency Curve
Fig 14 HCP8500 Fig 15 HCP8500
Maximum continuous input measurement Input Impedance-Frequency Curve
Mechanical characteristics
Environmental characteristic
Operating temperature and humidity
0-40,80% or less
Storage temperature and humidity
-10-50,80% or less
Operating altitude
2000m
Storage altitude
12000m
7. Operating Method
The output interface of this machine is set inside. When using the oscilloscope, please select high input
resistance (1MΩ). If the input resistance is 50Ω, the data will be incorrect.
Please make sure the current measured doesn’t surpass the maximum current. The magnetic core will saturate.
Model
HCP8030(C/D/H)
HCP8050
HCP8150 (A)
HCP8300 (A)
HCP8500
Measurement conductor
diameter max.
5mm
20mm
Cable length
1m
1.5m
Cable length(CK-310)
100cm
Adapter dimensions(CK-612)
62*58*29mm line1.5m
Clamp dimensionsL*W*H
176*39.5*18mm
174*67.5*30mm
Termination unitL*W*H
91.5*40*26.5mm
Probe weight
255g
555g
525g
525g
Note
