CYBEX 750C - Page 21

Cybex 750C/750R Total Access (TA) Addendum

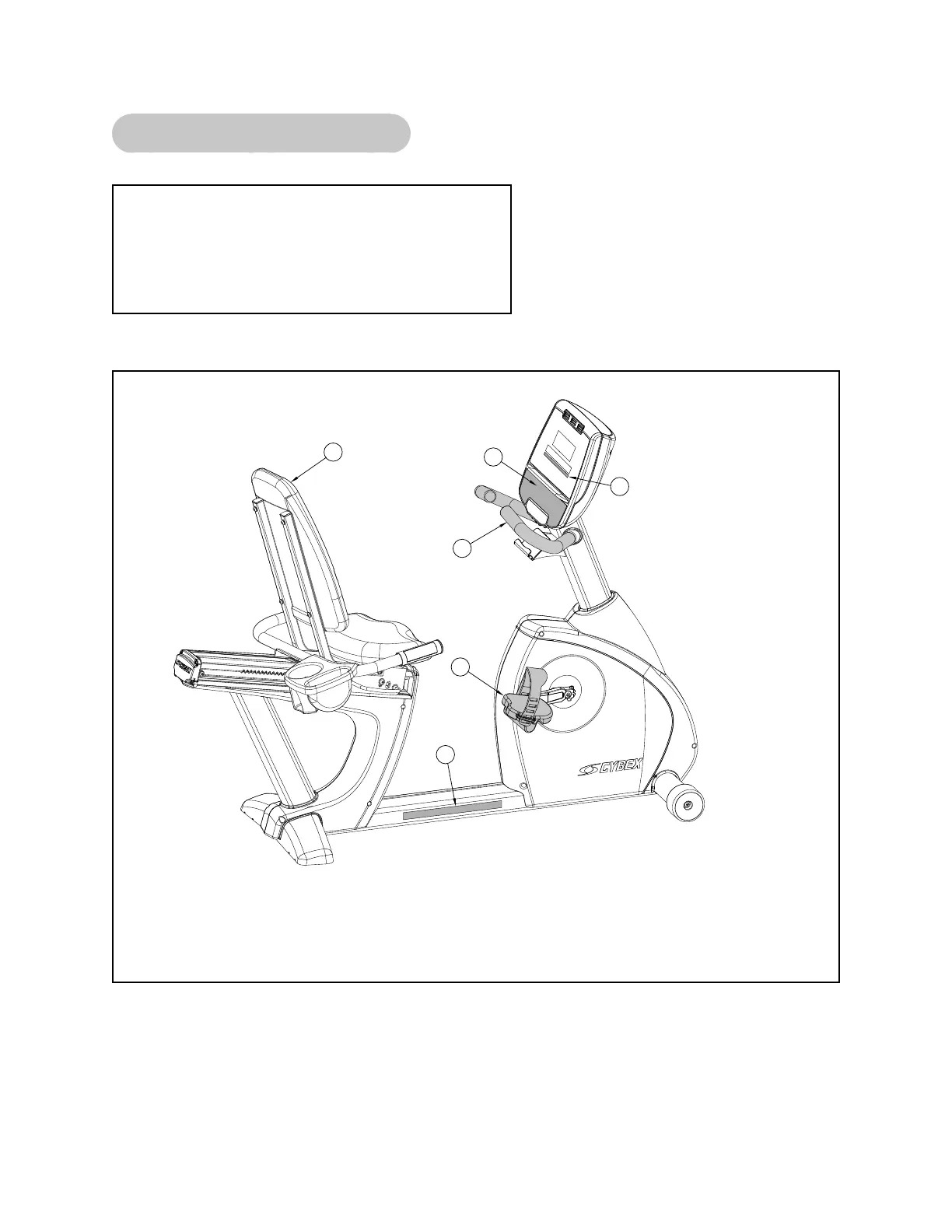

Exploded
Views
Page C-2
ITEM QTY PART NO. DESCRIPTION
1 1 DE-21937-4 MASK,ENUNCIATOR,750C 750R,ENG, IFI
2 1 SW-21894-4 MEMBRANE, 750C 750R,BTM,ENG, IFI
3 2 HX-22113 GRIP,HANDRAIL,750R, IFI
4 1 AX-18138 PEDAL SET X-WIDE 9/16” THREAD
NS 1 HX-21527 PEDAL STRAP SET, TITAN II
5 2 DE-22295 DECAL,FRAME,750R,YELLOW
6 1 AX-21943 ASSEMBLY, SEAT SHUTTLE, 750R, IFI
Parts List Cybex 750R Cybex
3
5
1
2
4
6
See IFI Seat
Assembly
Detail
NOTE: NS = Not Shown
