CYBEX 750C Addendum To Manual

Cybex 750C/750R Total Access (TA) Addendum

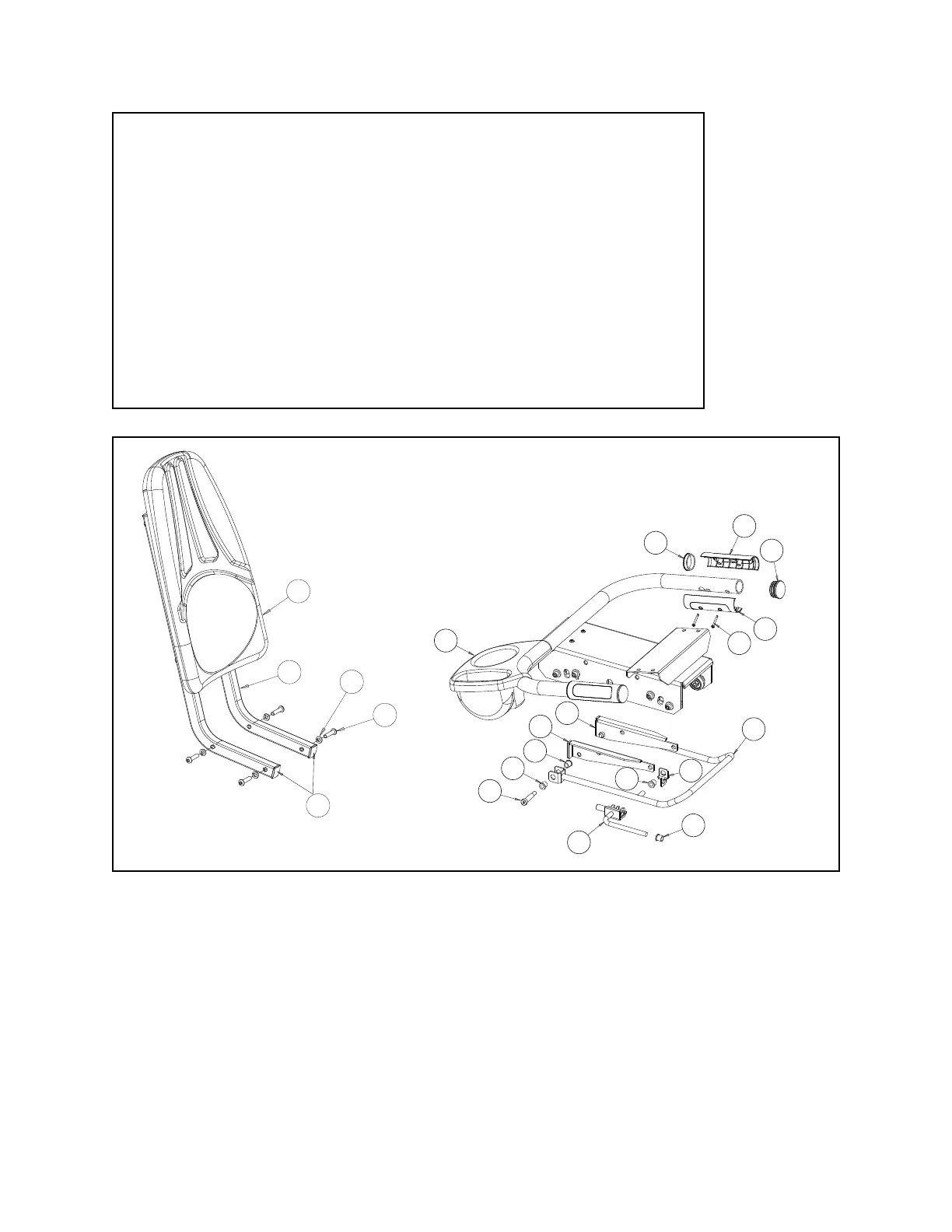

Exploded
Views
Page C-3
ITEM QTY PART NO. DESCRIPTION
7 8 HW-53018 WASHER, 5/16”, SPLIT, SS, BLK
8 1 AF-20726 HANDLE, RECUMBENT IFI
9 1 AF-20719 BRACKET, HANDLE MOUNT, RIGHT, RECUMBENT IFI
10 1 AF-20720 BRACKET, HANDLE MOUNT, LEFT, RECUMBENT IFI
11 1 AF-21945 LEVER, SEAT ADJUSTMENT, RECUMBENT IFI
12 1 AF-20758 WELDMENT, 90 DEG CONNECT, RECUMBENT IFI
13 1 HS-20730 SCREW, SHEILD, 3/8 DIA. X 1.25 X 5/16-18”
14 6 HB-20728 BEARING, FLANGE, NYLON 3/8” DIA. SHAFT
15 2 AX-20328 GRIP, HR TOP, IN-MOLDED
16 2 AX-20329 GRIP, HR BOTTOM, IN-MOLDED
17 2 PL-20230G END CAP, CONTACT GRIP, GRAY
18 2 HX-18974 SEAL, HR GRIPS
19 4 HS-20306 SCREW, 6-20 X 1.12” PNHD, PHIL
20 1 PL-18122G ACCESSORY TRAY, GRAY
21 4 CA-40052 CAP, PLASTIC, 1 X 1”, 10-14 GA.
22 2 FT-18080 TUBE, SEAT BACK, POWDER COATED
23 4 HS-41107 BOLT, 5/16-18 X 1.5”, BTHD, SST, BLK
24 1 PD-18177G SEAT BACK, GRAY
24
21
23
22
7
8
9
10
11
12
13
14
14
14
20
14
15
16
17
18
19
IFI Seat Assembly Detail
