4-1
Product Number 8800/8810/8830/8840 Owner’s Manual
4 - Assembly
NOTE: Two people will be required to perform this
procedure.
NOTE: It is the responsibility of the facility
owner/owner of the equipment to ensure
that there is appropriate clearance around
each machine to allow for safe use and
passage.
1. Read and understand all instructions
thoroughly before assembling this product.
2. Verify the appropriate confi guration was
received:
Correct color of machine.A.
Proper weight stack and weight stack decals. B.
Standard Stack - Weight Pack #13000-041
Graduated Stack - Weight Pack #13000-039 and
Weight Pack #13000-040
Appropriate owner’s manual.C.
Warranty sheet.D.
Verify which machine was received 8800 or 8830 E.
(Chin-Up Bar Installed) or 8810 or 8840 (With
Chin-Up Bar).
3. Move to desired location.
NOTE: If machine is an 8800/8830 and does not fi t through doorway proceed to step 10.
NOTE: If machine is an 8810/8840 and does not fi t through doorway proceed to step 10J - 10P. Proceed to
step 13 to install Chin-Up Bar.
NOTE: If machine is an 8810/8840 install Chin-Up Bar. Proceed to step 13 to install Chin-Up Bar.
4. Remove shipping pallet.
WARNING: Use extreme caution when removing shipping pallet. Failure to do so could result in injury.
With an assistant, using a 9/16” wrench, carefully remove each lag bolt securing frame to A.
pallet.
7/32” Allen wrench•
3/4” Socket•
Hammer•
3/16” Pin punch•
9/16” Wrench•
Loctite #242•
Tools Required
6
100
45.0
20
9.0
40.5
22.5
31.5
27.0
36.0
40
18.0
13.5
80
70
60
50
10
90
30
4.5
250
113.5
147.5
140.5
265
127.0
120.0
325
310
295
280
130
59.0
106.5
79.0
93.0
86.0
100.0
160
72.5
65.5
220
205
190
175
115
235
145
52.0
134.0
5
7
1
2
3
4
8
10
9
11
13
14
12

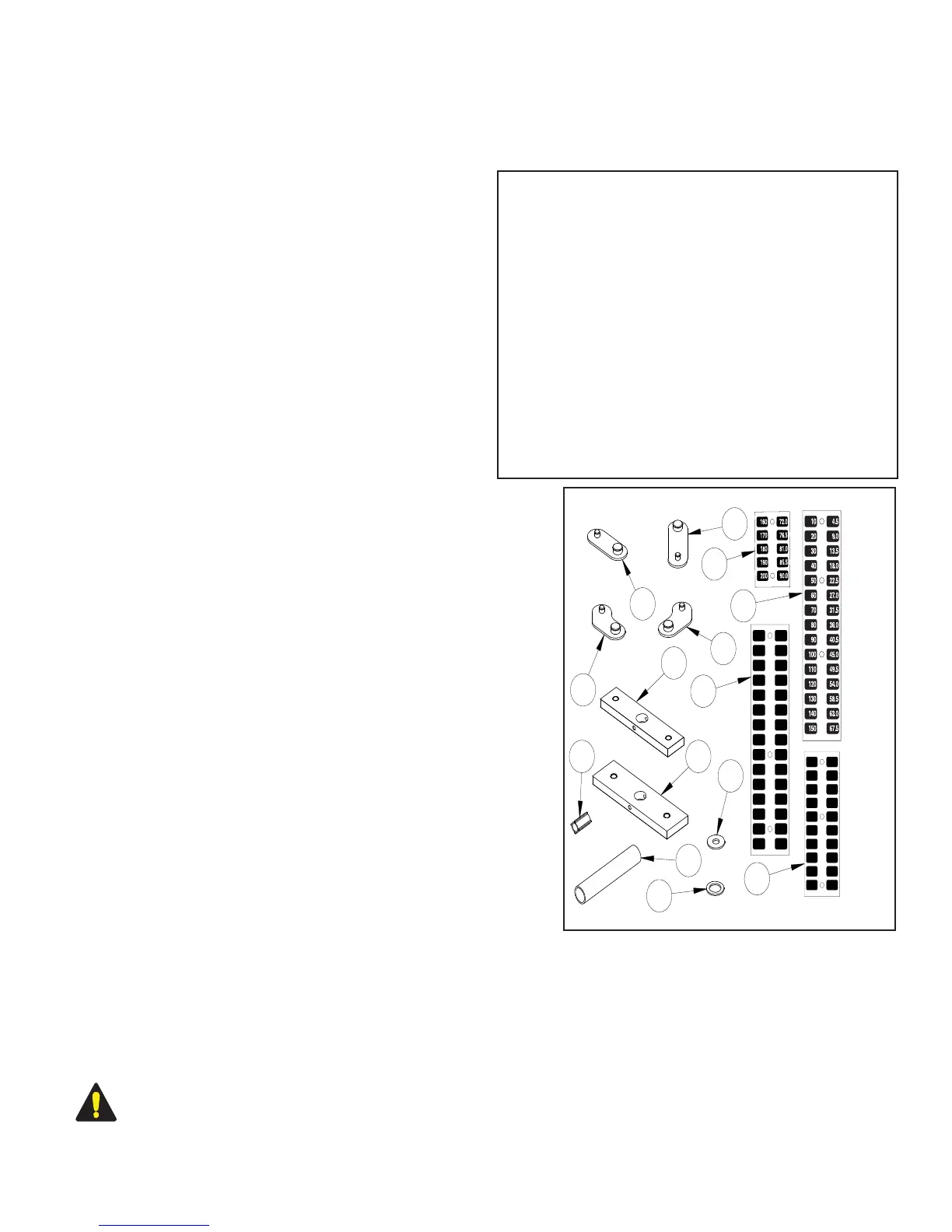

1 2 12090-322 FOOT PAD
2 2 13000-353 FOOT PAD
3 1 13000-355 FOOT PAD
4 1 13000-354 FOOT PAD
5 1 13000-551 DECAL, STANDARD (160-200)
6 1 4800-557 DECAL, STANDARD (10-150)
7 16 4700-337 WEIGHT PLATE (STANDARD)
7 9 4700-337 FOR GRADUATED STACK
8 15 4700-338 FOR GRADUATED STACK
9 1 13000-554 DECAL, GRADUATED (10-100)
10 1 13000-555 DECAL, GRADUATED (115-325)
11 8 12210-352 PLASTIC INSERT
12 2 8830-317 WEIGHT SPACER TUBE
13 2 HS760106 WASHER, FLAT 1.75 X .688 X .140
14 2 JS497600 WASHER 1.19 ID X 1.75 OD X .12
STANDARD STACK ONLY - items 5, 6, 7 (qty - 16), 11, 12, 13 and 14
GRADUATED STACK ONLY - items 7 (qty - 9), 8, 9 and 10
ITEM QTY PART NO. DESCRIPTION
