Maintenance
Page 5-6

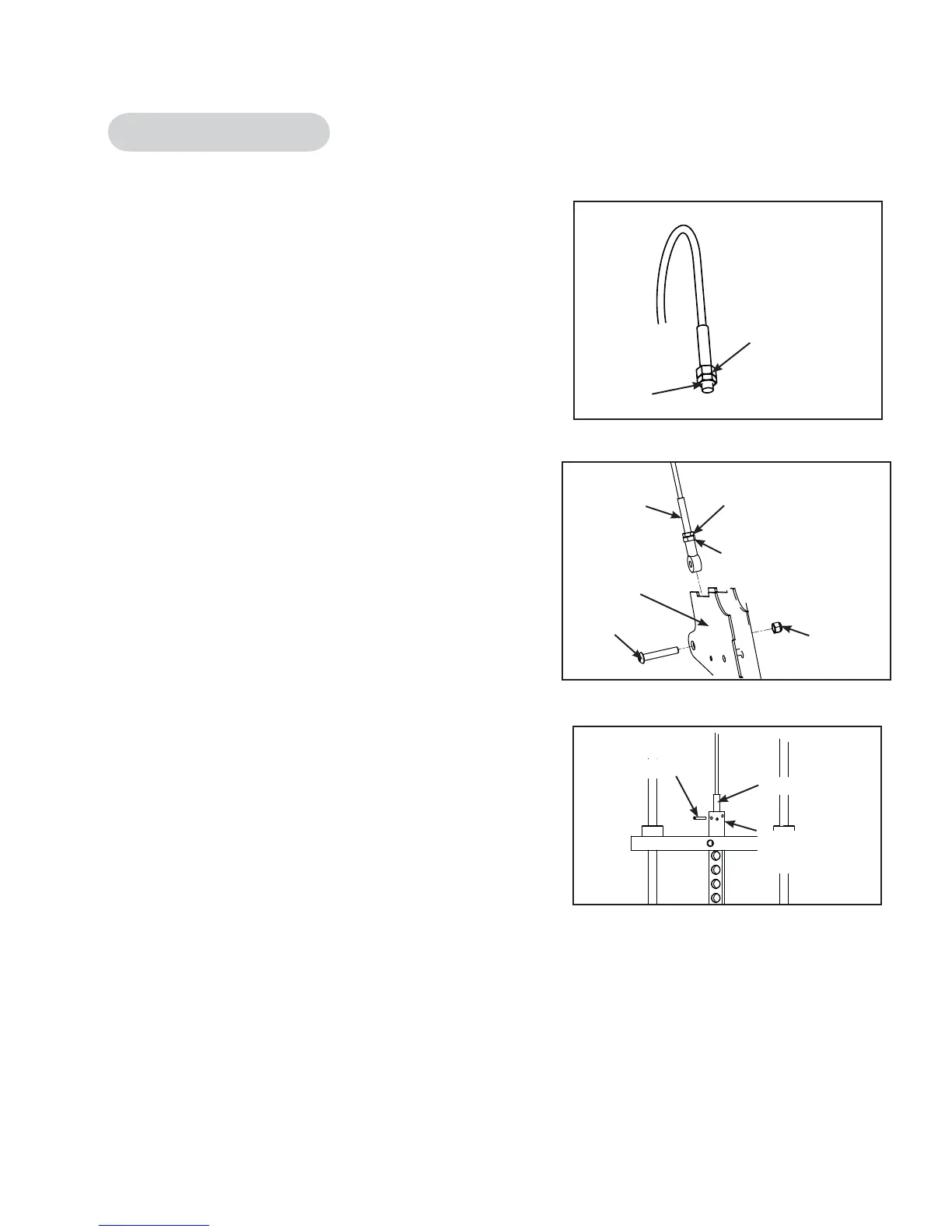

Cable Adjustment
Three types of cable tension adjustment are used on Cybex Strength Systems:
1. Jam Nut Adjustment - This type uses a jam nut
and a tension adjustment nut at the cable cam end
as the primary adjustment. The other end of the cable
usually contains a roll pin adjustment. See Figures 6 and 7
.
2. Rod End Adjustment - This type of adjustment contains
a socket head cap screw (SHCS) securing a cable rod end
bearing to the machine. Primary
adjustment is by turning the rod end bearing. The other end
of the cable usually contains a roll pin cable adjustment.
See Figures 7 and 8.
3. Roll Pin Adjustment - This type of adjustment utilizes a roll
pin and series of holes in the weight stack top weight
connector. See Figure 8.
Figure 6
Figure 7
Figure 8
Tension
Adjustment
Nut
Jam Nut
Cable End
Jam Nut
Cable Rod End
Bearing
SHCS
Frame
Nylon
Locknut
Cable End
Top Weight
Connector
Roll Pin
