Cybex Arc Trainer 610A Owner’s Manual
Setup
and Assembly
Page 5-8

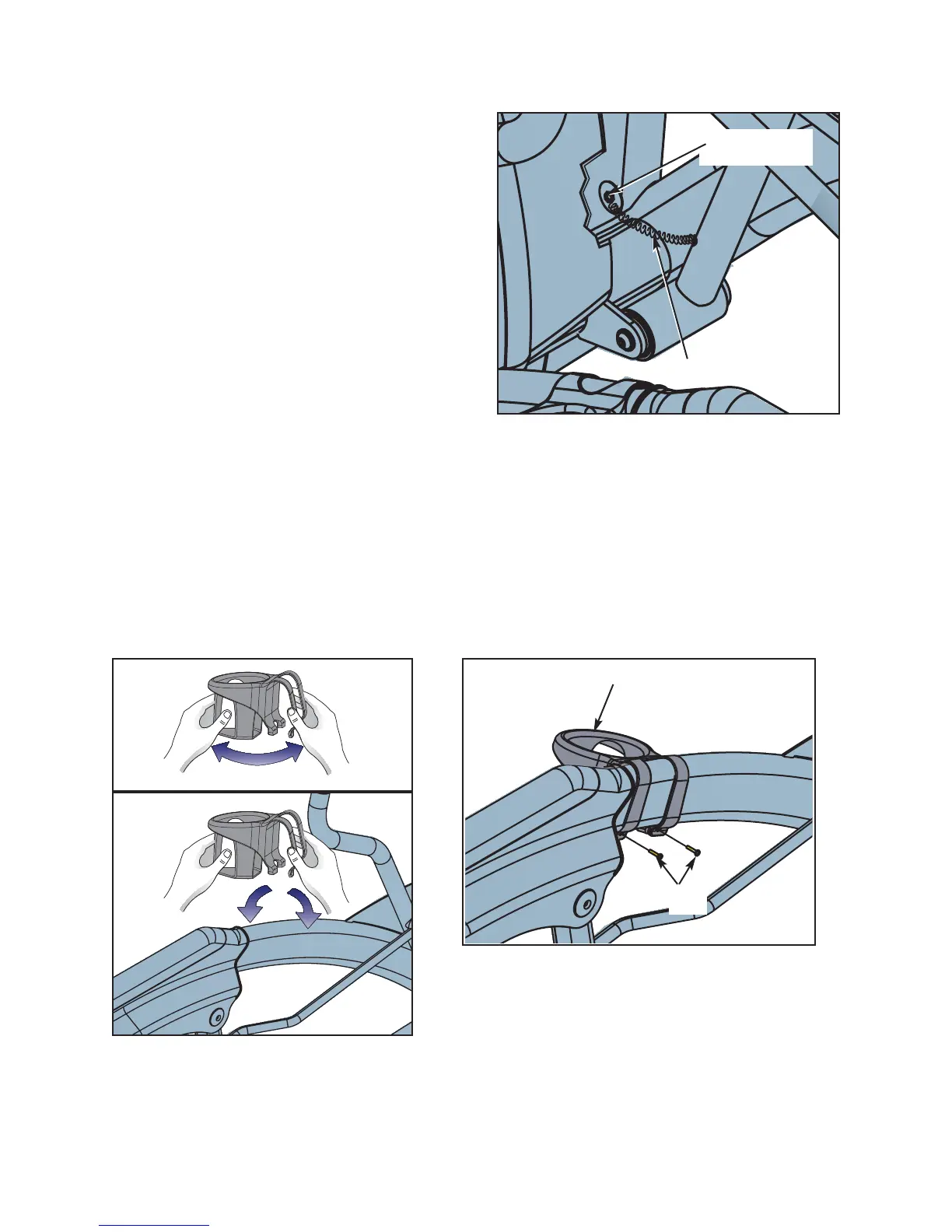

9. Connect Contact Heart Rate Cables.
A. Locate contact heart rate wire exiting from
the right handrail. See Figure 11.
B. Plug heart rate cable into socket in main
frame.
C. Locate contact heart rate wire exiting from
the left handrail.
D. Plug heart rate cable into socket in main
frame.
10. Attach the water bottle holder.
A. Hold the water bottle holder (#3) with two
hands and gently pull outward and
continue to pull (hold open) during step
10B. See Figure 12.
B. Place the water bottle holder (#3) over the frame with the larger side outside of the frame as
shown in Figure 12.
NOTE: Water bottle holder may be placed on either side.
C. Using a Phillips head screwdriver, attach the water bottle holder (#3) to the frame with the two
8-16-18 x 0.75 screws (#14). See Figure 13. NOTE: Do not overtighten.
Figure 12
Figure 11
Figure 13
#3
#14
Heart Rate Cable
Main Frame
Socket
