Lift and move unit
1. Remove large bolts and shipping supports. Keep package material on linkage arms at this time.
This will protect the paint from scratching during assembly.
2. Grasp each rear support leg firmly and lift with one person on each side.
3. Lift the lower rear support legs so the front transport wheels are able to roll on floor.
Use proper lifting methods.
4. Move unit to intended location.
5. Lower rear support legs.

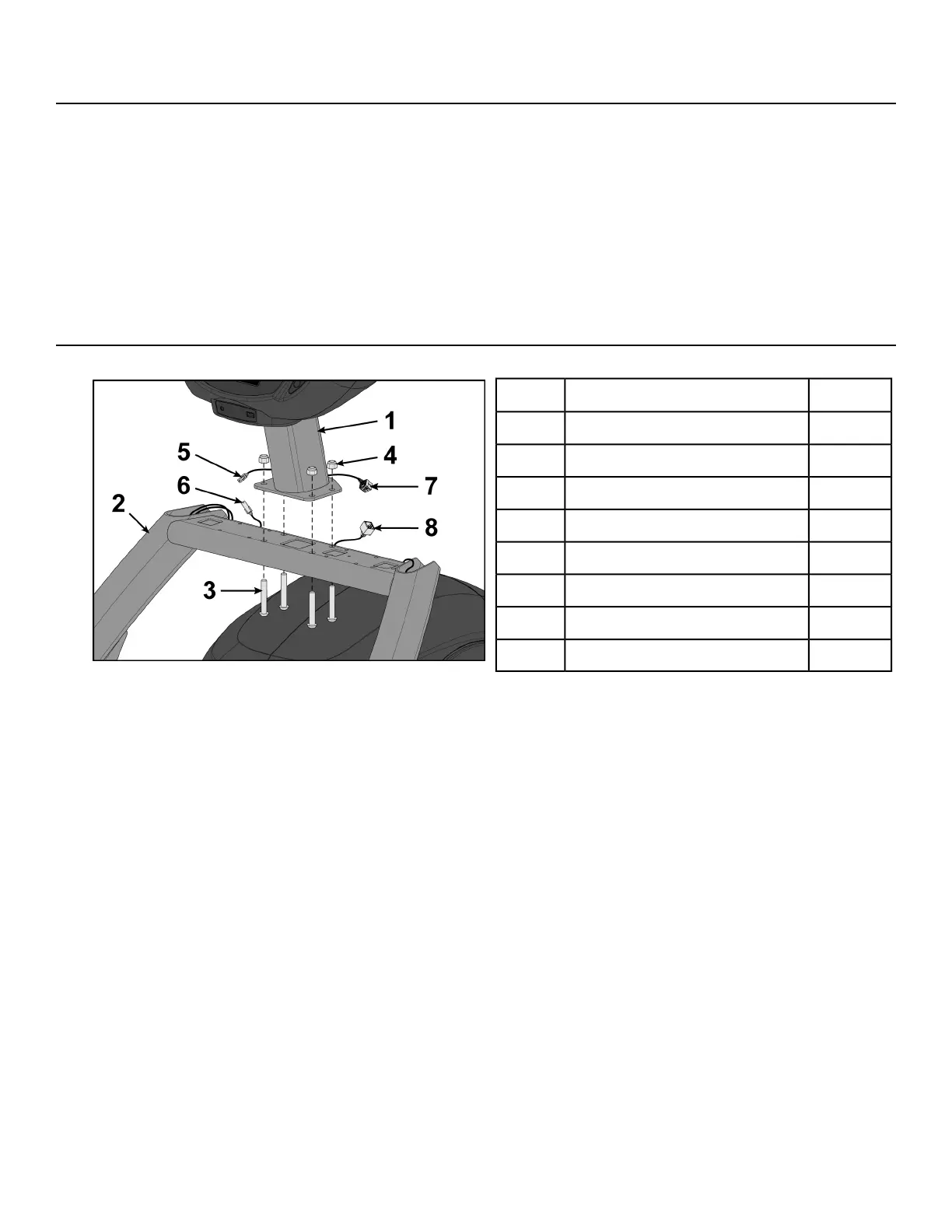

Install console assembly
1. Place the console into position on the frame. Do not pinch cables while lowering the console.
QtyDescription
1Console1
1Frame2
4Bolts3
4Locknuts4
1Upper heart rate cable5
1Lower heart rate cable6
1Upper display cable7
1Lower display cable8
2. Insert (from underneath) the four bolts into the frame and console.
3. Thread the four locknuts onto the bolts by hand.
4. Tighten the four bolts and locknuts with a 7/32” Allen wrench and a 9/16” open-end wrench.
5. Plug the upper heart rate cable into the lower heart rate cable.
6. Plug the upper display cable into the lower display cable.
Page 30 of 83
Cybex 626A/626AT, 627A/627AT Arc Trainer Part Number 5626-4 J
