Cygnus
MR
500
Taximeter User M
anual
2
2
The MR500 T
aximeter

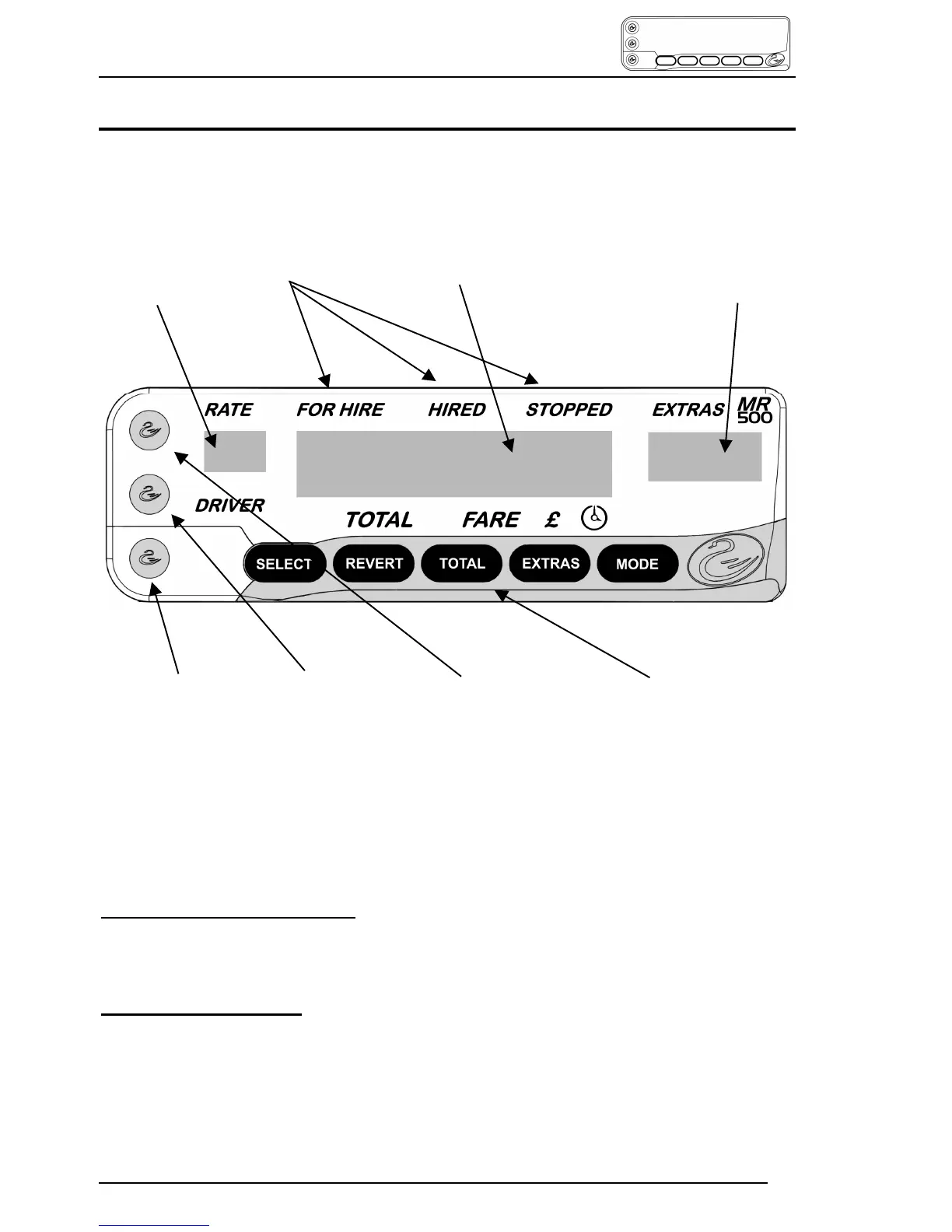

Figure 1: Fron
t Panel Features
2.1
This Sectio
n
This section contains the basics of operating the MR500
Taximeter.
There are many other features, which can be acces
sed by pressing the
buttons other than those shown here. Please con
sult later sections for
details of these.
Tariff Programming
Connector (Covered
by Seal Retainer).
Seal to prevent
unauthorised
tampering with the
Taximeter.
Seal to prevent
unauthorised
removal and
replacement of
the taximeter in
the vehicle.
Mode
Indicators.
Here Showing
that the meter
is in HIRED
mode.
“Rate
W
indow
”.
Used to show
the rate being
charged. Also
used for other
purposes.
“Fare Window”.
Shows the Fare
being charged.
Also used for
other purposes.
Operating Buttons:
SELECT
REVERT
MODE
TOTAL
EXTRAS
“Extras
W
indow”.
Shows the Extras
being charged. Also
used for other
purposes.
7
9
Table of Contents
Default Chapter
3
Table of Contents
3
1 About this Manual
7
2 The Mr500 Taximeter
8
This Section
8
Applying Power to the Meter
9
The Internal "Battery
9
On" and "Off" Modes - When the Taxi Is Not for Hire
10
FOR HIRE Mode - for When the Taxi Is for Hire
11
HIRED Mode - for Charging for Time And/Or Distance
12
STOPPED Mode - at the End of the Journey
13
Flowchart of the Mr500'S Basic Operations
14
Using the MR500 with a Receipt Printer
15
Loading a Receipt Definition
15
Printing a Receipt
15
Printing the Meter Totals
15
What Next
16
Flowchart of the Mr500'S Advanced Operations
17
3 Tariffs and Features Which Are Optional
18
Tariffs
18
Tariff Code Number
19
What Does All of this Mean
19
4 Pin Numbers
20
How Are PIN Numbers Formed
20
The Mr500'S Built-In PIN Numbers
20
The "Disable" PIN Number
20
The "Totals" PIN Number
21
The Clock Set PIN Number
21
User" PIN Numbers
21
Entering a PIN Number
21
Setting a New PIN Number
22
5 The Mr500'S "Info" Menu
23
Accessing the "Info" Menu
23
Navigating the "Info" Menu
24
Log On/Log off
26
Time Options
28
Time
29
Date
31
Disable Feature
32
Alarm Clock
34
Extended Disable Feature
35
User Options
37
Display Brightness
38
Sounder Setting
39
Automatic Turn off Feature
39
User PIN
40
The User PIN Submenus
42
Comms Options
44
UART0/1 Baud Rate
44
UART0/1 Parity
44
MDT Mode
44
Tariff and Software Information
45
Serial Number
46
Tariff Code
46
Next Code
47
Printer Code
47
Software Information Sub-Menu
48
Vehicle Options
49
Calibration
50
Pulse Check
51
Speedometer
52
Speed Alarms
53
Totals Config
55
Totals System
56
6 Totals and Conditional Access
57
The Totals Systems
57
The Totals Information Stored by the MR500
58
Totals "Banks
59
Reading the Totals
59
Displaying Journey Summary Information
61
Clearing the Totals
62
7 The Totals/Conditional Access Systems
63
Basic System
63
Log on with Totals PIN
64
8 Other Features
65
Totalling the Fare and Extras
65
The Time Charging Symbol
66
Speedometer and Journey Distance
66
Tariff Year" Indicator
68
Rate Selection
68
Movement Warning in STOPPED Mode
69
Real Time Clock ("Calendar Control") Override
69
9 Messages/Glossary
71
10 Specifications
74
11 Mr500 "Alphabet
75
12 List of Figures
76
13 Index
78
