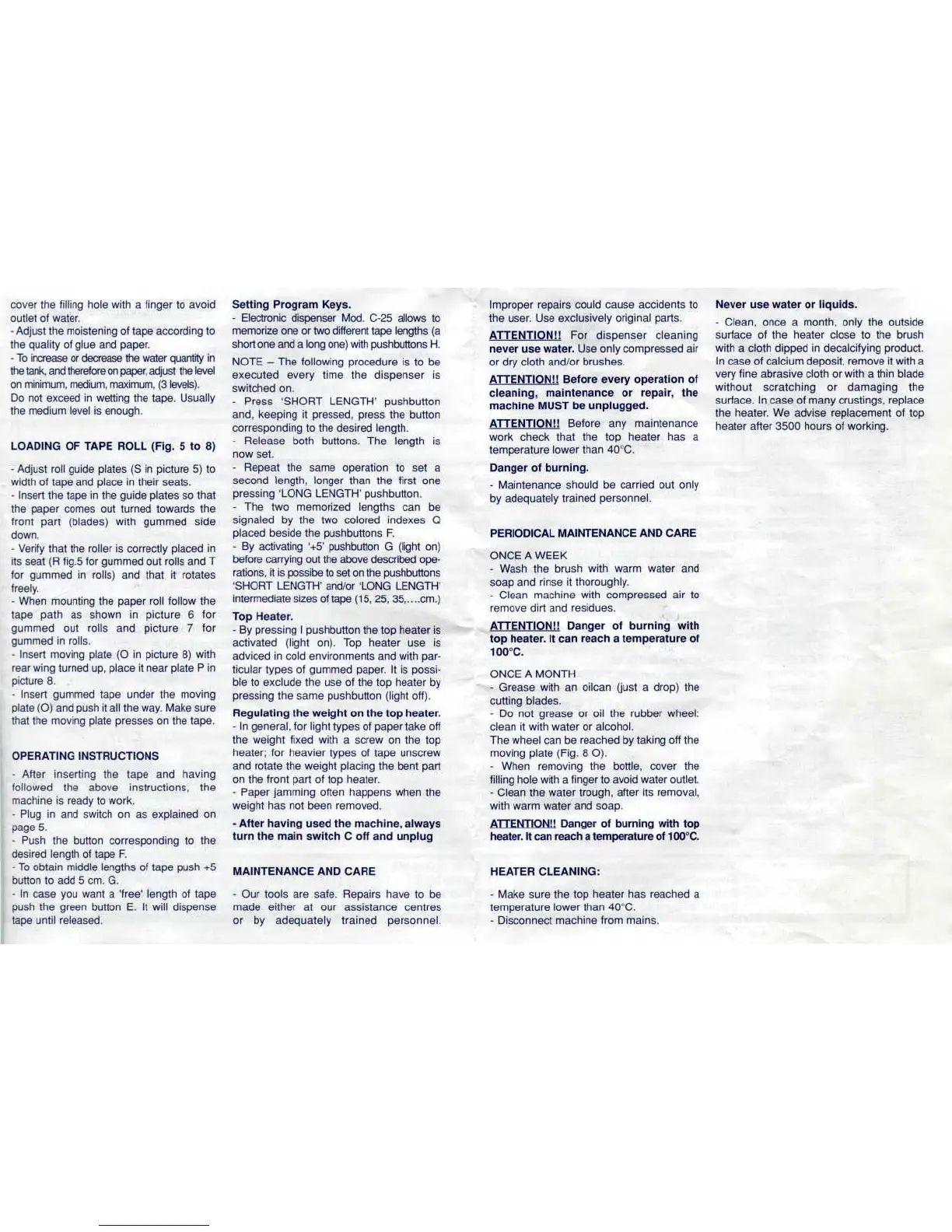

cover
the
filling hole with
a
finger
to
avoid
outlet
of
water.
-
Adjust
the
moistening
of
tape according
to
the
quality
of
glue
and
paper.
-
To
increase
or
decrease
the
water quantity
in
the
tank,
and
therefore
on
paper, adjust
the
level
on
minimum, medium, maximum,
(3
levels).
Do
not
exceed
in
wetting
the
tape. Usually
the
medium
level
is
enough.
LOADING
OF
TAPE ROLL (Fig.
5 to 8)
-
Adjust
roll
guide plates
(S in
5) to
width
of
tape
and
place
in
their seats.
-
Insert
the
tape
in the
guide plates
so
that
the
paper
comes
out
turned towards
the
front
part (blades) with gummed
side
down.
-
Verify
that
the
roller
is
correctly placed
in
its
seat
(R
fig.5
for
gummed
out
rolls
and T
for
gummed
in
rolls)
and
that
it
rotates
freely.
-
When mounting
the
paper
roll
follow
the
tape path
as
shown
in
6 for
gummed
out
rolls
and
7 for
gummed
in
rolls.
-
Insert moving plate
(O in
8)
with
rear
wing turned
up,
place
it
near plate
P in
8.
-
Insert gummed tape under
the
moving
plate
(O) and
push
it all the
way. Make sure
that
the
moving plate presses
on the
tape.
OPERATING
INSTRUCTIONS
-
After
inserting
the
tape
and
having
followed
the
above instructions,
the
machine
is
ready
to
work.
-
Plug
in and
switch
on as
explained
on
page
5.
-
Push
the
button corresponding
to the
desired
length
of
tape
F.
-
To
obtain middle lengths
of
tape push
+5
button
to add 5 cm. G.
-
In
case
you
want
a
'free
1
length
of
tape
push
the
green button
E. It
will dispense
tape
until released.
Setting Program Keys.
-
Electronic dispenser Mod. C-25 allows
to
memorize
one or two
different
tape lengths
(a
short
one and a
long one)
with
pushbuttons
H.
NOTE
- The
following procedure
is to be
executed every time
the
dispenser
is
switched
on.
-
Press
'SHORT
LENGTH'
pushbutton
and,
keeping
it
pressed, press
the
button
corresponding
to the
desired length.
-
Release both buttons.
The
length
is
now
set.
-
Repeat
the
same operation
to set a
second length, longer than
the
first
one
pressing
'LONG
LENGTH'
pushbutton.
-
The two
memorized lengths
can be
signaled
by the two
colored indexes
Q
placed
beside
the
pushbuttons
F.
-
By
activating
'+5'
pushbutton
G
(light
on)
before
carrying
out the
above described ope-
rations,
it is
possibe
to set on the
pushbuttons
'SHORT
LENGTH'
and/or
'LONG
LENGTH'
intermediate sizes
of
tape
(15,
25,
35,....cm.)
Top
Heater.
-
By
pressing
I
pushbutton
the top
heater
is
activated (light on).
Top
heater
use is
adviced
in
cold environments
and
with par-
ticular types
of
gummed paper.
It is
possi-
ble to
exclude
the use of the top
heater
by
pressing
the
same pushbutton (light off).
Regulating
the
weight
on the top
heater.
-
In
general,
for
light types
of
paper take
off
the
weight fixed with
a
screw
on the top
heater;
for
heavier types
of
tape unscrew
and
rotate
the
weight placing
the
bent part
on the
front
part
of top
heater.
-
Paper jamming often happens when
the
weight
has not
been removed.
-
After
having used
the
machine, always
turn
the
main switch
C off and
unplug
MAINTENANCE
AND
CARE
-
Our
tools
are
safe. Repairs have
to be
made either
at our
assistance centres
or
by
adequately trained personnel.
Improper repairs could cause accidents
to
the
user.
Use
exclusively original
parts.
ATTENTION!!
For
dispenser cleaning
never
use
water.
Use
only compressed
air
or
dry
cloth and/or brushes.
ATTENTION!!
Before every operation
of
cleaning,
maintenance
or
repair,
the
machine MUST
be
unplugged.
ATTENTION!!
Before
any
maintenance
work
check that
the top
heater
has a
temperature lower than 40°C.
Danger
of
burning.
-
Maintenance should
be
carried
out
only
by
adequately trained personnel.
PERIODICAL MAINTENANCE
AND
CARE
ONCE
A
WEEK
-
Wash
the
brush with warm water
and
soap
and
rinse
it
thoroughly.
-
Clean machine with compressed
air to
remove
dirt
and
residues.
ATTENTION!!
Danger
of
burning with
top
heater.
It can
reach
a
temperature
of
100°C.
ONCE
A
MONTH
-
Grease with
an
oilcan (just
a
drop)
the
cutting
blades.
-
Do not
grease
or oil the
rubber wheel:
clean
it
with water
or
alcohol.
The
wheel
can be
reached
by
taking
off the
moving plate (Fig.
8 O).
-
When removing
the
bottle, cover
the
filling
hole with
a
finger
to
avoid water outlet.
-
Clean
the
water trough, after
its
removal,
with warm water
and
soap.
ATTENTION!!
Danger
of
burning with
top
heater.
It can
reach
a
temperature
of
100°C.
HEATER
CLEANING:
-
Make sure
the top
heater
has
reached
a
temperature lower than 40°C.
-
Disconnect machine from mains.
Never
use
water
or
liquids.
-
Clean, once
a
month, only
the
outside
surface
of the
heater close
to the
brush
with
a
cloth
dipped
in
decalcifying product.
In
case
of
calcium deposit, remove
it
with
a
very
fine
abrasive
cloth
or
with
a
thin blade
without scratching
or
damaging
the
surface.
In
case
of
many crustings, replace
the
heater.
We
advise replacement
of top
heater
after
3500 hours
of
working.
