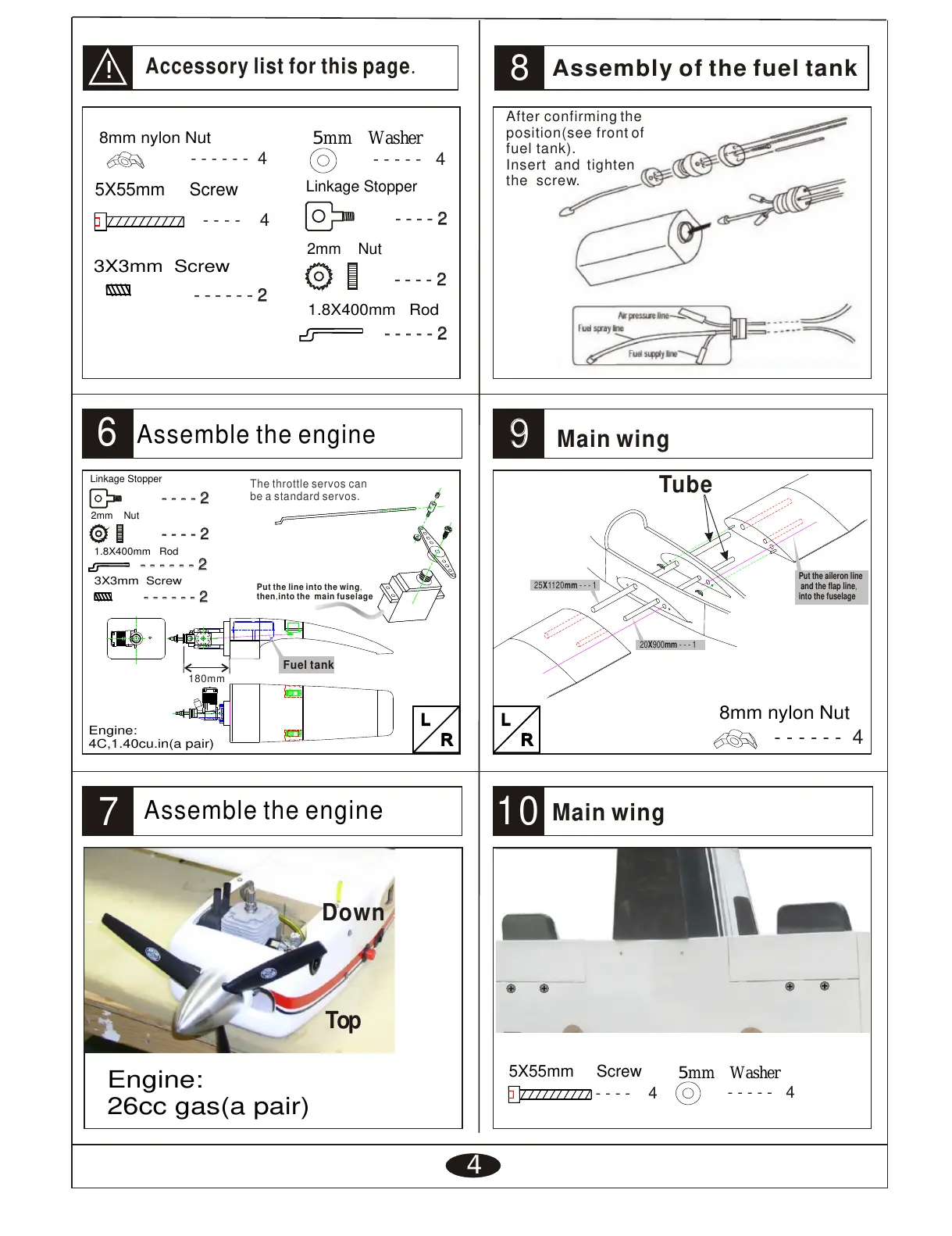

CYmodel CESSNA 310 - Assemble 4 C Engine; Assemble 26 cc Gas Engine; Assemble Fuel Tank; Main Wing Assembly Part 1

!
8
7
10
999
4
6
Accessory list for this page.
Tube
Main wing
1.8X400mm Rod
- - - - - - 2- - - - - - 2- - - - - - 2
Linkage Stopper
2mm Nut
- - - - 2 - - - - 2 - - - - 2
- - - - 2 - - - - 2 - - - - 2
3X3mm Screw
- - - - - - 2 - - - - - - 2 - - - - - - 2
Main wing
The throttle servos can
be a standard servos.
5X55mm Screw
- - - - 4
5mm Washer
- - - - - 4
Put the line into the wing,
then,into the main fuselage
Assemble the engine
After confirming the
position(see front of
fuel tank).
Insert and tighten
the screw.
Assembly of the fuel tank
180mm
Fuel tank
Engine:
4C,1.40cu.in(a pair)
Assemble the engine
Engine:
26cc gas(a pair)
Down
Top
25X1120mm - - - 1
20X900mm - - - 1
Put the aileron line
and the flap line,
into the fuselage
8mm nylon Nut
- - - - - - 4
5X55mm Screw
- - - - 4
5mm Washer
- - - - - 4
1.8X400mm Rod
- - - - - 2 - - - - - 2 - - - - - 2
Linkage Stopper
2mm Nut
- - - - 2 - - - - 2 - - - - 2
- - - - 2 - - - - 2 - - - - 2
3X3mm Screw
- - - - - - 2 - - - - - - 2 - - - - - - 2
8mm nylon Nut
- - - - - - 4
