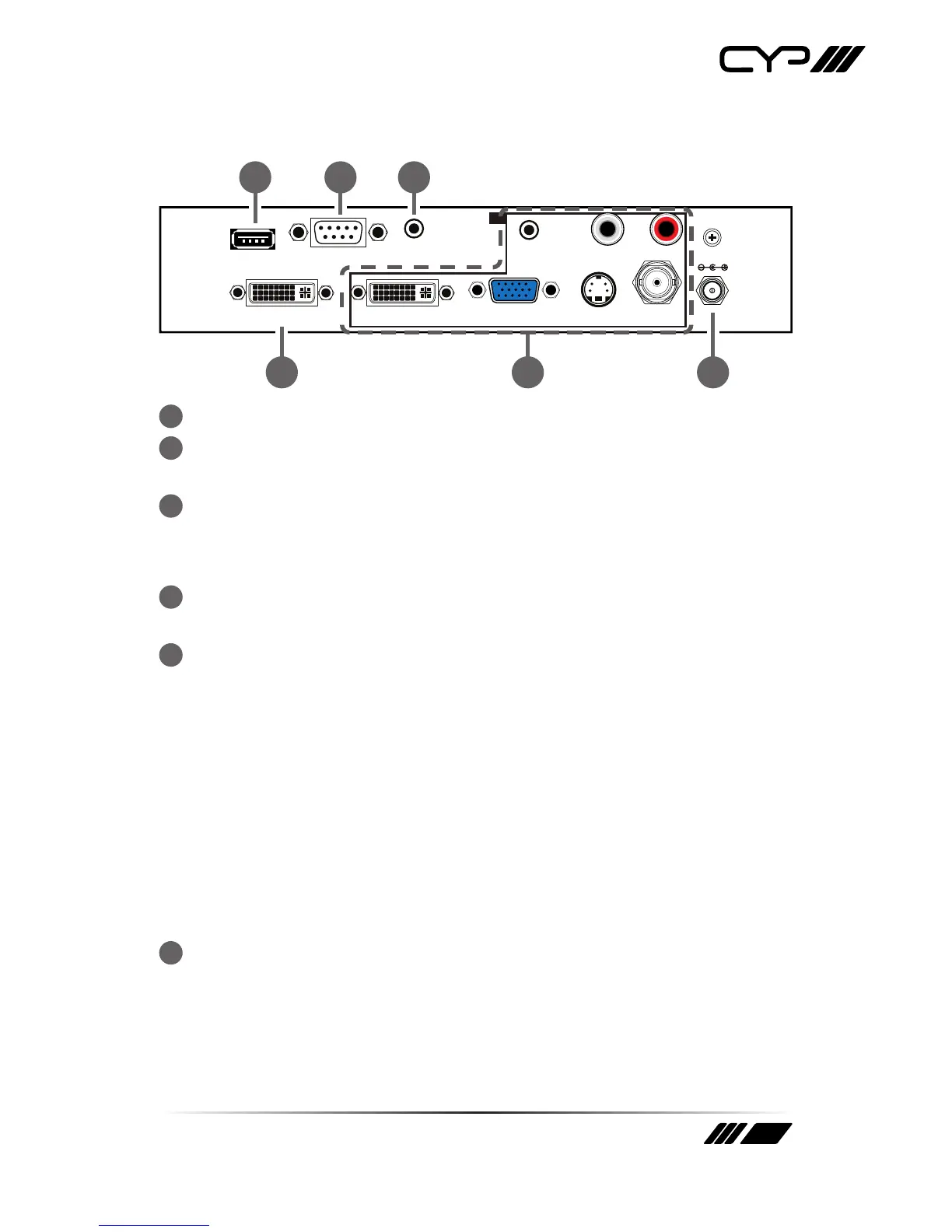

1
SERVICE: Reserved for manufacturer use only.
2
RS-232: Connect to a PC or RS-232 control system to control the
device with RS232 commands (see Sectionsm 6.5 and 6.6 for details).
3
DVI OUTPUT:
Connect to a DVI display (TV/monitor) for PC signal output or to an
HDMI display with an HDMI to DVI adaptor.
4
L/R OUT (3.5 mm mini-jack output): Connect to an amplier or
active speaker for audio output in analogue stereo.
5
IN (Inputs):
DVI: Connect to DVI source such as PC or Laptop or to a HDMI source
with a HDMI to DVI adaptor.
L/R: Connect to a source device's analogue (L/R) output with a 3.5 mm
mini-jack cable.
PC: Connect to a PC or Laptop with a D-Sub 15pin cable.
CV + L/R: Connect to a source device such as video/DVD player for
both video and audio.
SV + L/R: Connect to a source device such as video/DVD player for
both S-Video and audio.
6
DC 5V: Connect the 5 V DC power supply to the device and plug the
adaptor into an AC wall outlet.
