6. OPERATION CONTROLS AND FUNCTIONS

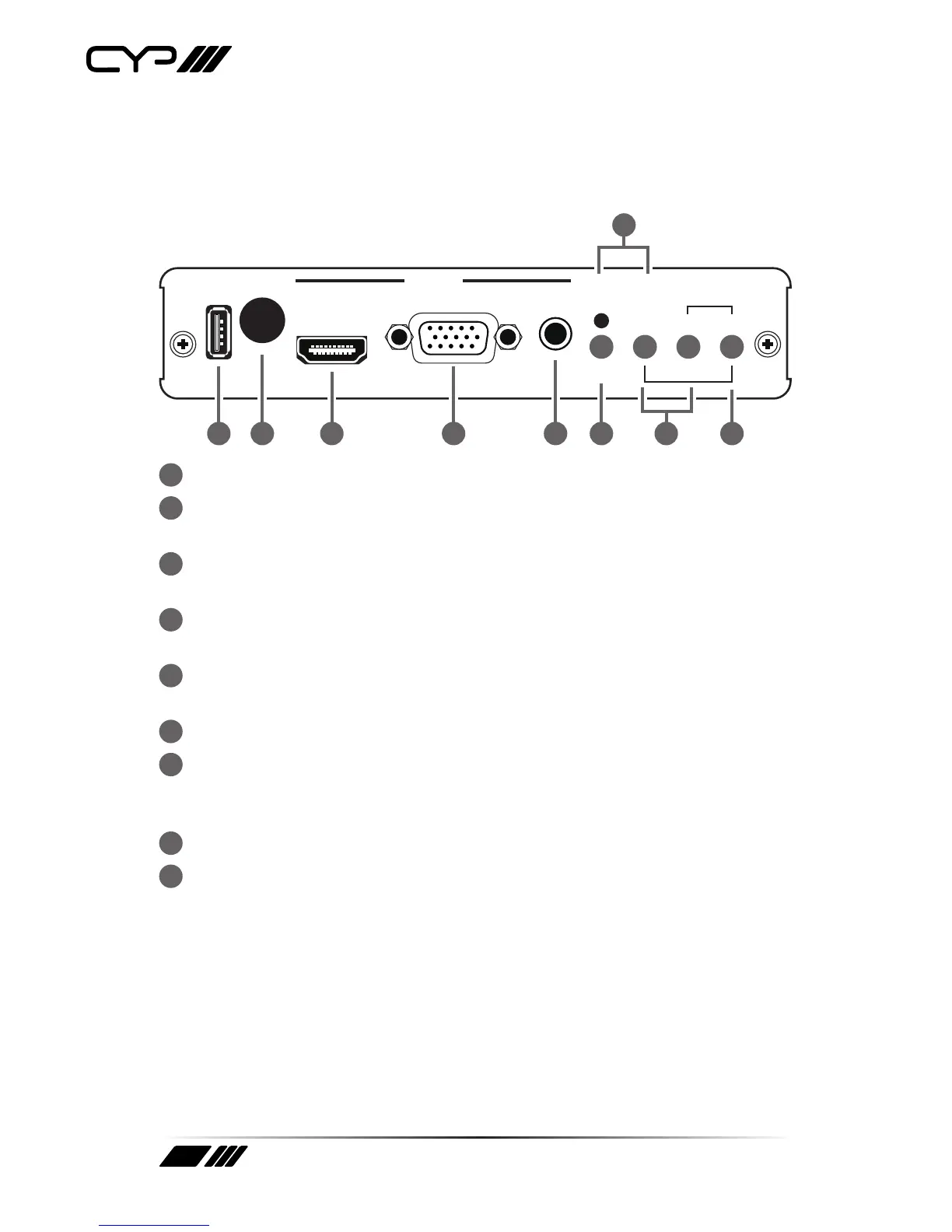

6.1 Front Panel
SERVICE
PCHDMIAUDIO
XGA
MENU
ENTER
- +
720P
INPUT
HDMI/
PC
INPUT
1 2 3 4 5 6 9
7
8
1
SERVICE: This port is reserved for rmware update only.
2
IR: IR Receiver window (accepts the remote control signal of this
device only).
3
HDMI: Connect to source equipment such as DVD/Video player for
video signal sending.
4
PC: Connect with PC/Laptop source equipment for signal input with
D-Sub 15 pin cable.
5
AUDIO: Connect to audio source equipment for L/R stereo audio
input with 3.5mm phone jack.
6
MENU: Press this button to enter into the OSD menu.
7
– INPUT & HDMI/PC LED: Press to select HDMI or PC source input.
When in HDMI mode the LED will illuminate in Red, when in PC mode
the LED will illuminated in Green.
8
-/+: Press these buttons to scroll down and up in the OSD selection.
9
ENTER: Press this button to conrm the selection. Press this button
together with [–] key to switch output timing to 720p@60 instantly.
Press this button together with [+] key to switch output timing to XGA
(1024x768) instantly.
