7. Operation Controls and Functions

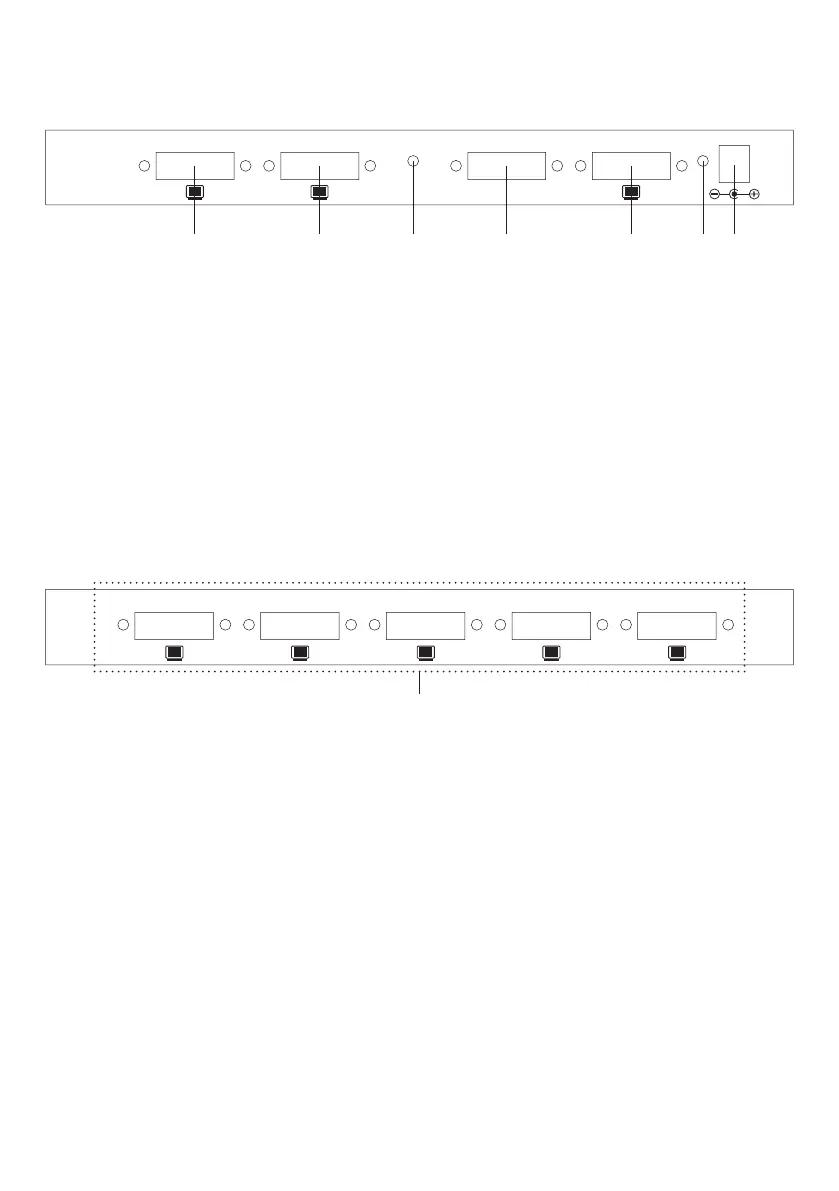

7.1 Front Panel
① ① ② ③ ① ④ ⑤
DC 5V
DVI OUT POWER
1
DVI OUT
8
DVI OUT
7
DVI INSYNC
①
DVI OUT 7/8/1: These slots are to connect to the displays with DVI cables.
②
SYNC LED: This LED will illuminate in RED when the source signal is
connected and detected by the unit.
③
DVI IN: This slot is to connect with input source equipment such as graphic
card or PC for input signal sending.
④
POWER LED: This LED will illuminate when the power is connected with
power supply.
⑤
DC 5V: Plug the 5V DC power supply into the unit and connect the
adaptor to AC wall outlet.
7.2 Rear Panel
①
DVI OUT
2
DVI OUT
3
DVI OUT
4
DVI OUT
5
DVI OUT
6
①
4
