CYP QU-18S User Manual

9

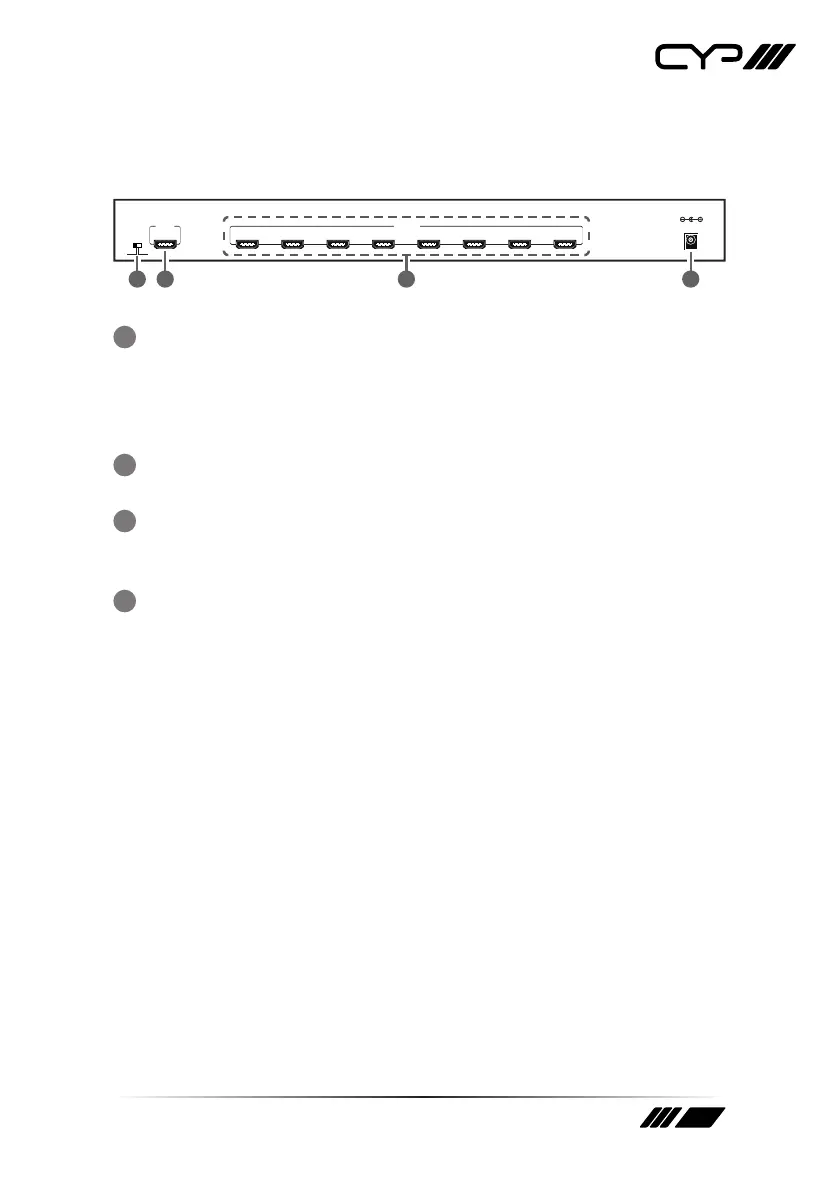

6.2 Rear Panel
1
HDMI IN
DC 5V
12345678
EDID
STD TV
HDMI OUT
1 2 3 4
1
EDID Control Switch: Default factory setting is TV. Switch to STD to
use the build-in EDID if the display has problems. When switched to
TV mode, the unit will detect the first HDMI output source’s EDID and
store it in the unit. If the first detected output source is DVI it will pass
to next source, until the first HDMI been detected.
2
HDMI Input: Connect the input port to the HDMI or DVI output of
your source equipment such as DVD player or set-top-box.
3
HDMI Outputs 1 to 8: Connect each of the output ports to the HDMI
display. When more than one output connected, the HDMI outputs
will simultaneously display the source video signal.
4
Power: Plug the 5V DC power supply into the splitter and connect the
adaptor to an AC wall outlet.
