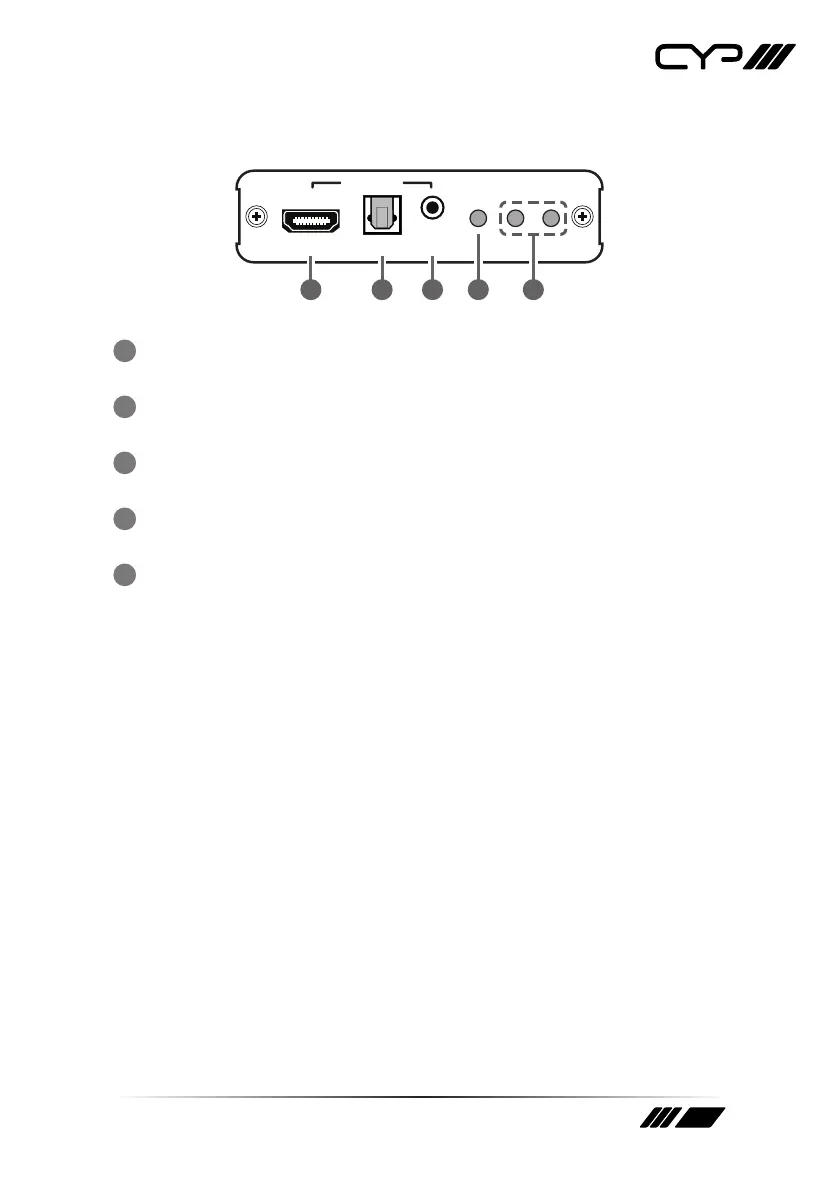

6.2 Rear Panel
HDMI AUDIO
MENU +
-
OPTICAL
OUTPUT
1 2 3 4 5
1
HDMI Output: Connect the HDMI output port to the HDMI input port
of your display such like HDTV.
2
Optical Output: Connect the optical output port to the digital audio
input port of your amplifier.
3
Audio Output: Connect the PC 3.5mm phone jack output port to the
analogue audio input port of your equipment.
4
Menu Button: Press the MENU button to bring up OSD operation
menu. (See section “4. OSD Operation” for reference.)
5
+/- Button:
a. On the first tier of OSD menu, use + and – buttons to move up/
down the highlight item for selection.
b. Once the desired option is selected, use + and – buttons to toggle
between setting values.
Note: Outside of the OSD menu, press [−] button to active the Auto Adjust
function. The screen will show Auto Adjust.
-
Press [MENU] and then minus [ − ] to switch to 480p mode.
-
Press [MENU] and then plus + ] to switch to XGA mode.
