D.A.S. DR 508A - Line Drawings; Specifications

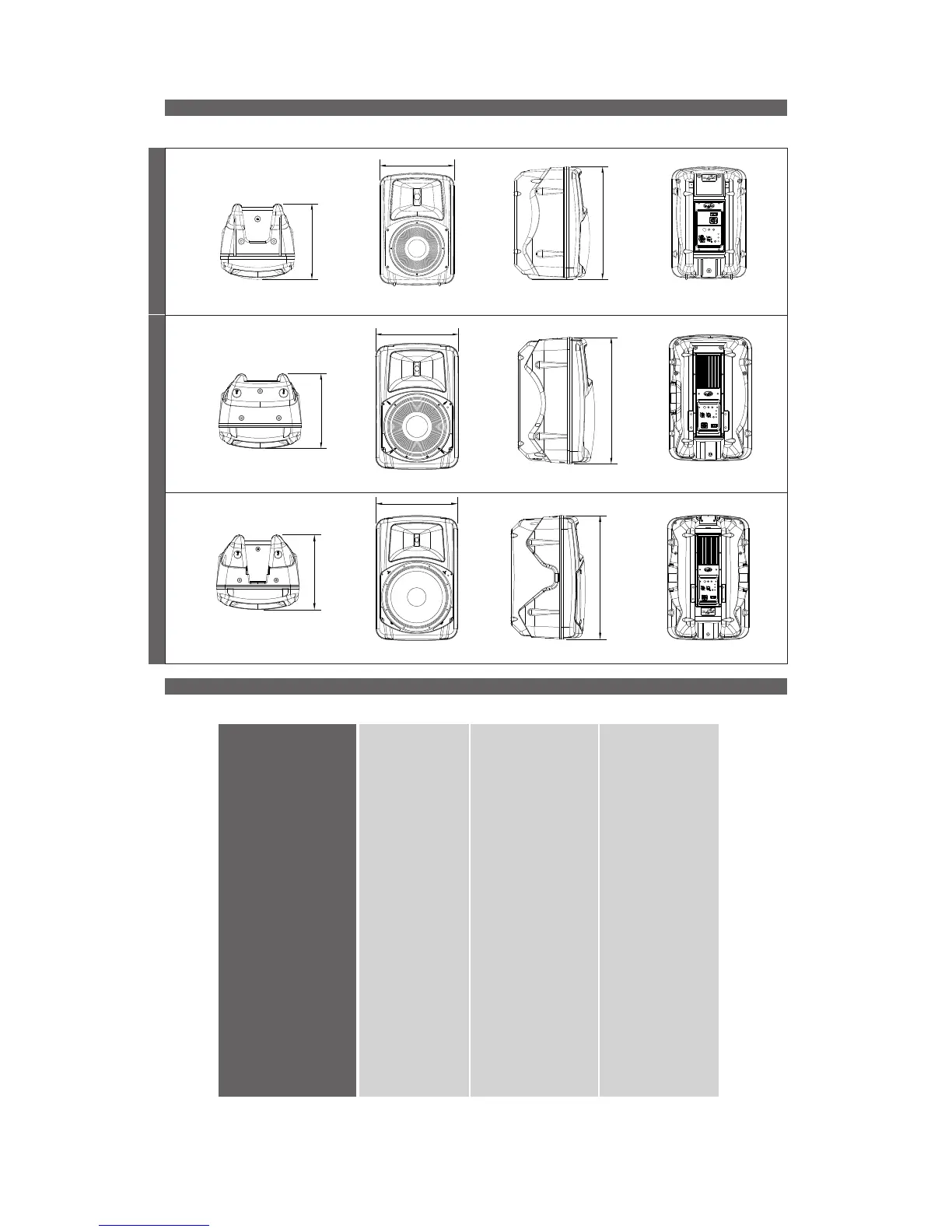

LINE DRAWINGS
ALL DIMENSIONS IN MILIMETERS
11
DR 512ADR 515A
Bottom View Right ViewFront View
Rear View
Bottom View
Right View
Front View
Rear View
Manual del Usuario / DR-500 active / User’s Manual
DR 508A
Rear View
Right View
Front View
Top View
SPECIFICATIONS
Model
Power Amplifier
Input Type
Input Impedance
Sensitivity
Frequency Range (-10 dB)
HF Horn Coverage Angles (-6 dB)
Maximum Peak SPL at 1m
Transducers/ Replacement Parts
Enclosure Material
Color/Finish
Connectors
AC Power Requeriments
Dimensions (H x W x D)
Weight
Accessories
DR 512A
1000 W peak
500 W continuous
(Class D Bi-amplified)
Balanced Differential Line
Line: 20 kohms
Line: 1.95V (+8dBu)
50 Hz - 20 kHz
90º x 45º
131 dB
LF: 12Mi / GM 12Mi
HF: M-34 / GM M-34
Polypropylene
Black
INPUT: Female XLR
LOOP THRU: Male XLR
AC INPUT: Male IEC
115V, 2.4A, 50 Hz / 60 Hz
230V, 1.2A, 50 Hz / 60 Hz
62 x 40 x 37 cm
24 x 16 x 14.5 in
18.1 kg (39.9 lb)
ANL-1
AX-115
FUN-DS-112
TRD-2
TRD-6
DR 508A
1000 W peak
500 W continuous
(Class D Bi-amplified)
Balanced Differential Line
Line: 20 kohms
Line: 1.95V (+8dBu)
60 Hz - 20 kHz
90º x 45º
122 dB
LF: 8C / GM 8C
HF: M-34 / GM M-34
Polypropylene
Black
INPUT: Female XLR
LOOP THRU: Male XLR
AC INPUT: Male IEC
115V, 2.4A, 50 Hz / 60 Hz
230V, 1.2A, 50 Hz / 60 Hz
43 x 30 x 30 cm
18 x 12 x 12 in
11.4 kg (25.1 lb)
ANL-1
AX-M
FUN-DS-108
TRD-2
TRD-6
DR 515A
1000 W peak
500 W continuous
(Class D Bi-amplified)
Balanced Differential Line
Line: 20 kohms
Line: 1.95V (+8dBu)
45 Hz - 20 kHz
90º x 45º
131 dB
LF: 15Mi / GM 15Mi
HF: M-34 / GM M-34
Polypropylene
Black
INPUT: Female XLR
LOOP THRU: Male XLR
AC INPUT: Male IEC
115V, 3A, 50 Hz / 60 Hz
230V, 1.5A, 50 Hz / 60 Hz
71 x 46 x 42 cm
28 x 18 x 16.5 in
20.1 kg (44.3 lb)
ANL-1
AX-115
FUN-DS-115
TRD-2
TRD-6
300
453
304
400
610
361
454
694
409
