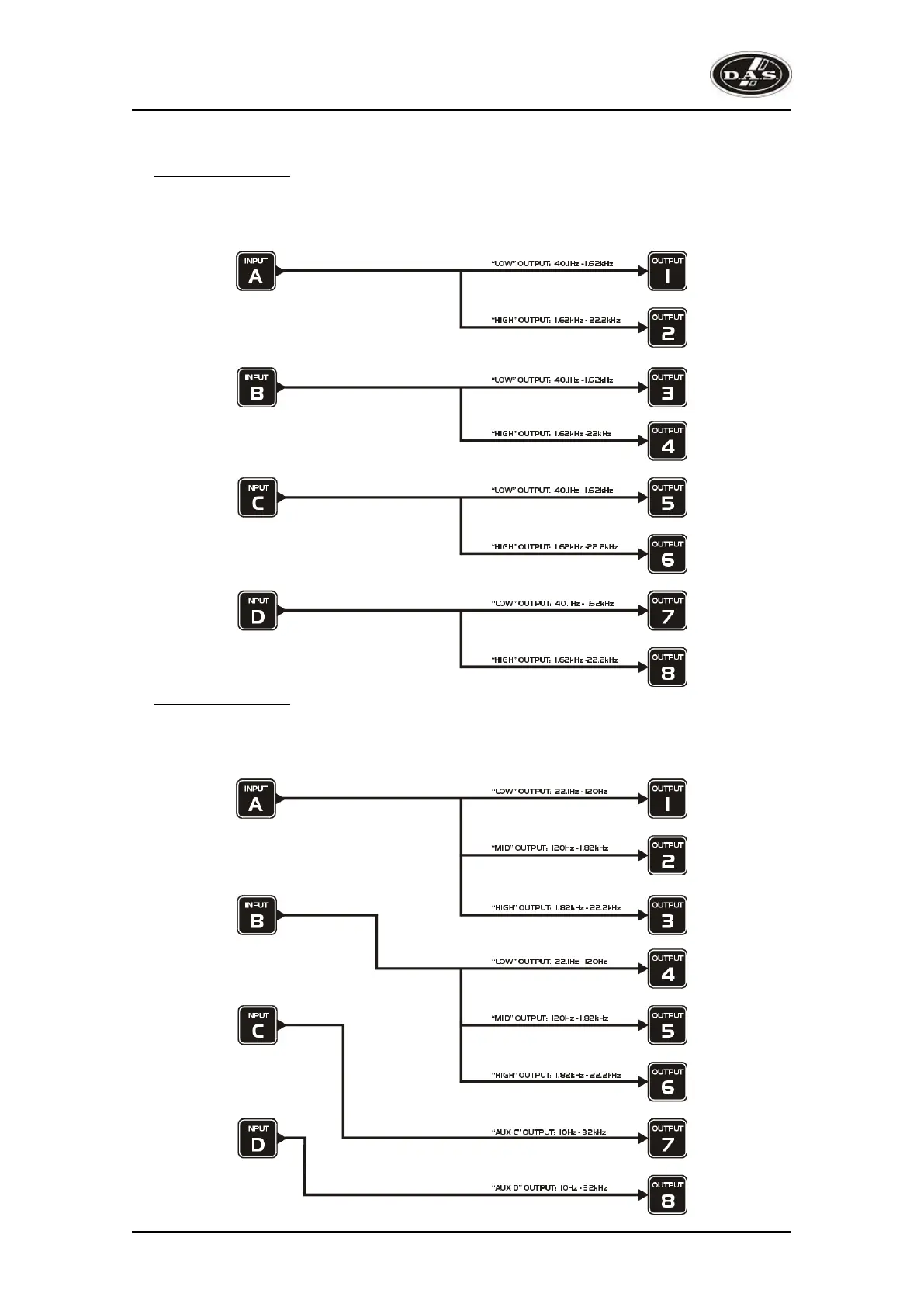

4 x 2 way crossover:
As shown, each input feeds a pair of outputs, odd numbers being the low frequency split, and even
numbers being the high part of the spectrum. Default suggested crossover frequencies are shown by each
output.
2 x 3 way crossover:
Inputs A and B feed three outputs each, with output 7 being fed from input C, and output 8 from input D.
Note the 'Aux' outputs are set to full range. Default suggested crossover frequencies are shown by each
output.
8
DSP-4080
User’s Manual
