D.A.S. LX-218CA User Manual

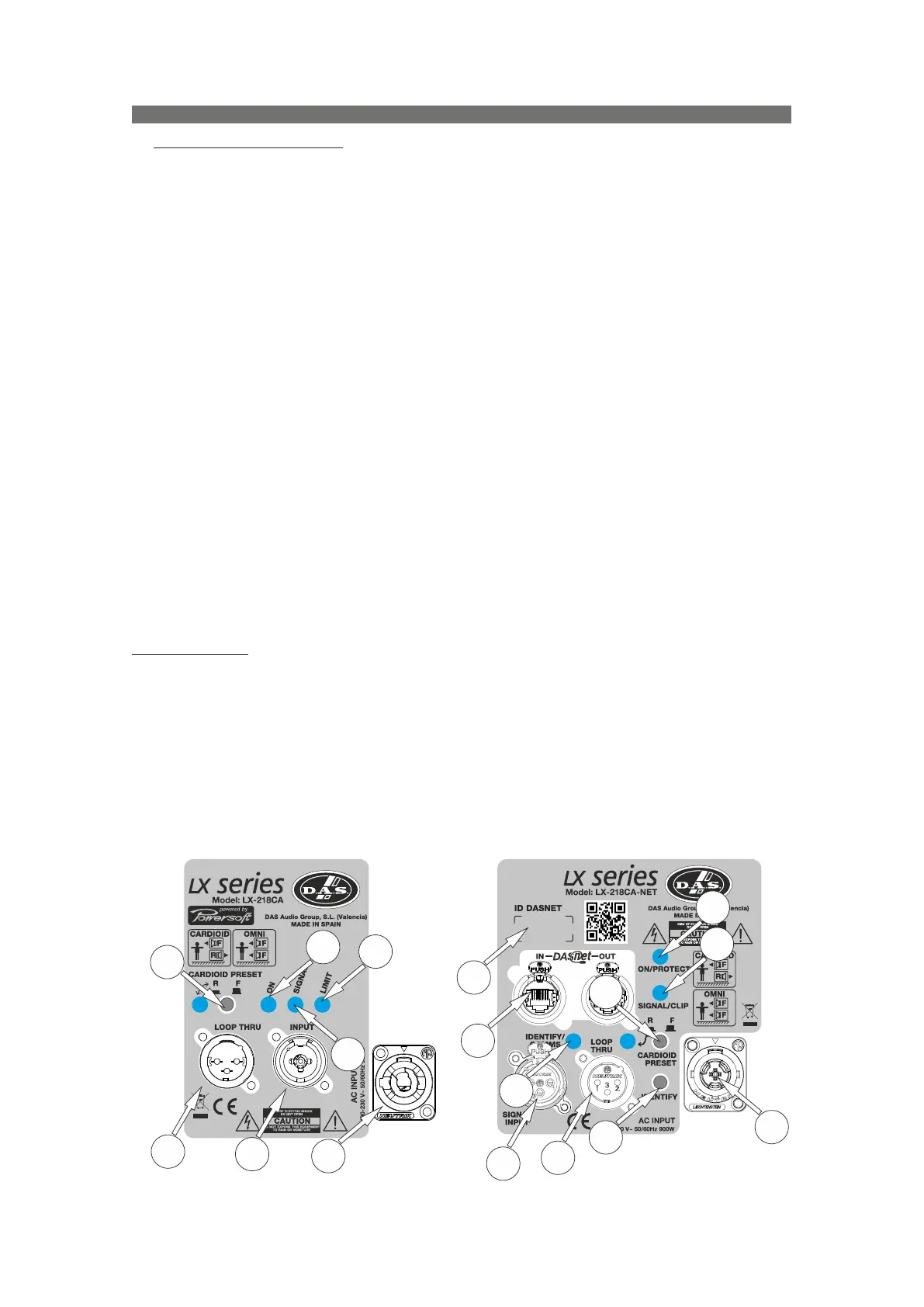

AMPLIFIER DESCRIPTION
LX-218CA vs LX-218CA-NET
8
1) SIGNAL INPUT :
XLR type input signal connectors. As the LOOP THRU connector, they are balanced with the following
pin assignments:
1=GND (Ground).
2=(+) Non inverted input.
3=(-) Inverted input.
2) LOOP THRU :
XLR type output signal connector for connecting several units together and sending them all the same
input signal.
3) LIMIT (only LX-218CA):
Red LED indicates amplifier saturation. Amplifier limiter indicator lights.
4) SIGNAL (only LX-218CA):
Green LED indicates signal presence.
4) SIGNAL / CLIP (only LX-218CA-NET):
Two color LED which indicates that there is signal presence if it shines green or indicates amplifier
saturation and the amplifier limiter is activated, if it shines red.
5) ON (only LX-218CA):
Green LED indicates that the unit is ON.
5) ON /PROTECT (only LX-218CA-NET):
Two color LED indicates that the unit is ON if it shines green and protection if it shines red.
6) CARDIOID PRESET :
Button for switching between two types of response: OMNIdirectional or CARDIOID.
7) AC INPUT (only LX-218CA):
PowerCon NAC3FCA connector to turn the unit ON or OFF (inserted, rotated and locked for ON). Only
use this equipment with an appropriate mains cord.
7) AC INPUT (only LX-218CA-NET):
PowerCon TRUE1 connector to turn the unit ON or OFF (inserted, rotated and locked for ON). Only use
this equipment with an appropriate mains cord.
Only LX-218CA-NET
8) IN/OUT :
TM
Neutrik EtherCon connectors for audio+data input/output with DASnet . With the output connector we
can interconnect several units.
9) IDENTIFY :
This push button allows to identify the unit.
10) IDENTIFY / COMMS :
Orange LED that shines flashing when we push IDENTIFY (to identify the unit) or blink faster if there is
TM
communication with DASnet .
11) ID DASNET :
TM
Label with identification number for DASnet .
TM
Note (only LX-218CA-NET): To "reset" without using DASnet press and hold the "CARDIOID PRESET"
button, while turning the PowerCon and turn on the power.
7
1
2
4
3
5
6
7
2
1
9
10
11
8
6
5
4
Manual del Usuario / LX series / User’s Manual
