D.A.S. LX-218CA User Manual

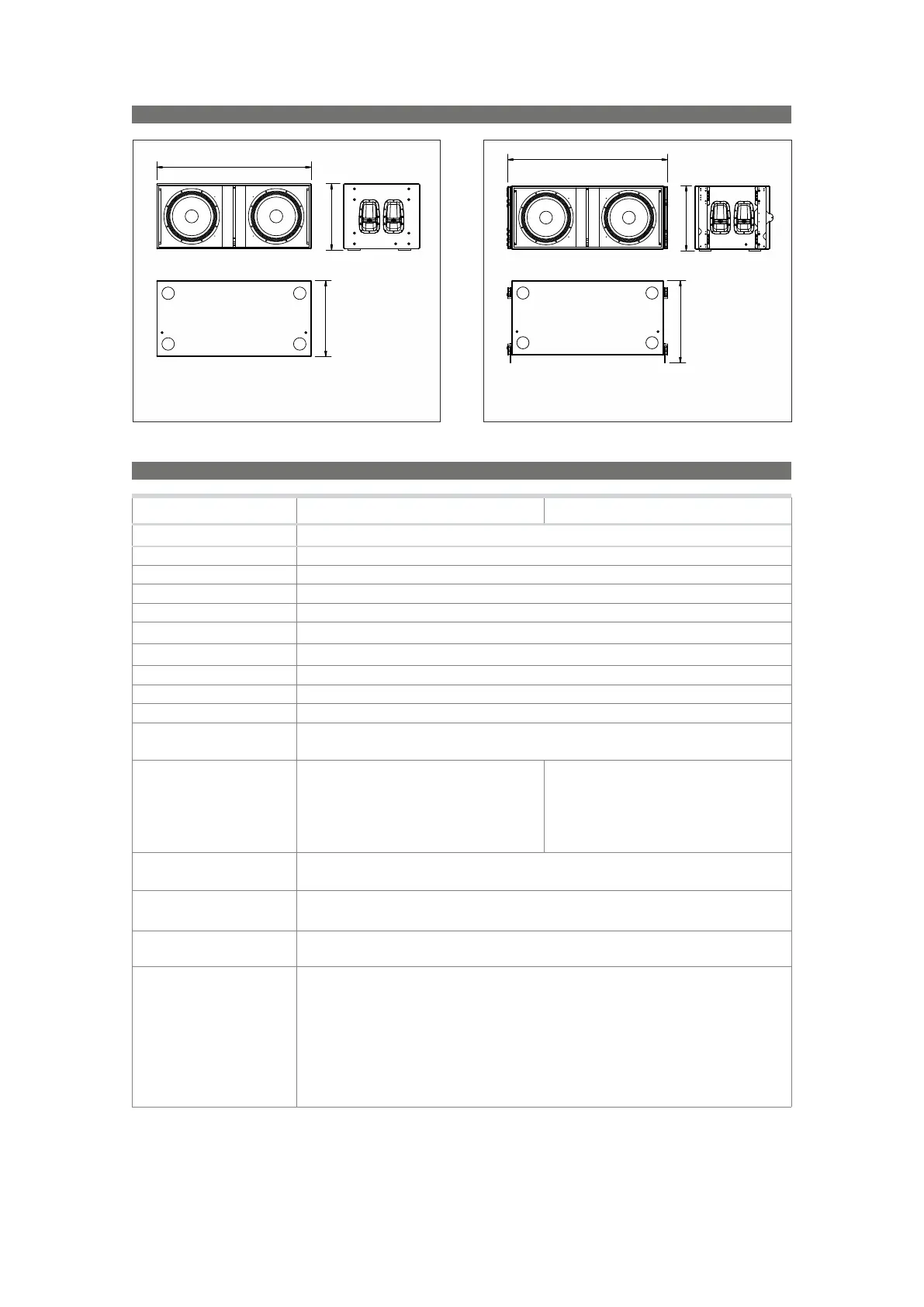

LINE DRAWINGS
7
LX-218CA / LX-218CA-NET LX-218CA-R / LX-218CA-R-NET
NOTE: All dimensions in millimeters.
1280
550
632
1350
550
696
SPECIFICATIONS
MODEL
Nominal LF Amplifier Power
Input Type
Input Impedance
Sensitivity
Frequency Range (-10 dB)
(1)
Rated Maximum Peak SPL at 1 m
(2)
Transducers/Replacement Parts
Enclosure Geometry
Enclosure Material
Color/Finish
Rigging System Splay Angles
Connectors
AC Power Requirements
Dimensions (H x W x D)
Weight
Accessories
Rectangular
Birch Plywood
LX-218CA / LX-218CA-R
LX-218CA-NET / LX-218CA-R-NET
2400 W
Balanced Differential Line
Line: 20 kohms
Line: 1.95 V (+8 dBu )
28 Hz - 100 Hz
142 dB
LF: 2 x 18LXN/GM-18LX
Black / ISO-flex Paint
Ground Stackable
Integrated in box design (”R” version)
Audio INPUT: Female XLR
Audio LOOP THRU: Male XLR
AC INPUT: powerCON
Audio INPUT: Female XLR
Audio LOOP THRU: Male XLR
Audio + Data INPUT: etherCON
Audio + Data LOOP THRU: etherCON
AC INPUT: powerCON TRUE1
Universal Mains, 80 – 260 V
(dual voltage), 900W
55x128x63.2 cm / 55x135x69.6 cm (”R” version)
22x51x24.9 in / 22x54x27.4 in (”R” version)
80.5 kg / 99.5 kg (”R” version)
177.1 lb / 218.9 lb (”R” version)
AX-AE50 Rigging Grid (”R” version)
AX-COMBO12 Rigging Adapter (”R” version)
KIT-R-LX218C Rigging Hardware Kit
KIT-W100 Caster Kit
PICKUP-AX-AE50 (”R” version)
PL-LX218C Dolly Panel (”R” version included)
PL-218CS Flat Bed Dolly
Notes: 1. Frequency range measured with Low Pass filter set up at 125Hz. Amplifier includes Variable Low pass filter from 100Hz to 160Hz.
2. Maximum calculated Peak SPL based on sensitivity and RMS power handling.
Manual del Usuario / LX series / User’s Manual

D.A.S. LX-218CA Specifications

General

Brand	D.A.S.
Model	LX-218CA
Category	Subwoofer
Language	English
