ANNEX II : DASnet cables
18
AL Shield
2 2

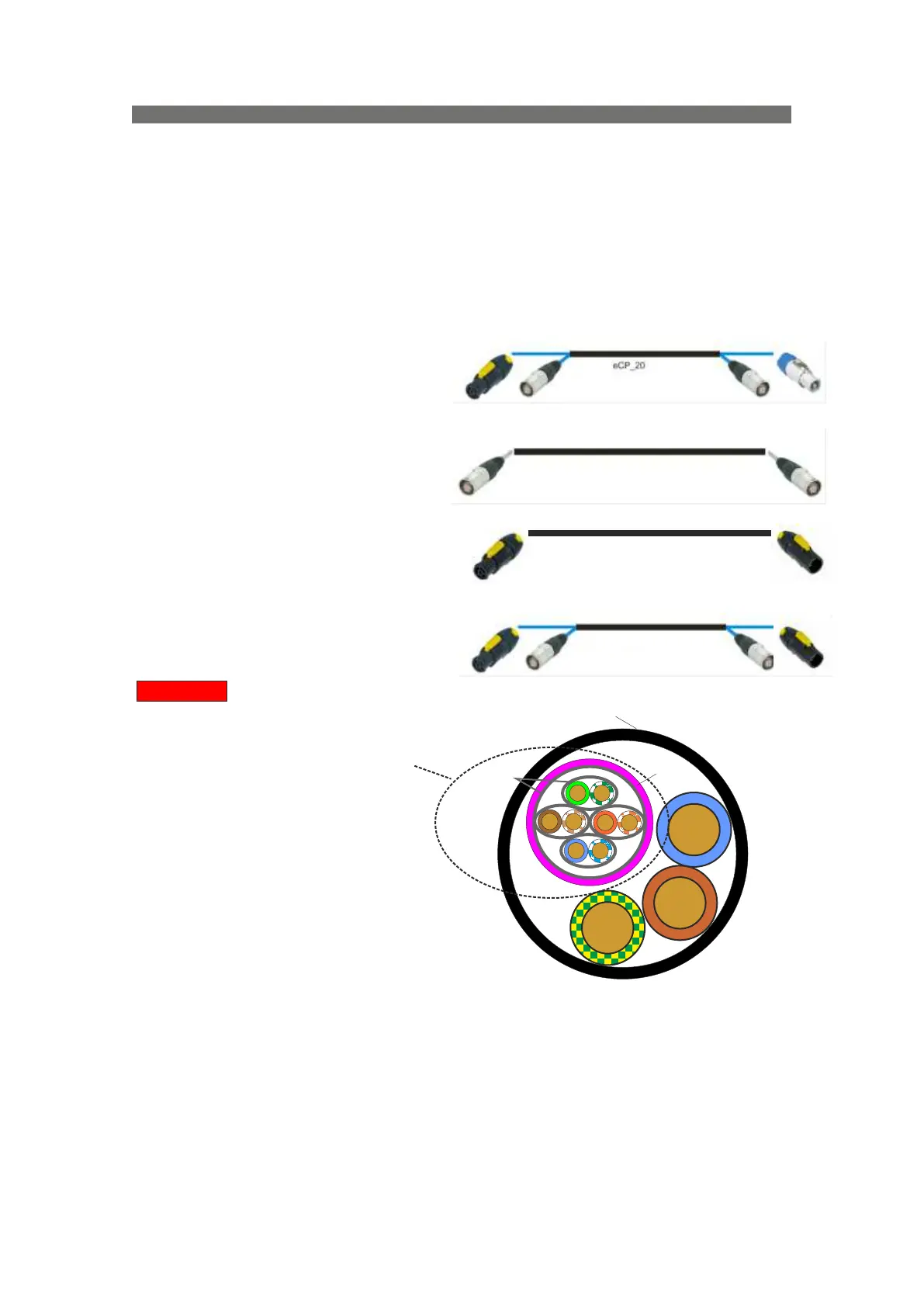

ecP_xx: Power cable 3x2,5mm + CAT7 4x (2 x 0,14mm )
Jacket
Jacket
The main feed cable eCP_xx
has the following structure:
STP CAT 7 cable with Aluminium
Shield for each individual pair and a
main aluminium Shield.
The main Shield has to be
soldered to the etherCon housing.
The eC_09 cable is a CAT5e
cable with global Aluminium Shield.
Important
The pin out of the EtherCon to XLR is the following on the eCP cables:
1 Orange-White Audio+ 2
2 Orange Audio- 3
3 Green-White Audio Earth 1
4 Blue
5 Blue-White
6 Green Data Earth 1
7 Brown-White Data- (A) 3
8 Brown Data+ (B) 2
etherCon XLR
Manual del Usuario / LX series / User’s Manual
With each system, cabling and patch panels are provided. It is very important to
use the system with the intended cables to prevent electromagnetic interferences
between the analog audio signal, the DASnet data and the power. Be sure to check
the specifications provided by the cable manufacturer. It is also especially important
when installing connectors yourself, to note that when termination is not accurate, a
cable will be unable to achieve its maximum performance and could have
interferences.
There are 4 different types of cables.
- The main feeds which include power and a STP, CAT7 cable. These cables are
named eCP_xx (xx refers to cable length).
- The links between cabinets (aero40A/Convert15A/LX-218CAnet), which are STP
CAT7 cables. Cable code eC_09
- Power Links between cabinets.Cable code Plink1_09
- Links for RoadNet series. Power+STP CAT7. eCPk_1/eCPk_5
