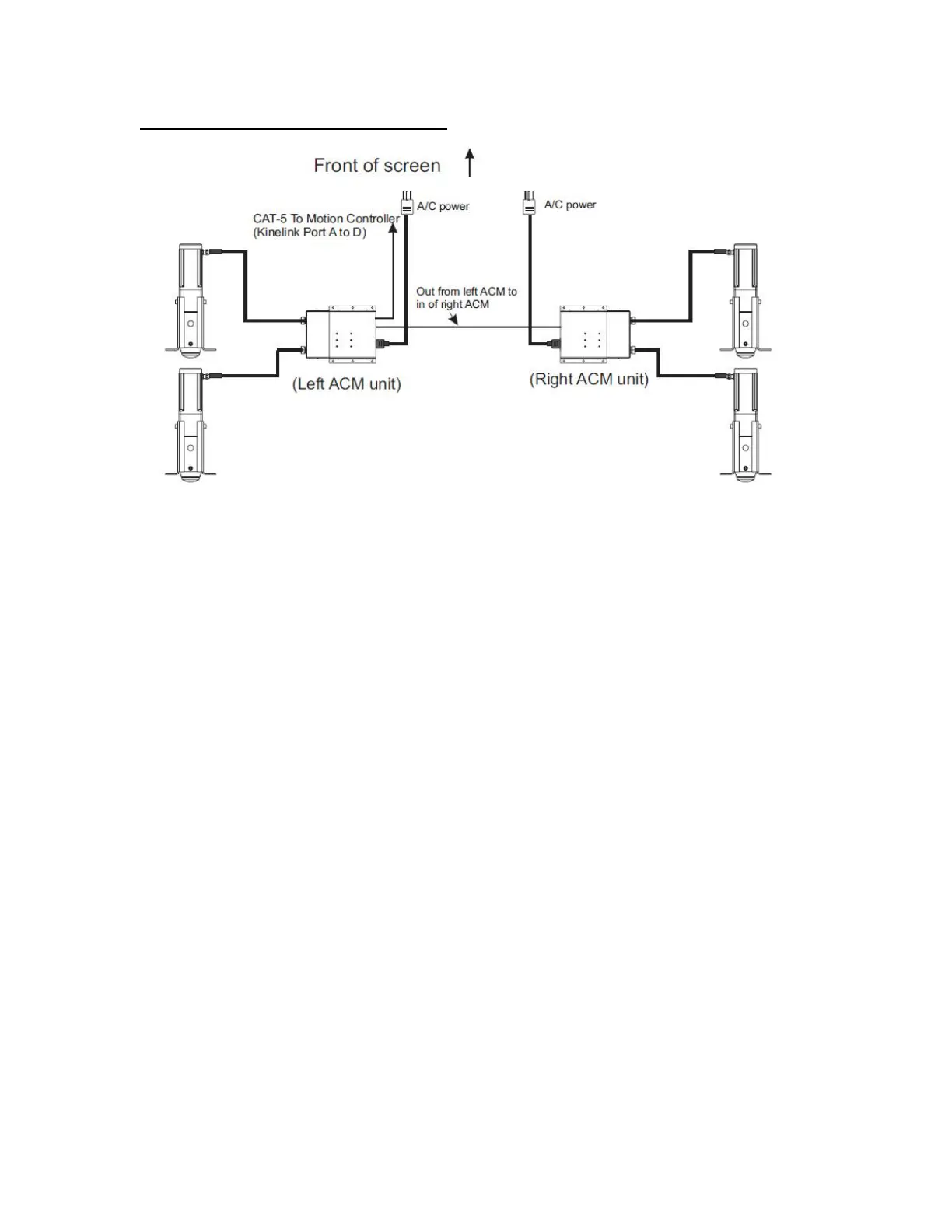

8- D-BOX 4250i/4400i Electrical diagramm
Note: Each time you will power-up the motion seat you will hear the motors locking themselves
up. This usually takes a few seconds unless the piston of either actuator has not been pulled in
completely at the last shutdown.
Note: When you have finished installing the actuators and the ACM in the seat, make sure that all
the cables (motor cables, power cables and Cat-5 cables) are properly secured. Also make sure
that none of the cables can rub against a moving part (such as the reclining mechanism) because
it may damage the insulation and make the product unsafe for use.
