D-Link AC3150 User Manual

104D-Link DIR-885L User Manual
Section 4 - Conguration
Virtual Server
Enter a name for the rule.
Enter the IP address of the computer on your local network that you
want to allow the incoming service to. Alternatively, select the device
from the drop-down menu.
Select the protocol of the trac to allow or deny (TCP, UDP, Both,
or Other).
If you entered Other above, enter the protocol number.
Enter the public port you want to open.
Enter the private port you want to open.
Use the drop-down menu to select the time schedule that the rule
will be enabled on. The schedule may be set to Always Enable, or
you can create your own schedules in the Schedules section (refer
to page 111).
Click OK when you are done.

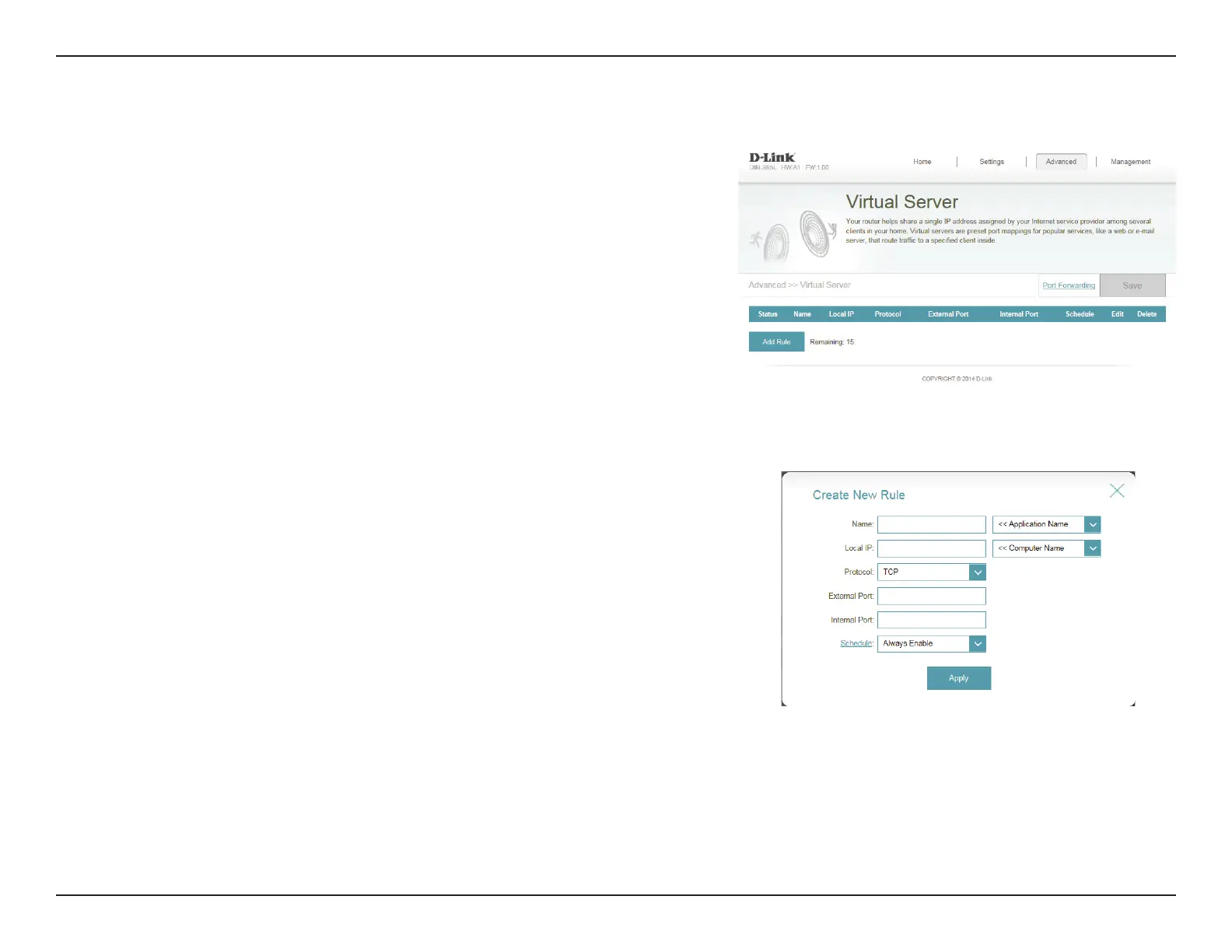

The virtual server allows you to specify a single public port on your router for
redirection to an internal LAN IP Address and Private LAN port. To congure the
virtual server, from the Port Forwarding page click Virtual Server. To return to the
main Port Forwarding page, click Port Forwarding.
If you wish to remove a rule, click on its trash can icon in the Delete column. If you
wish to edit a rule, click on its pencil icon in the Edit column. If you wish to create a
new rule, click the Add Rules button
. Click Save when you are done. If you edit or
create a rule, the following options will appear:
Name:
Local IP:
Protocol:
Protocol
Number:
External Port:
Internal Port:
Schedule:
