D-Link AirPlusXtremeG DI-624 User Manual

17
Using the Configuration Menu

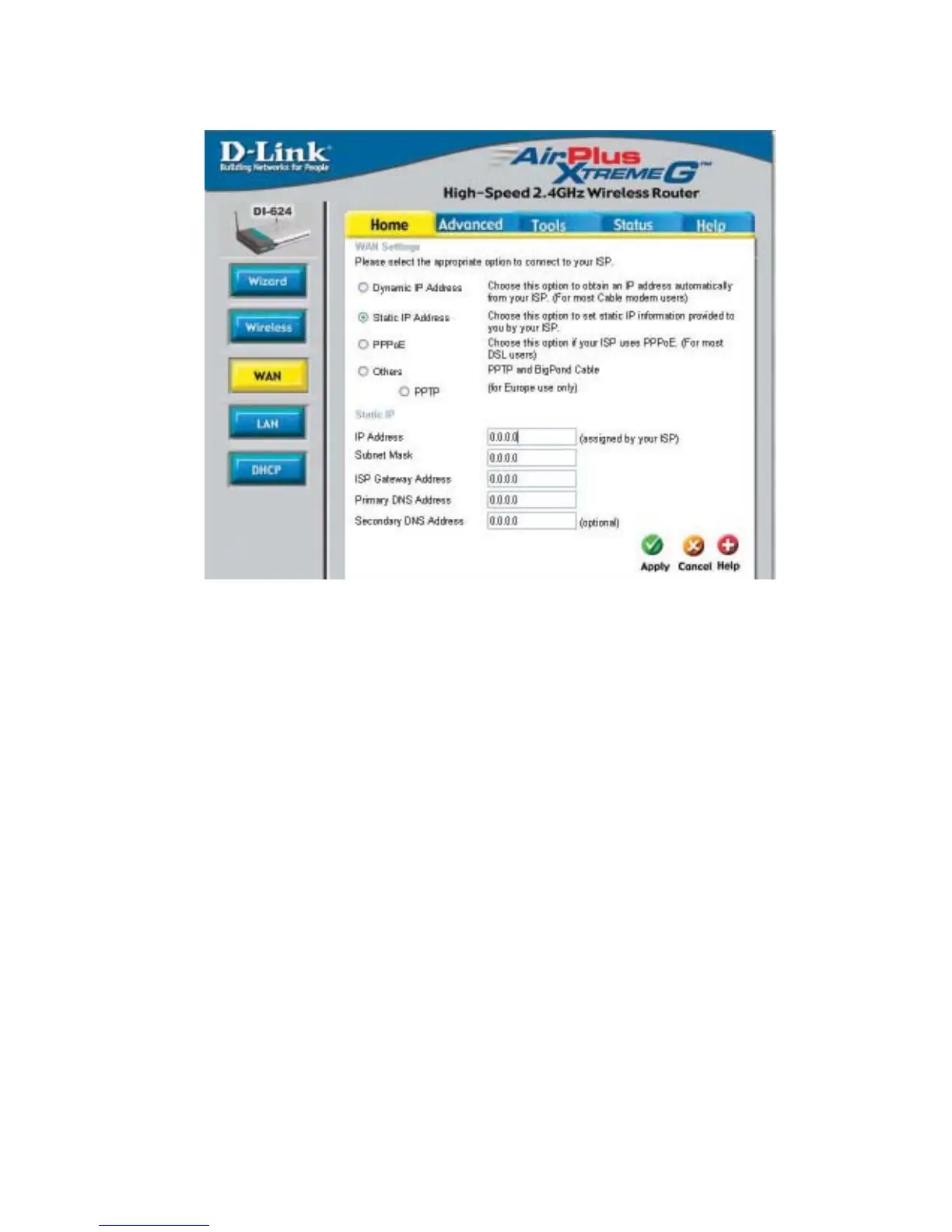

Home > WAN > Static IP Address
Static IP Address-
IP Address-
Subnet Mask-
ISP
Gateway Address-
Primary
DNS Address-
Secondary
DNS Address-
Apply-
Choose Static IP Address if all WAN IP information is provided to
you by your ISP. You will need to enter in the IP address, subnet
mask, gateway address, and DNS address(es) provided to you
by your ISP. Each IP address entered in the fields must be in the
appropriate IP form, which are four octets separated by a dot
(x.x.x.x). The Router will not accept the IP address if it is not in
this format.
Input the public IP Address provided by your ISP
Input your Subnet mask. (All devices in the network must have
the same subnet mask.)
Input the public IP address of the ISP to which you are connect-
ing
Input the primary DNS (Domain Name Server) IP address pro-
vided by your ISP
This is optional
Click Apply to save the changes.

D-Link AirPlusXtremeG DI-624 Specifications

General

Wireless Standard	802.11g
Standards	IEEE 802.11g, IEEE 802.11b, IEEE 802.3, IEEE 802.3u
Frequency Band	2.4 GHz
LAN Ports	4 x 10/100Mbps
WAN Ports	1 x 10/100Mbps
Security	WEP, WPA, WPA2
Wireless Data Rates	Up to 54Mbps (802.11g)
Antenna	2 dBi
Firewall	NAT
