D-Link AirPlusXtremeG DI-624 User Manual

33

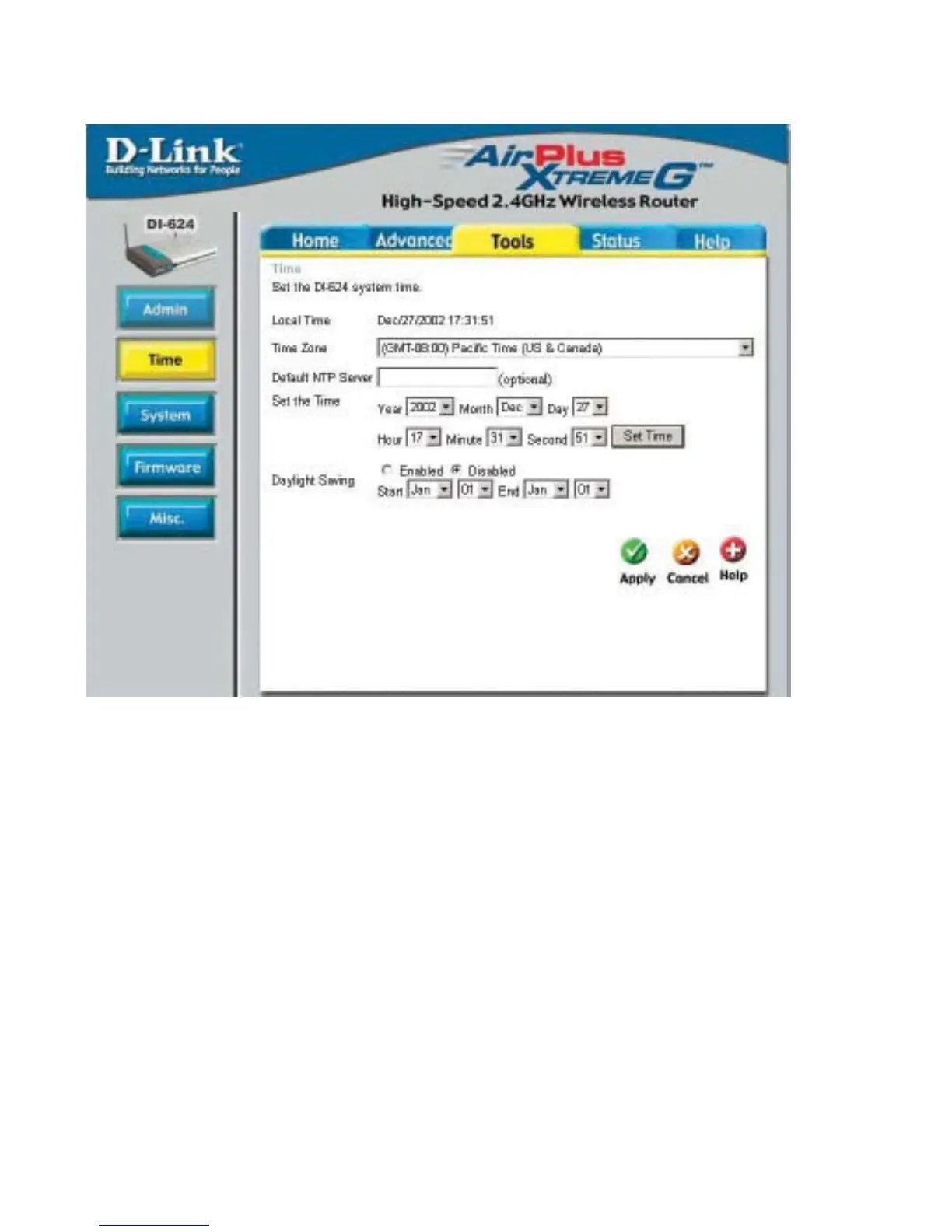

Using the Configuration Menu
Tools > Time
Time Zone-
Select the Time Zone from the pull-down menu.
Daylight
Saving-
To select Daylight Saving time manually, select enabled or dis-
abled, and enter a start date and an end date for daylight saving
time.
Set the Time-
To manually input the time, enter the values in these fields for
the Year, Month, Day, Hour, Minute, and Second. Click Set Time.
Default
NTP Server-
NTP is short for Network Time Protocol. NTP synchronizes com-
puter clock times in a network of computers.
This field is optional.
Apply-
Click Apply to save the changes.

D-Link AirPlusXtremeG DI-624 Specifications

General

Wireless Standard	802.11g
Standards	IEEE 802.11g, IEEE 802.11b, IEEE 802.3, IEEE 802.3u
Frequency Band	2.4 GHz
LAN Ports	4 x 10/100Mbps
WAN Ports	1 x 10/100Mbps
Security	WEP, WPA, WPA2
Wireless Data Rates	Up to 54Mbps (802.11g)
Antenna	2 dBi
Firewall	NAT
