D-Link AirPlusXtremeG DI-624 User Manual

52
Input your IP address
and subnet mask. (The
IP Addresses on your
network must be within
the same range. For
example, if one computer
has an IP Address of
192.168.0.2, the other
computers should have IP
Addresses that are
sequential, like
192.168.0.3 and
192.168.0.4. The subnet
mask must be the same
for all the computers on
the network.)
Networking Basics

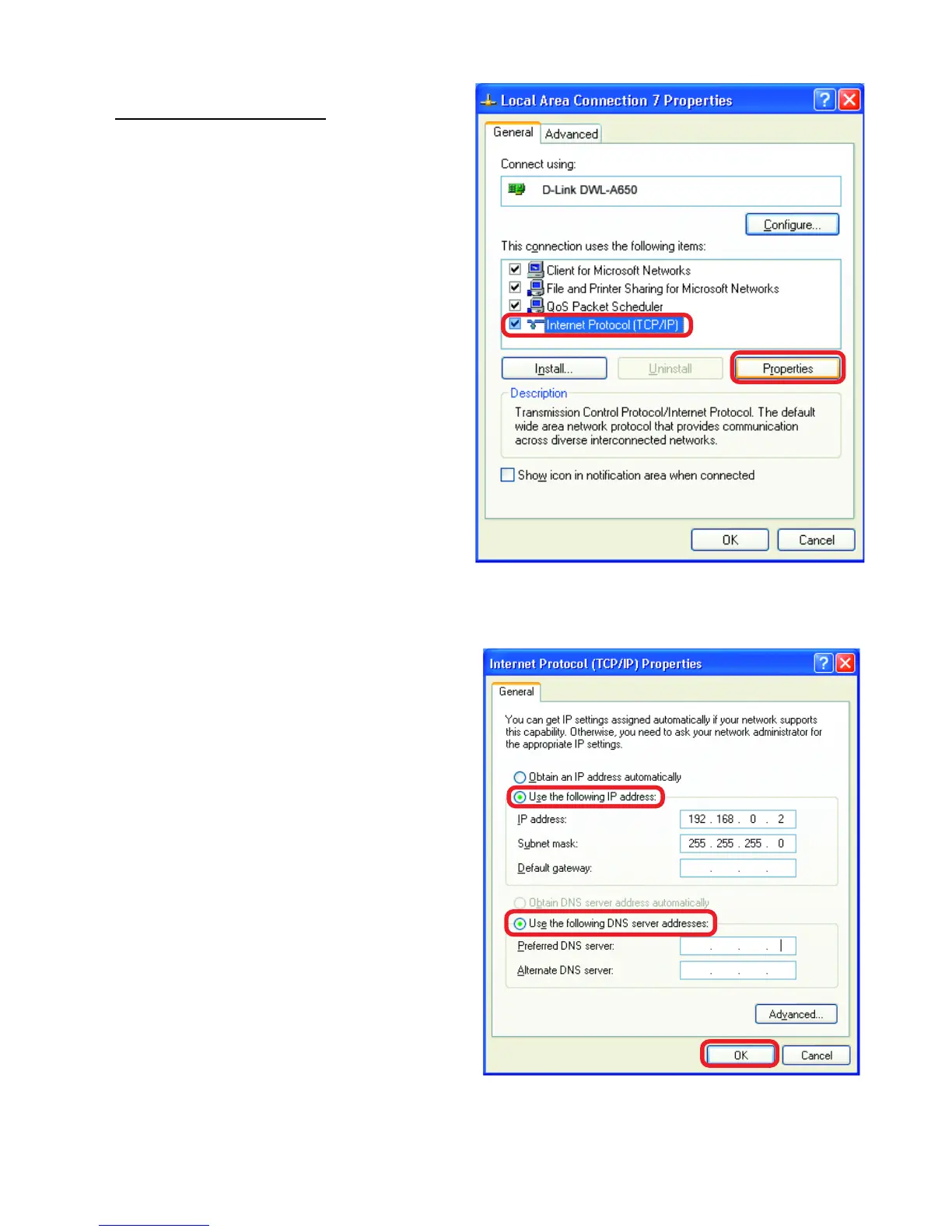

Assigning a Static IP Address
in Windows XP/2000
Input your DNS server
addresses. (Note: If
you are entering a DNS
server, you must enter
the IP Address of the
Default Gateway.)

The DNS server information will be supplied
by your ISP (Internet Service Provider.)

Click OK
Click on Internet
Protocol (TCP/IP)
Click Properties




D-Link AirPlusXtremeG DI-624 Specifications

General

Wireless Standard	802.11g
Standards	IEEE 802.11g, IEEE 802.11b, IEEE 802.3, IEEE 802.3u
Frequency Band	2.4 GHz
LAN Ports	4 x 10/100Mbps
WAN Ports	1 x 10/100Mbps
Security	WEP, WPA, WPA2
Wireless Data Rates	Up to 54Mbps (802.11g)
Antenna	2 dBi
Firewall	NAT
