D-Link AirPlusXtremeG DI-624 User Manual

53
Networking Basics

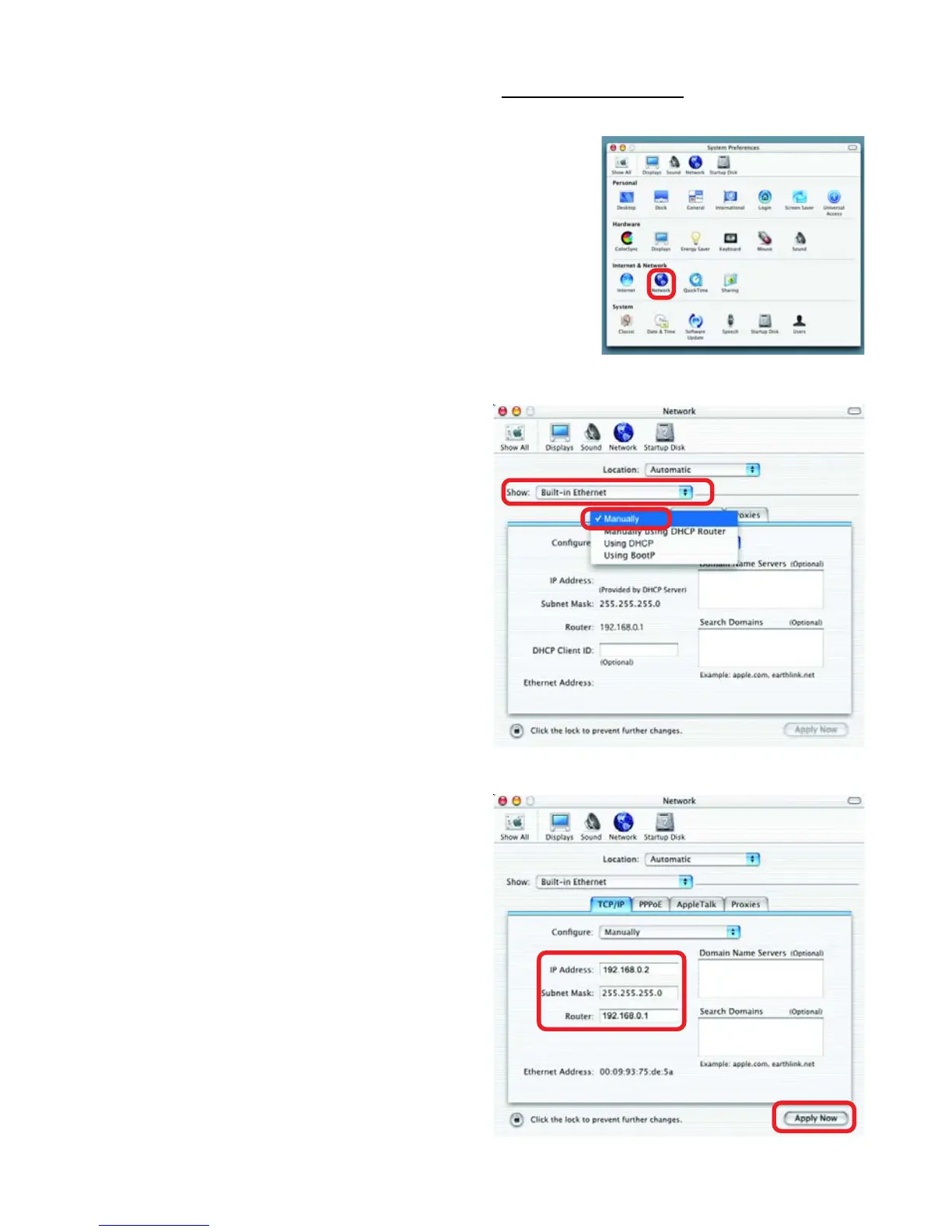

Assigning a Static IP Address with Macintosh OSX






Go to the Apple Menu and se-
lect System Preferences
cClick on Network
Select Built-in Ethernet in
the Show pull-down menu
Select Manually in the
Configure pull-down
menu
Input the Static IP Ad-
dress, the Subnet Mask
and the Router IP Ad-
dress in the appropriate
fields
Click Apply Now

D-Link AirPlusXtremeG DI-624 Specifications

General

Wireless Standard	802.11g
Standards	IEEE 802.11g, IEEE 802.11b, IEEE 802.3, IEEE 802.3u
Frequency Band	2.4 GHz
LAN Ports	4 x 10/100Mbps
WAN Ports	1 x 10/100Mbps
Security	WEP, WPA, WPA2
Wireless Data Rates	Up to 54Mbps (802.11g)
Antenna	2 dBi
Firewall	NAT
