D-Link AirPlusXtremeG DI-624 User Manual

54
Networking Basics

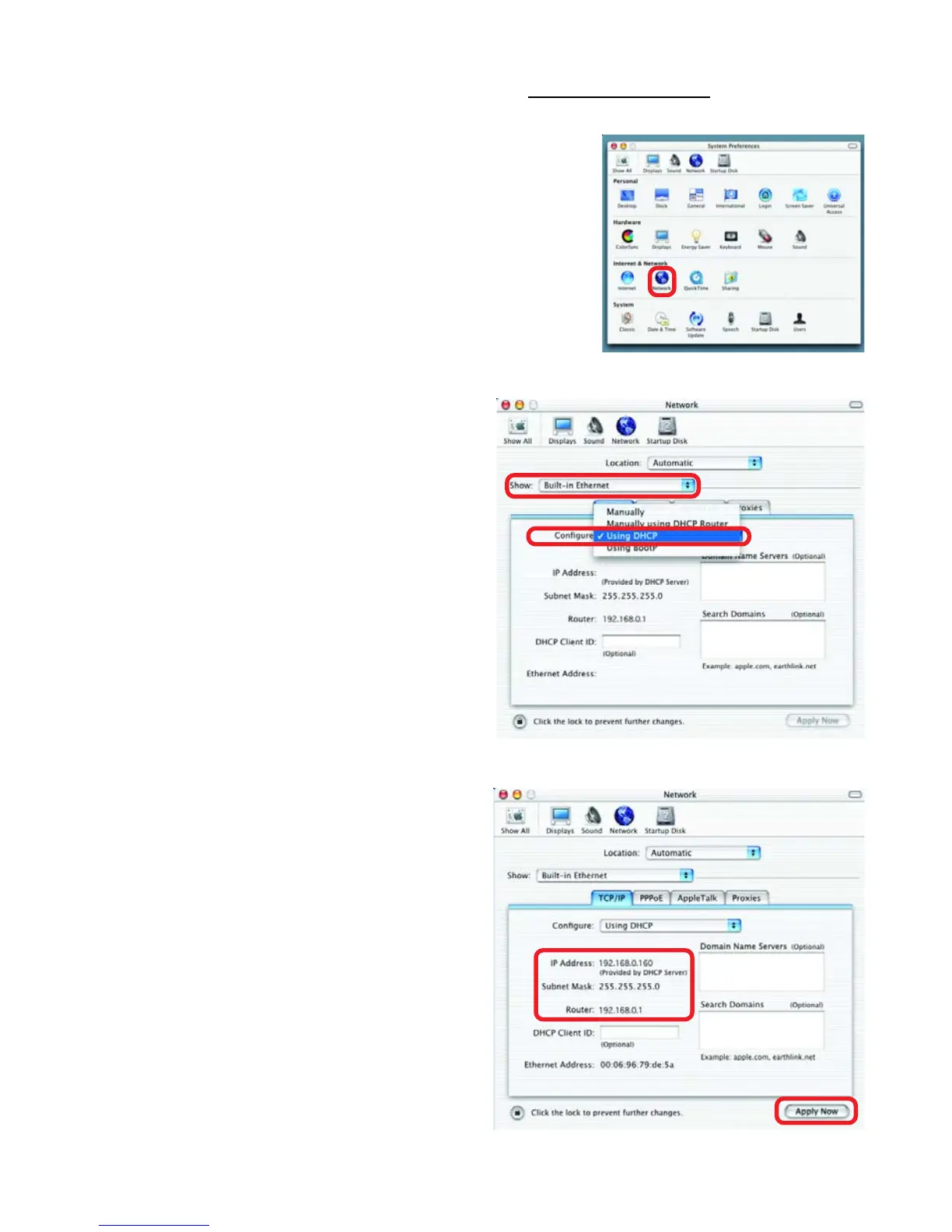

Selecting a Dynamic IP Address with Macintosh OSX
Go to the Apple Menu and se-
lect System Preferences
Click on Network
Select Built-in Ethernet in
the Show pull-down menu
Select Using DHCP in the
Configure pull-down menu
Click Apply Now
The IP Address, Subnet
mask, and the Router’s IP
Address will appear in a
few seconds







D-Link AirPlusXtremeG DI-624 Specifications

General

Wireless Standard	802.11g
Standards	IEEE 802.11g, IEEE 802.11b, IEEE 802.3, IEEE 802.3u
Frequency Band	2.4 GHz
LAN Ports	4 x 10/100Mbps
WAN Ports	1 x 10/100Mbps
Security	WEP, WPA, WPA2
Wireless Data Rates	Up to 54Mbps (802.11g)
Antenna	2 dBi
Firewall	NAT
