D-Link AirPremier N DAP-2360

DAP-2360 Install Guide 3
Hardware Overview

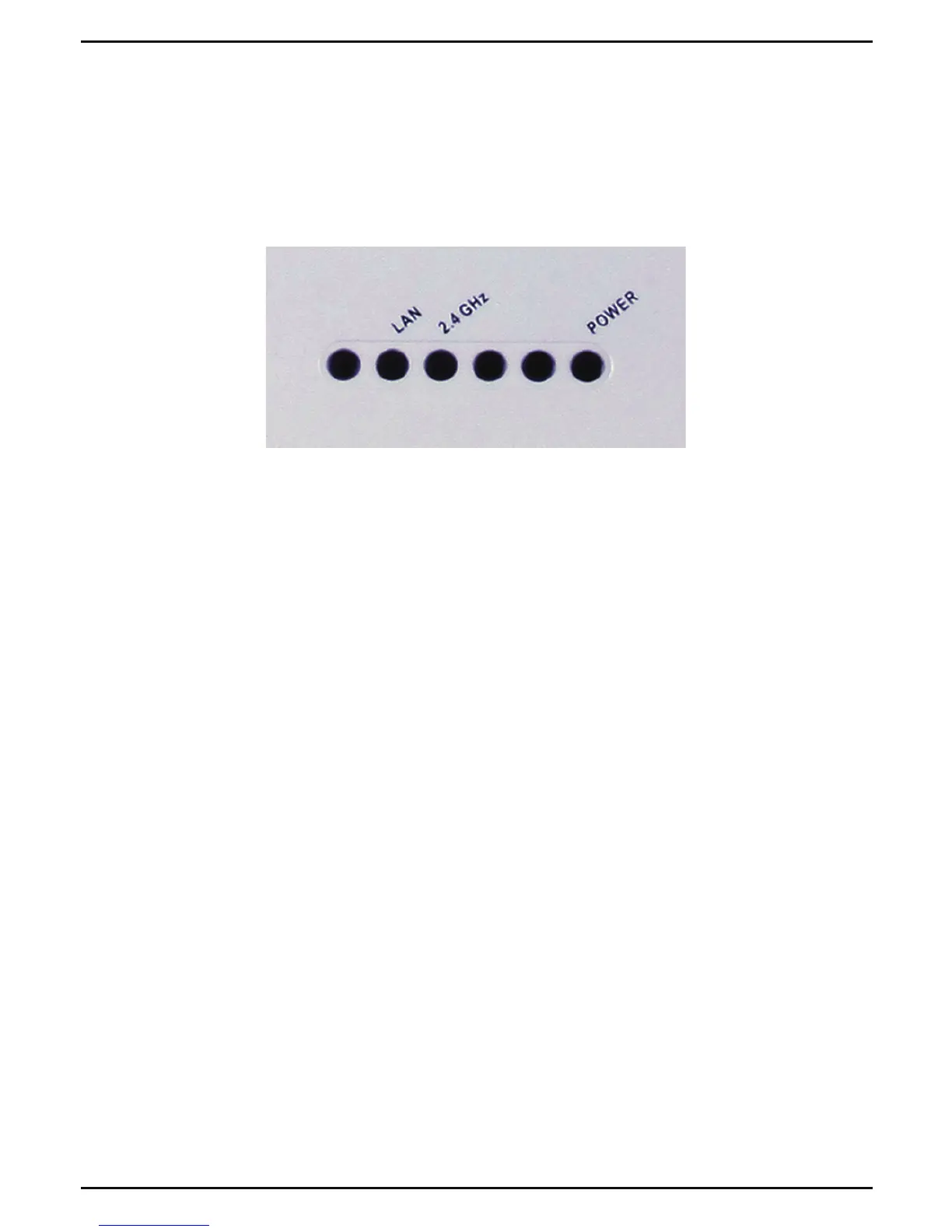

LEDs
LAN - Solid light when the Ethernet port is connected to a working
Ethernet device, such as a router or switch. The light will blink when
there is trac through LAN port.
2.4 GHz - When lit, the wireless function of the access point is work-
ing properly. This light will blink when there is wireless trac.
POWER - The light will blink during boot up. Once solid, the access
point is ready.
