D-Link COVR-2202 User Manual

12D-Link COVR-2202 User Manual
Section 3 - Conguration
Conguration
When prompted, enter your password. If you previously followed the setup
wizard, please use the admin password you entered during the wizard.
Otherwise, leave the password blank. Click Log In to proceed.
Note: If you cannot remember your password and cannot log in, press the
Reset button on the bottom of the device with an unfolded paper clip to
restore the device to its default settings. Refer to Resetting your Device on
page 76 for more information.

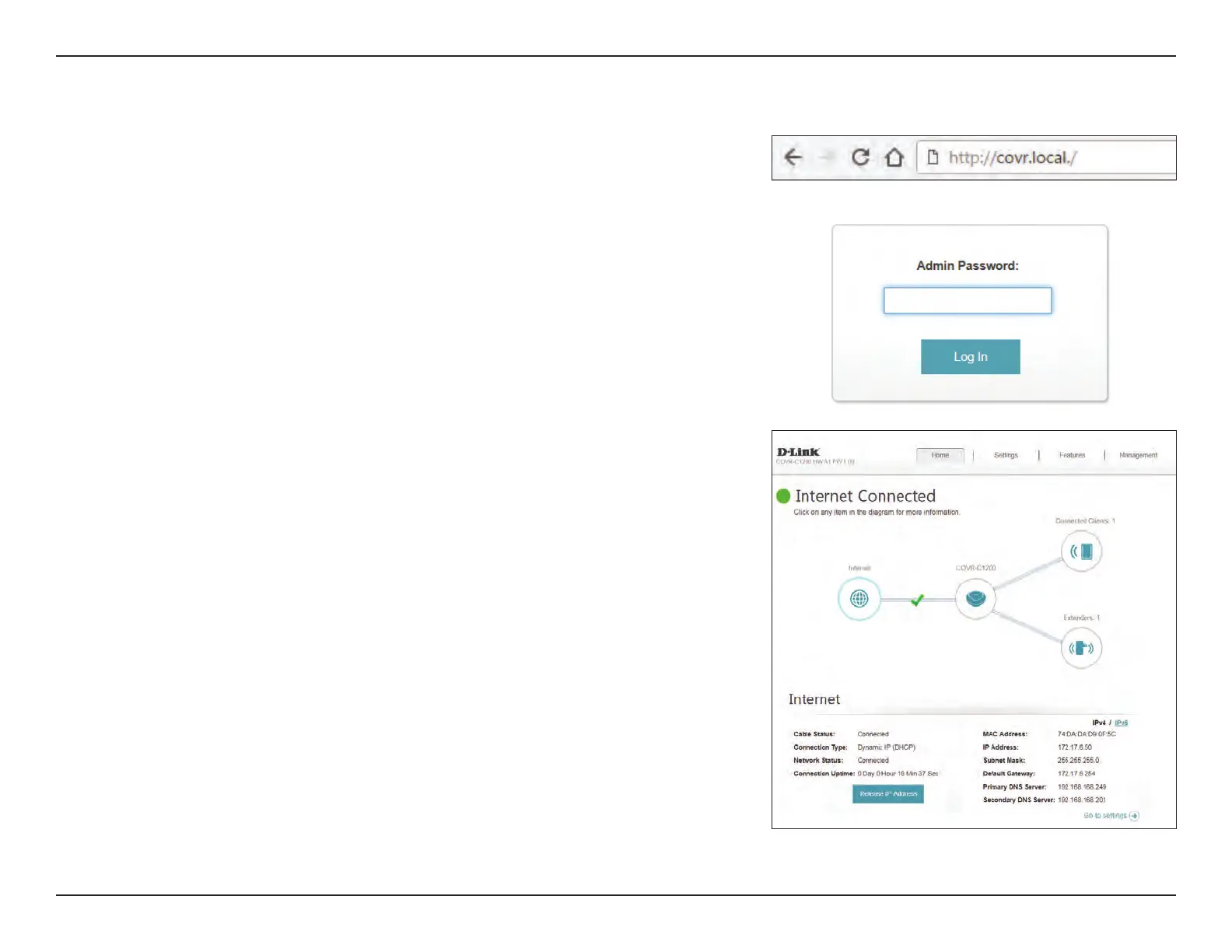

To access the web conguration utility, open a web browser such as Internet
Explorer and enter http://covr.local./ in the address bar.
If you want to access the web interface using a wireless connection, connect
to your Covr Wi-Fi, then open a web browser such as Internet Explorer and
enter http://covr.local./ in the address bar.
Note: If you have previously changed the Management Link in the Network
settings, use this link to access the web user interface instead.
When you are logged in, the device's home page will open, displaying its
current connection status.
The bar at the top of the page has quick access to Settings , Features, and
Management functions. You may quickly jump back Home at any time.
Note: The system will automatically log out after a period of inactivity.

D-Link COVR-2202 Specifications

General

2.4 GHz	Yes
MIMO type	Multi User MIMO
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u
Ethernet LAN data rates	1000 Mbit/s
Maximum data transfer rate (5 GHz)	867 Mbit/s
Internal	No
Placement	Table
Certification	FCC, IDA, IC, CB, CE, LVD, RCM, RoHS
Product color	Gold, White
Number of products included	2 pc(s)
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	20 W
Security algorithms	WPA, WPA2, WPS
WAN connection	Ethernet (RJ-45)
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	2
Antenna features	Integrated antenna
Antennas quantity	6
Package depth	367 mm
Package width	260 mm
Package height	108 mm
Package weight	2396 g
Pallet width	1100 mm
Pallet length	1200 mm
Pallet height (air)	1299 mm
Pallet height (sea)	1881 mm
Pallet gross weight (air)	272600 g
Pallet gross weight (sea)	397400 g
Quantity per pallet (air)	96 pc(s)
Quantity per pallet (sea)	144 pc(s)
Shipping (inner) case width	384 mm
Shipping (inner) case height	291 mm
Shipping (inner) case length	458 mm
Shipping (inner) case weight	10400 g
Shipping (inner) case net weight	9584 g
Number of cartons per pallet (air)	24 pc(s)
Number of cartons per pallet (sea)	36 pc(s)
Quantity per shipping (inner) case	4 pc(s)

Weight and Dimensions

Depth	90 mm
Width	100 mm
Height	200 mm
Weight	690 g
