D-Link COVR-2202 User Manual

47D-Link COVR-2202 User Manual
Section 3 - Conguration

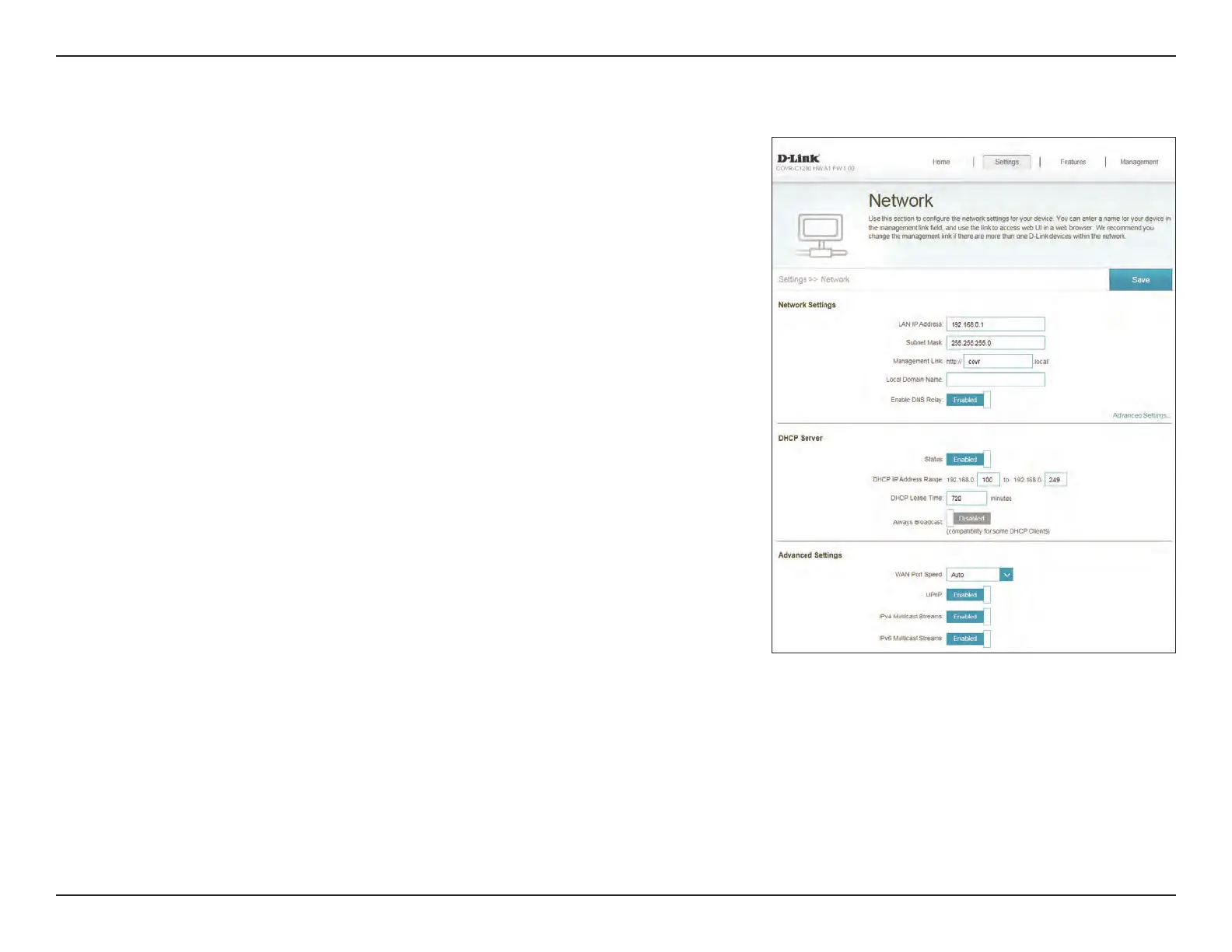

Network
This section will allow you to change the local network settings of Covr Point A
and congure the DHCP settings. In the Settings menu on the bar on the top
of the page, click Network. Click Advanced Settings... to expand the list and
see all of the options.
Network Settings
LAN IP Address: Enter the IP address of Covr Point A. The default IP address is
192.168.0.1.
If you change the IP address, once you click Save, you will need
to enter the new IP address in your browser to get back into the
conguration utility.
Subnet Mask: Enter the subnet mask of the router. The default subnet mask is
255.255.255.0.
Management
Link:
The default address to access the web conguration utility is
http://covr.local/ Here, you can replace "covr" with a dierent name.
If you change the management link, you will be required to browse
to the new URL in order to access the web UI.
Local Domain
Name:
Enter the domain name (optional).
Enable DNS Relay: Disable to transfer the DNS server information from your ISP to your
computers. If enabled, your computers will use Covr Point A for a
DNS server.

D-Link COVR-2202 Specifications

General

2.4 GHz	Yes
MIMO type	Multi User MIMO
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u
Ethernet LAN data rates	1000 Mbit/s
Maximum data transfer rate (5 GHz)	867 Mbit/s
Internal	No
Placement	Table
Certification	FCC, IDA, IC, CB, CE, LVD, RCM, RoHS
Product color	Gold, White
Number of products included	2 pc(s)
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	20 W
Security algorithms	WPA, WPA2, WPS
WAN connection	Ethernet (RJ-45)
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	2
Antenna features	Integrated antenna
Antennas quantity	6
Package depth	367 mm
Package width	260 mm
Package height	108 mm
Package weight	2396 g
Pallet width	1100 mm
Pallet length	1200 mm
Pallet height (air)	1299 mm
Pallet height (sea)	1881 mm
Pallet gross weight (air)	272600 g
Pallet gross weight (sea)	397400 g
Quantity per pallet (air)	96 pc(s)
Quantity per pallet (sea)	144 pc(s)
Shipping (inner) case width	384 mm
Shipping (inner) case height	291 mm
Shipping (inner) case length	458 mm
Shipping (inner) case weight	10400 g
Shipping (inner) case net weight	9584 g
Number of cartons per pallet (air)	24 pc(s)
Number of cartons per pallet (sea)	36 pc(s)
Quantity per shipping (inner) case	4 pc(s)

Weight and Dimensions

Depth	90 mm
Width	100 mm
Height	200 mm
Weight	690 g
