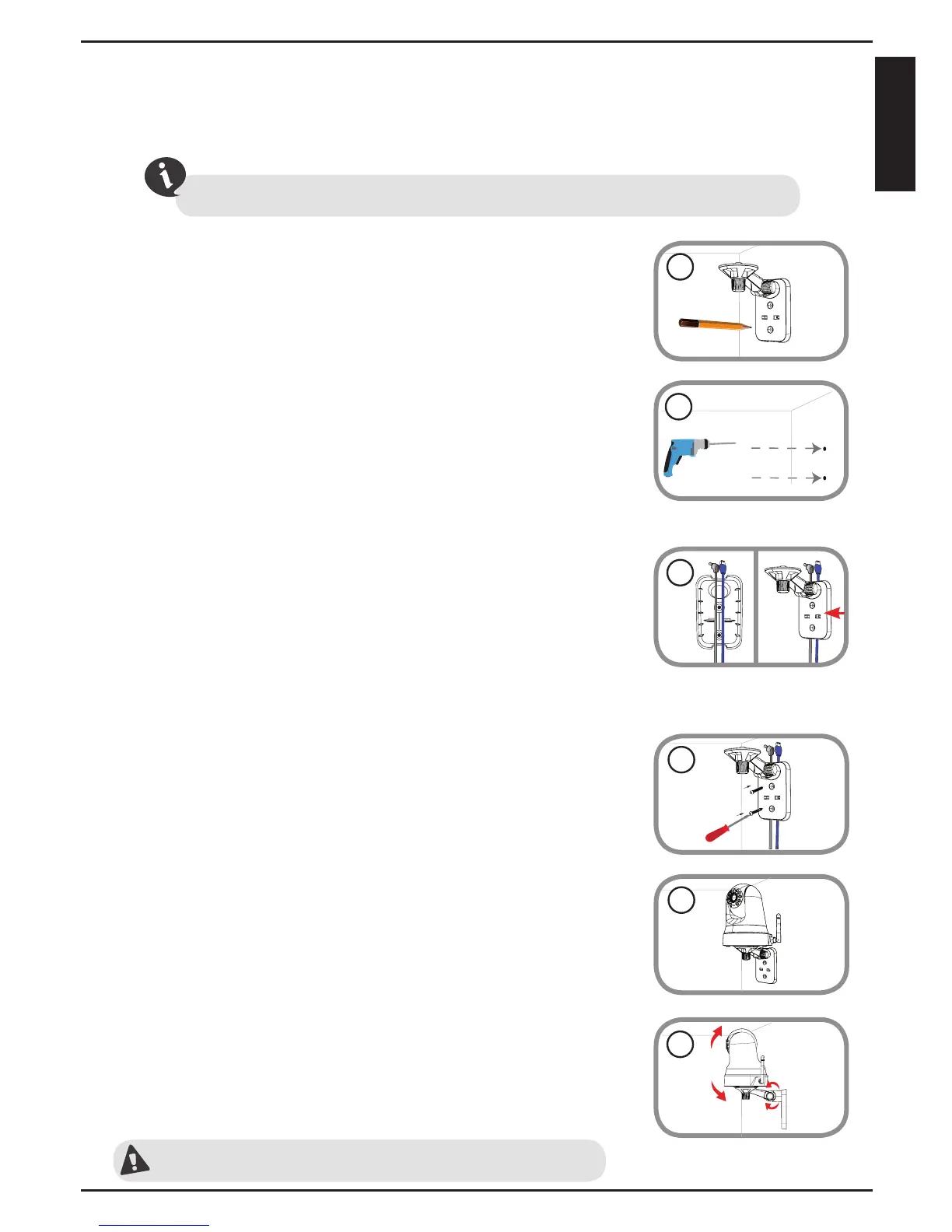

Mount the Camera
Please refer to the steps below to assist you with mounting the camera.
We suggest that you congure the camera before mounting.
Do not overtighten the screws as this may crack the bracket.
2. Depending on the material of the wall or ceiling,
use proper tools to drill two holes or screws
where you marked. If the wall is made out of
concrete, drill the holesrst, then insert the
plastic anchors to support the screws.
2
1. Place the mounting bracket where you want to
position the camera and use a pencil to mark
the holes.
1
3
4
5
6
3. The power and Ethernet cables can be
concealed behind the mounting bracket. Run
the cables through the back of the mounting
bracket, securing them with the built-in
guides. Be sure to leave enough cable length
protruding from the top to allow connection to
the camera.
4. Fasten the mounting bracket to the wall using
the screws provided.
5. Using the supplied thumbscrew, fasten the
camera to the mounting bracket. Connect the
power and Ethernet cables to the camera.
6. Adjust the angle of the arm on the mounting
bracket as required. Tighten the thumbscrew to
lock the arm in place.
7
ENGLISH

Other manuals for D-Link DCS-5020L

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the D-Link DCS-5020L and is the answer not in the manual?

D-Link DCS-5020L Specifications

General IconGeneral
Maximum resolution640 x 480 pixels
Supported video modes-
Video formats supportedH.264, M-JPEG
Supported graphics resolutions160 x 112, 320 x 240, 640 x 480 (VGA)
Tilt angle range0 - 30 °
Minimum illumination0 lx
Sensor typeCMOS
Optical sensor size1/5 \
Optical zoom- x
Fixed focal length2.2 mm
Security algorithmsHTTPS
Video motion detectionYes
Built-in HDDNo
LED typeIR
Night vision distance8 m
Form factorDome
Product colorBlack, White
Connectivity technologyWired & Wireless
Bundled softwareD-ViewCam
Ethernet LAN (RJ-45) ports1
Wi-Fi standardsWi-Fi 4 (802.11n)
Cabling technology10/100Base-T(X)
AC input voltage12 V
DC output current1 A
AC input frequency50 - 60 Hz
Storage temperature (T-T)-25 - 70 °C
Operating temperature (T-T)0 - 40 °C
Storage relative humidity (H-H)5 - 95 %
Operating relative humidity (H-H)20 - 85 %
Weight and Dimensions IconWeight and Dimensions
Depth102.35 mm
Width101.27 mm
Height133.6 mm
Weight292.4 g
