D-Link DCS-930L Setup Guide

D-Link Technical Support – How to record using mydlink camera's. Page 12 of 17

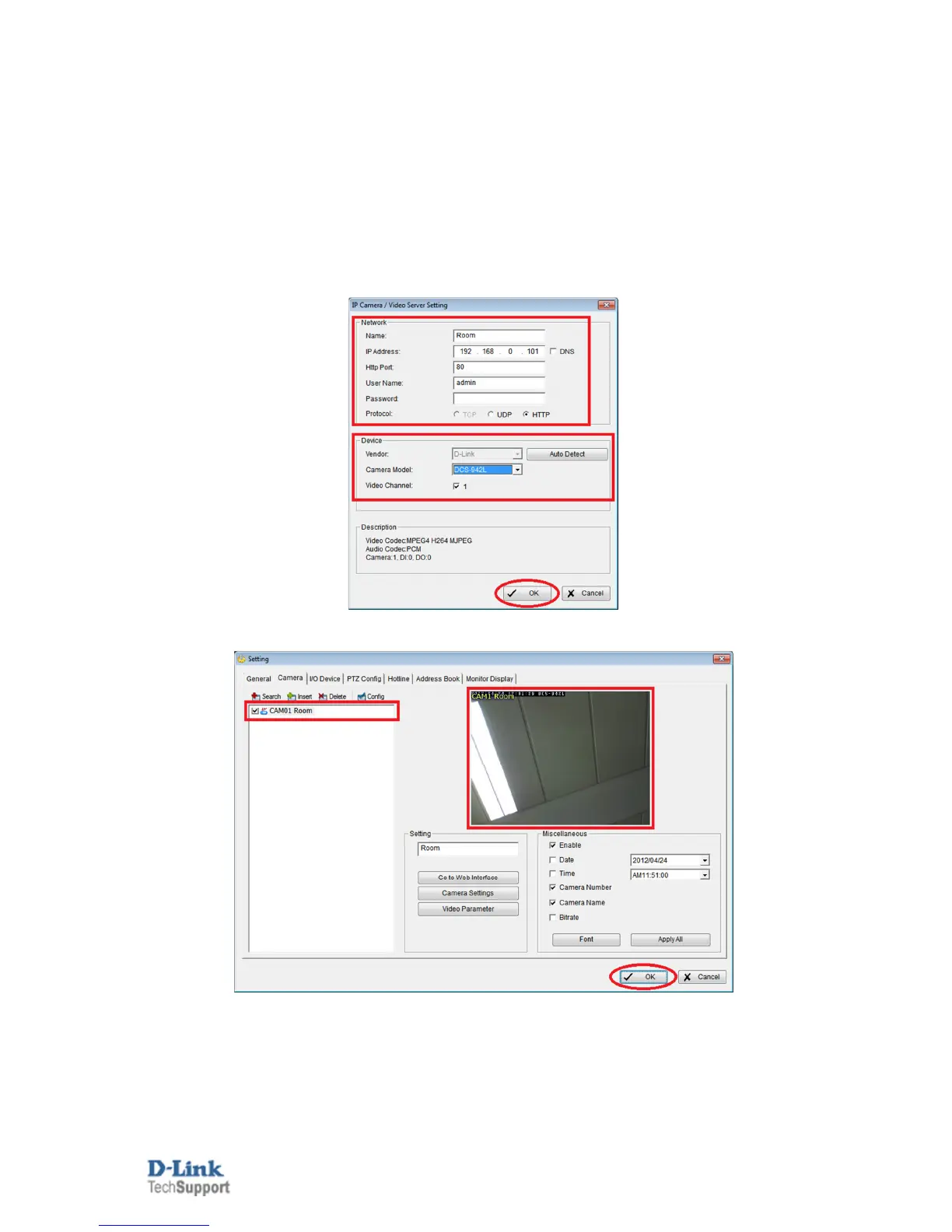

IP Address: Type in the IP Address of the Camera.
HTTP Port: By default this is Port 80. If you have changed the default HTTP Port on the
camera, please change this value accordingly.
User Name: The Username of your camera's Web Configuration.
Password: The Password of your camera's Web Configuration.
Protocol: Recommended to leave it on HTTP.
Click on the Auto Detect button for it to automatically detect your camera model and or
from the Camera Model drop down select your camera model manually. Click on the OK
button:
22d. We can now see the camera has been added to D-Link D-ViewCam.
Click on the OK button to complete this process.

D-Link DCS-930L Specifications

General

Maximum resolution	640 x 480 pixels
White balance	Auto
Minimum illumination	1 lx
Sensor type	CMOS
Optical sensor size	1/5 \
Digital zoom	4 x
Security algorithms	WEP, WPA, WPA2
Video motion detection	Yes
Cabling technology	10/100Base-T(X)
Supported network protocols	IPV4, ARP, TCP, UDP, ICMP, DHCP, NTP, DNS, DONS, SMTP, FTP, HTTP, PPPoE, UPnP, LLTD
AC input voltage	100-240 V
DC output current	1.2 A
DC output voltage	+5V
AC input frequency	50 - 60 Hz
Power over Ethernet (PoE)	-
Power consumption (typical)	2 W
Ethernet LAN (RJ-45) ports	1
Certification	FCC B, IC, C-Tick, CE
Placement supported	Indoor
Dimensions (WxDxH)	27.2 x 60 x 96 mm
Compatible operating systems	Windows XP / Vista / 7
Flash memory	4 MB
Internal memory	32 MB
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Form factor	Cube

Weight and Dimensions

Weight	76.9 g
