Mounting the Switch on the Wall
The DES-1008E can also be mounted on a wall. Two mounting slots are provided on the bottom of the switch for this purpose. Please make sure

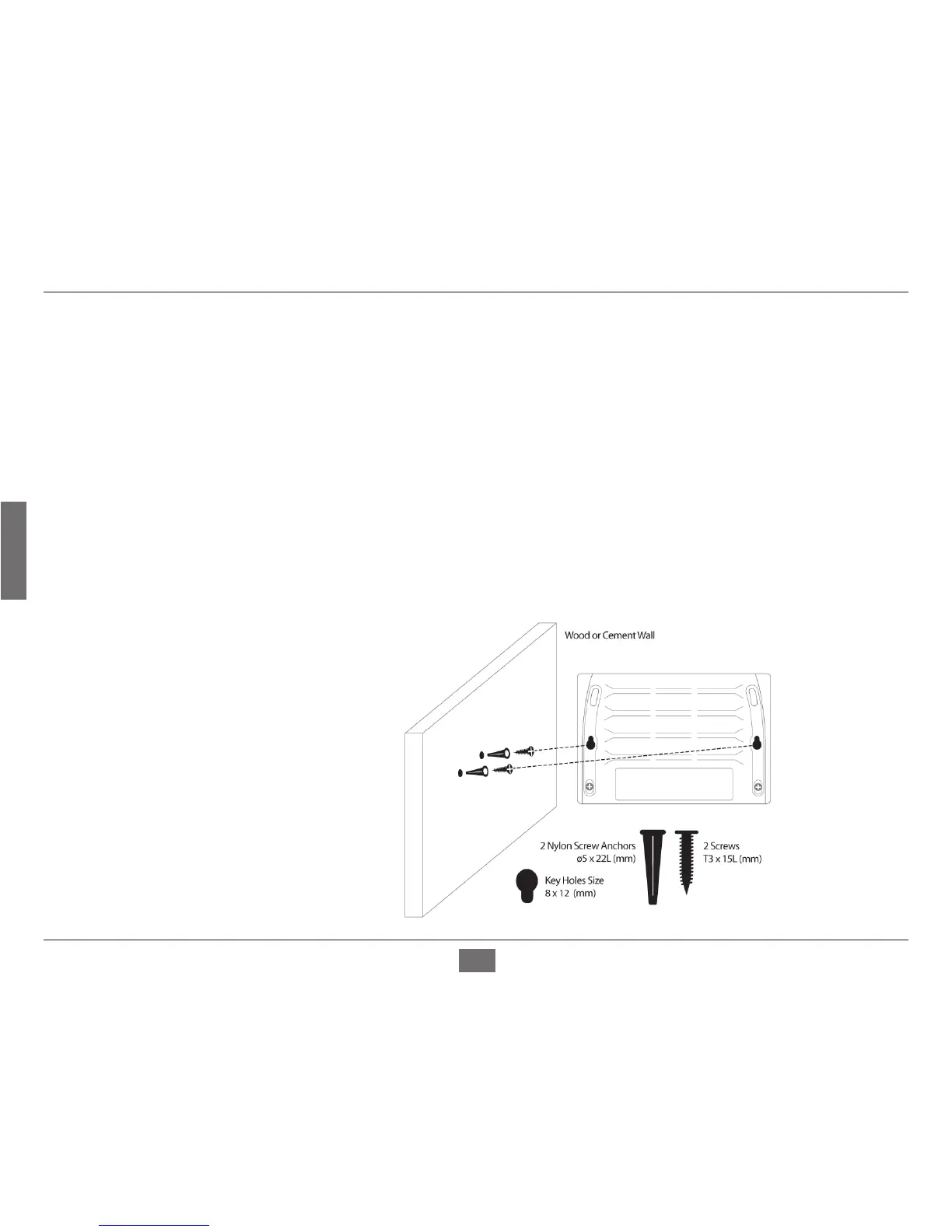

that the front panel is exposed in order to view the LEDs. Please refer to the illustration below:
Mounting on a cement wall
1. Mount the Nylon screw anchors into a cement wall.
2. Drive the T3 x 15L screws into the Nylon screw anchors.
3. Hook the mounting holes of the switch back on the screws.
Mounting on a wood wall
1. Drive the T3 x 15 L screws into the wood wall.
2. Hook the mounting holes of the switch back on the screws.
(1) 3/4 inch minimum for wood wall
(2) 3 inch minimum for cement wall.
