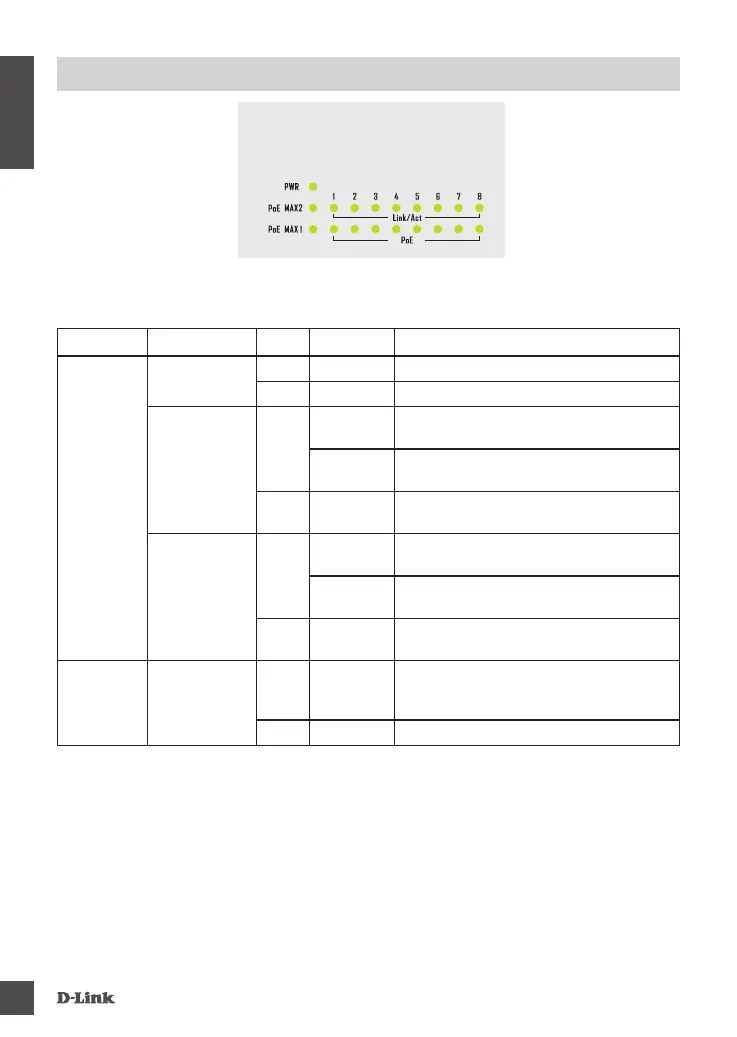

LED INDICATORS
The LED indicators allow you to monitor, diagnose, and troubleshoot any potential problem within the
switch, connection, or attached devices.
Location LED Indicative Color Status Description
Per Device Power Green Solid Light Power On
Off Light Off Power Off
PoE Max1.
(1-4 ports)
Green Solid Light When output power to PDs has reached the
power budget(55W).
Blinking When output power to PDs exceeded the
maximum power budget(70W).
Off Light Off When output power to PDs is less than the
power budget(55W), or no PDs connected.
PoE Max2.
(5-8 ports)
Green Solid Light When output power to PDs has reached the
power budget(55W).
Blinking When output power to PDs exceeded the
maximum power budget(70W).
Off Light Off When output power to PDs is less than the
power budget(55W), or no PDs connected.
Per PoE
1~8Ports
PoE Status Green Solid Light
When the PoE powered device (PD) is
connected and the port supplies power
successfully.
Off Light Off
No Powered Device (PD) connected.
