D-Link DES-1024D Quick Installation Guide

2
ENGLISH
Notice Before Setup the DES-1024D
The setup of the Switch can be performed using the following steps:
A. Install the DES-1024D in a fairly cool and dry place. See Technical Specications for the
acceptable operation temperature and humidity ranges.
B. Install the Switch in a site free from strong electromagnetic source, vibration, dust, and
direct sunlight.
C. Make sure that there is proper heat dissipation from and adequate ventilation around the
Switch. Do not place heavy objects on the Switch.
D. Visually inspect the power cable and ensure that it is rmly inserted into a suitable power outlet.

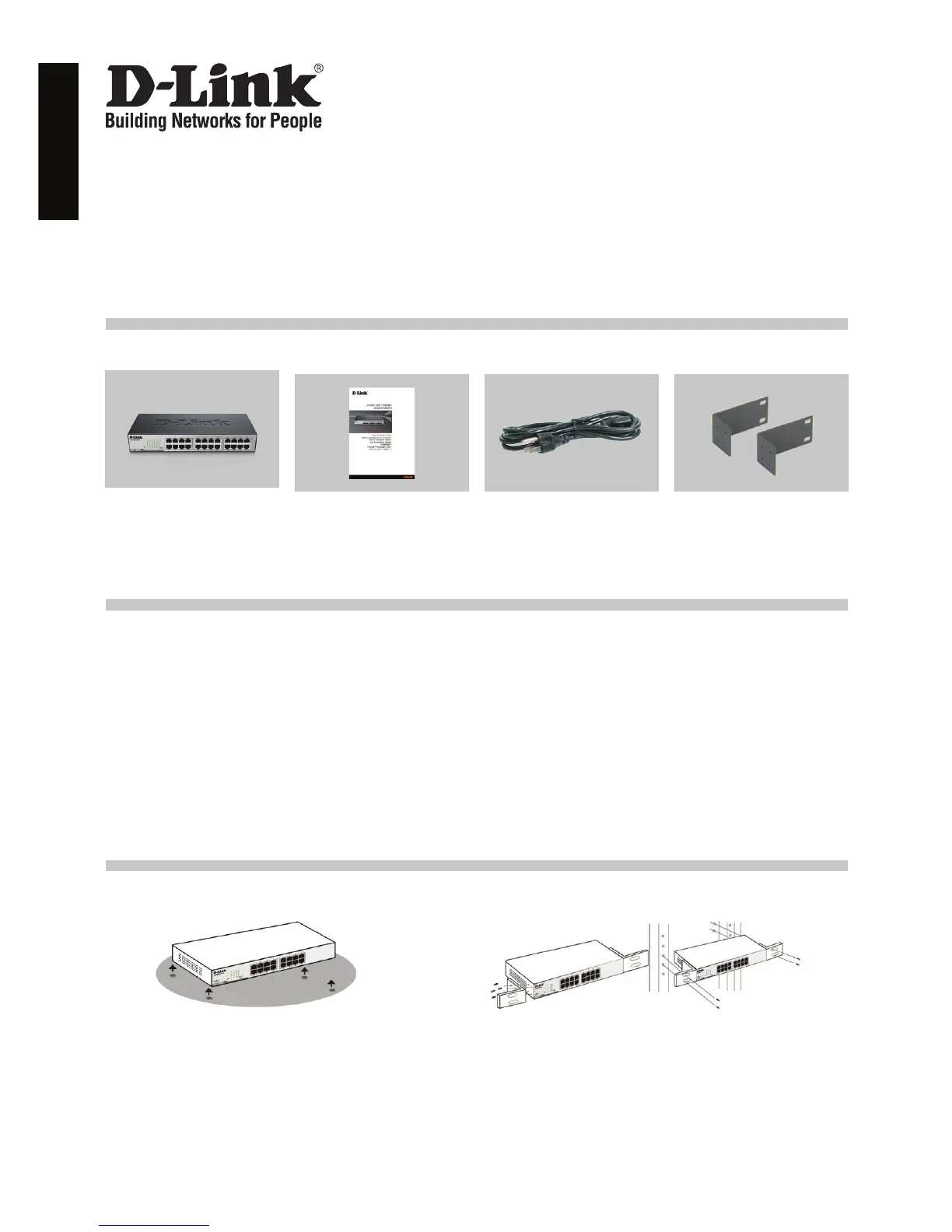

Installation
Desktop or Shelf Installation Rack Installation
When installing the Switch on a desktop
or shelf, the rubber feet included with
the device must be rst attached. Attach
these cushioning feet on the bottom at
each corner of the device. Allow enough
ventilation space between the device
and the objects around it.
The Switch can be mounted in an EIA standard size,
19-inch rack, which can be placed in a wiring closet
with other equipment. To install, attach the mounting
brackets on the switch’s front panel (one on each side)
and secure them with the screws provided.
Then, use the screws provided with the equipment
rack to mount the Switch in the rack.
DES-1024D Quick Installation
Guide
Power Cord Rack-mount bracket
These are the items included with your DES-1024D purchase:
Check Your Package Contents
Quick Installation Guide
DES-1024D
24-Port Fast Ethernet Desktop Switch

D-Link DES-1024D Specifications

General

MAC address table	8000 entries
Store-and-forward	Yes
Maximum data transfer rate	0.1 Gbit/s
Supported data transfer rates	10/100 Mbps
10G support	No
Networking standards	IEEE 802.1Q, IEEE 802.3, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u
Switch type	Unmanaged
Switch layer	L2
Power connector	DC-in jack
Basic switching RJ-45 Ethernet ports quantity	24
Safety	UL
Product color	Black
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 90 %
Dimensions (WxDxH)	280 x 44 x 180 mm
Networking features	Fast Ethernet
Connectivity technology	Wired
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Weight and Dimensions

Weight	1900 g
