Note: Some ISPs will require the user to input a specific
MAC address for the WAN port.
-5-

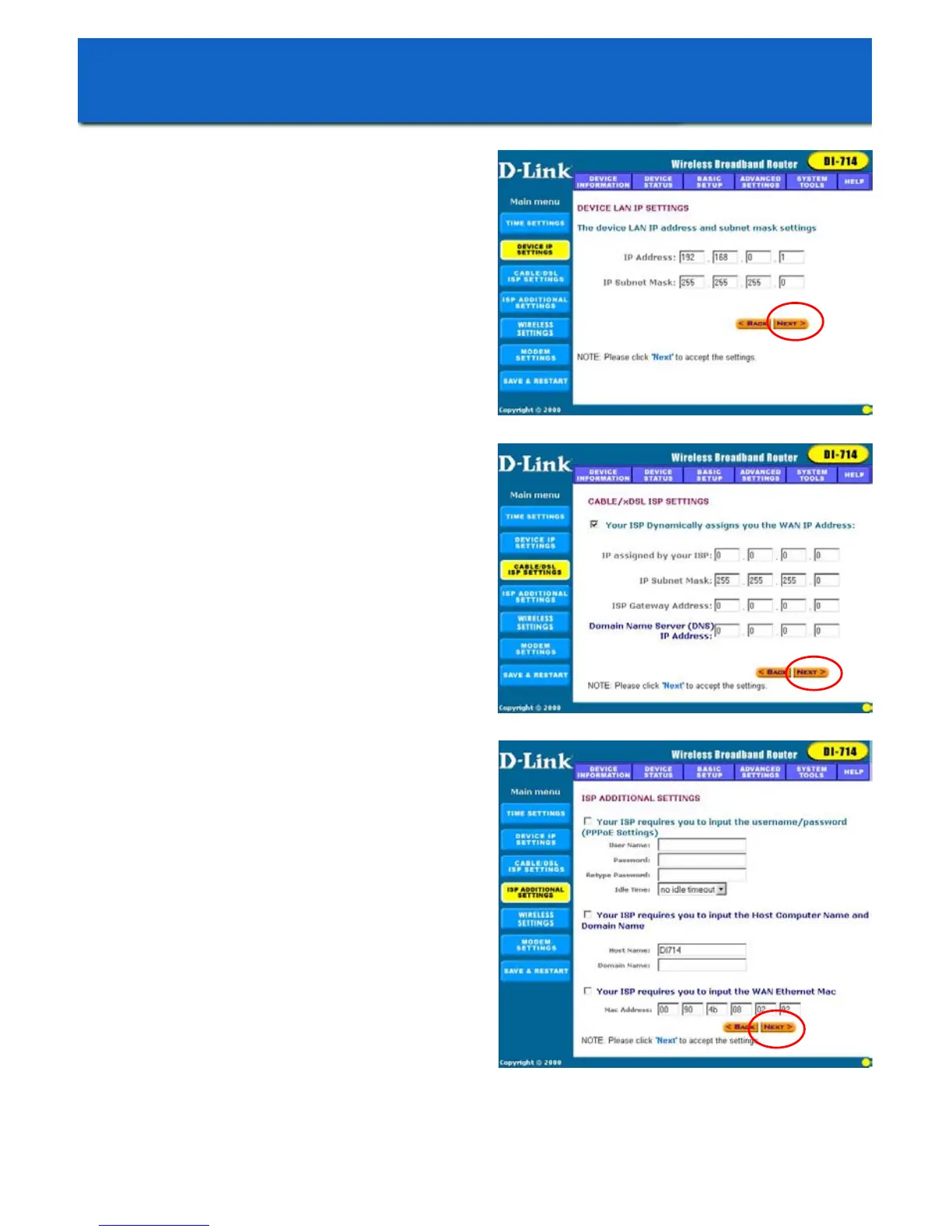

The default IP address of the LAN
port is set to 192.168.0.1
Click “Next” to accept the
default settings.
By default, the Broadband (WAN)
port is set to automatically obtain
an IP address from the ISP.
To assign a static IP for the
Broadband (WAN) port, remove
the checkmark and enter
the settings.
Click “Next”
DSL users:
If you are using a PPPoE client to
connect to your DSL provider, place a
checkmark on the first box, and enter the
user name and password in the
appropriate box.
Cable modem users:
If you are using a cable modem, place a
checkmark on the second box and enter
the host and domain name given by your
cable provider.
Click “Next”
Installing the DI-714
using the Setup Wizard
