D-Link DIR-1935 - Hardware Setup

11D-Link DIR-1935 User Manual
Section 3 - Installation

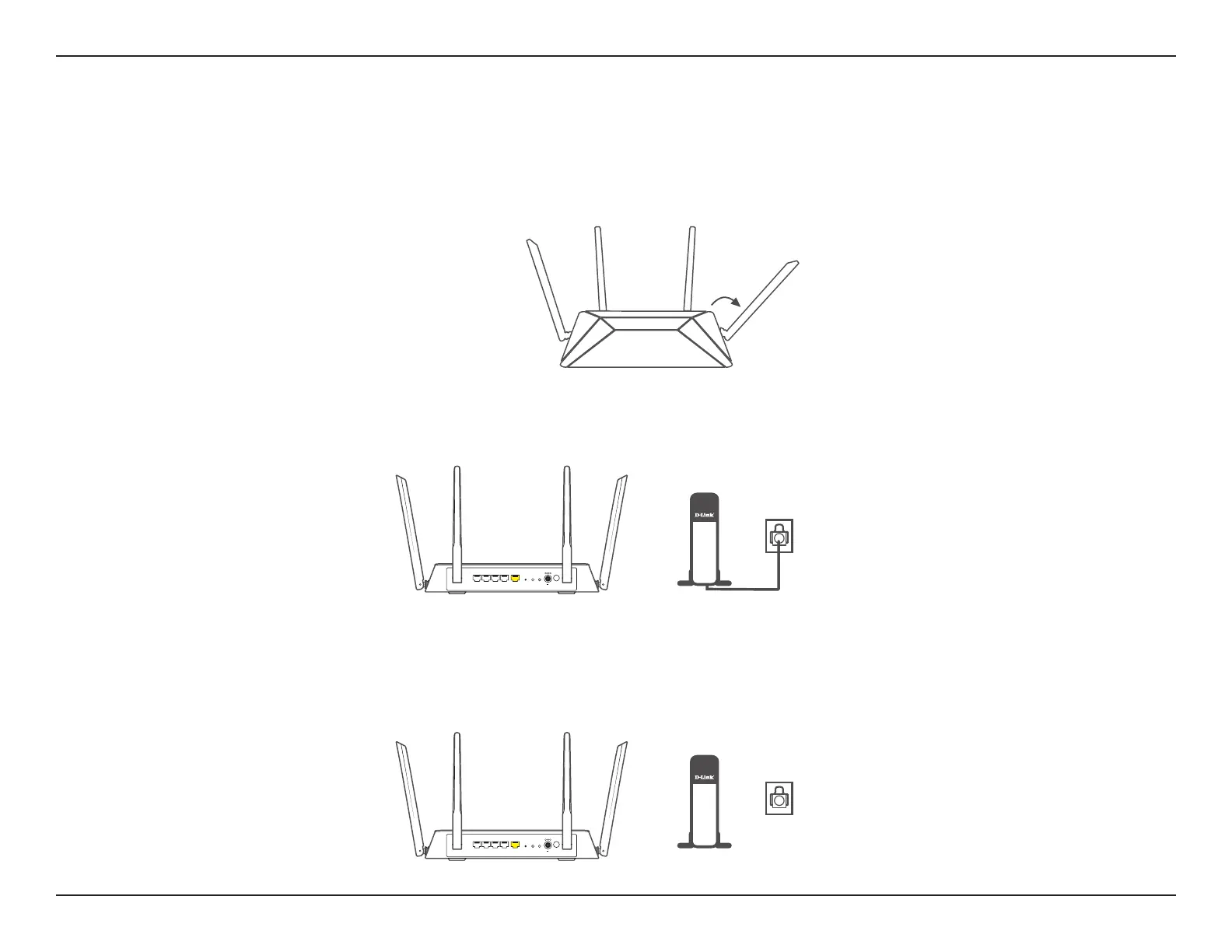

2. Position your DIR-1935 near your Internet-connected modem. Place it in an open area for better wireless coverage.
1. The DIR-1935 is designed to give you the fastest, most stable network connection possible. In order to maximize
performance, fully extend the antennas into a 105 degree angle to provide optimal wireless coverage. Keep the router
in an open area for better wireless coverage.
3. Turn o and unplug the power and Ethernet cable to your cable or DSL broadband modem. This is required. In some
cases, you may need to turn it o for up to ve minutes.
Modem
DIR-1935
Modem
Hardware Setup
105˚
4 3 2 1 INTERNETR ESET WPSW iFi1 2V... 1.5A POWER
- • +
DIR-1935
4 3 2 1 INTERNETR ESET WPSW iFi1 2V... 1.5A POWER
- • +
