76D-Link DIR-657 User Manual
Section 3 - Conguration

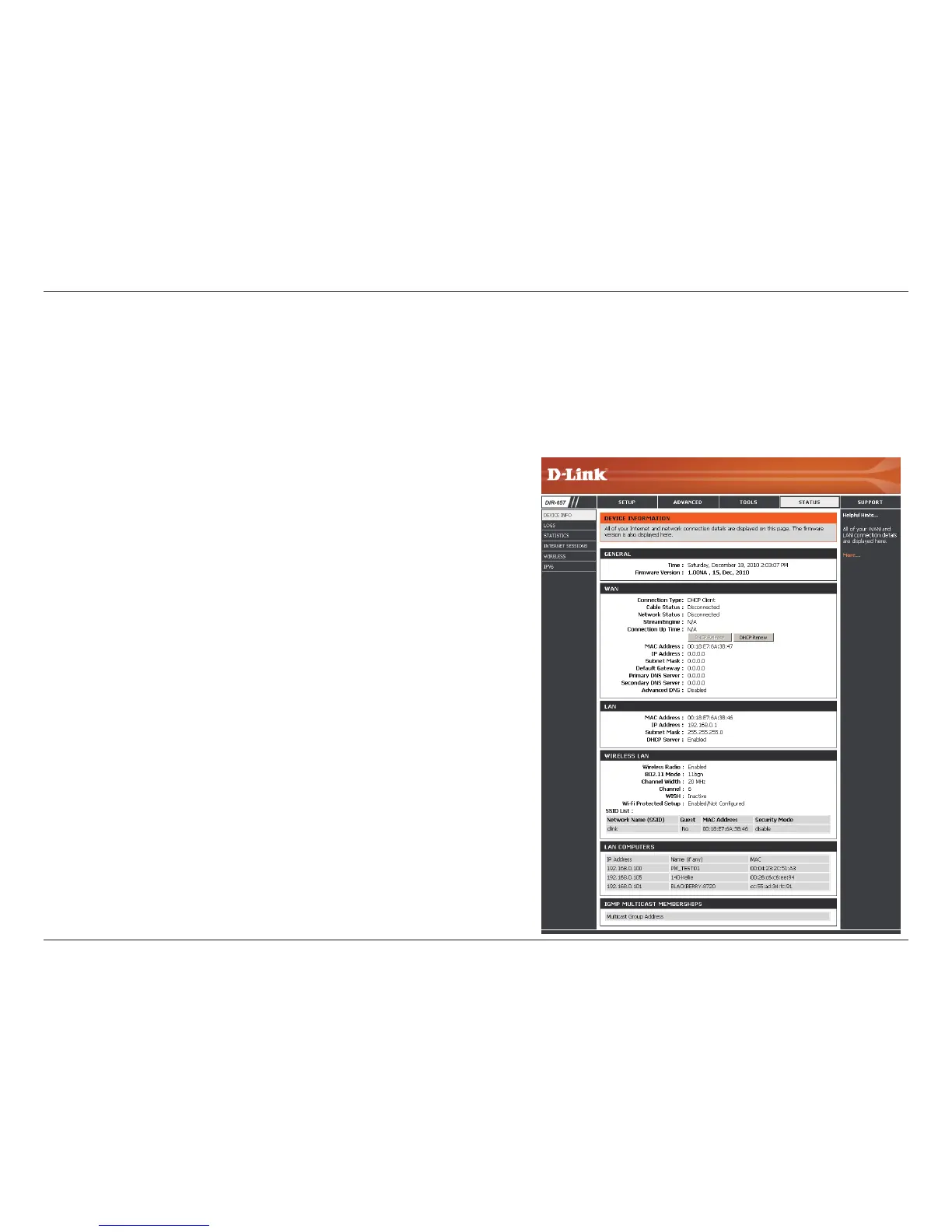

This page displays the current information for the DIR-657. It will display the LAN, WAN (Internet), and Wireless information.
If your Internet connection is set up for a Dynamic IP address then a Release button and a Renew button will be displayed. Use Release to disconnect
from your ISP and use Renew to connect to your ISP.
If your Internet connection is set up for PPPoE, a Connect button and a Disconnect button will be displayed. Use Disconnect to drop the PPPoE
connection and use Connect to establish the PPPoE connection.
Displays the router’s time and rmware version.
Displays the MAC address and the public IP settings for the router.
Displays the MAC address and the private (local) IP settings for the router.
Displays the wireless MAC address and your wireless settings such as SSID and
Channel.
Displays computers and devices that are connected to the router via Ethernet and
that are receiving an IP address assigned by the router (DHCP).
Displays the Multicast Group IP Address.
General:
WAN:
LAN:
Wireless LAN:
LAN Computers:
IGMP Multicast
Memberships:
Device Information

D-Link DIR-651 Specifications

General

Wireless Standard	802.11n
Frequency Band	2.4 GHz
Ports	4 x 10/100 Mbps LAN, 1 x 10/100 Mbps WAN
Antenna Type	External
Wireless Speed	Up to 300 Mbps
Antennas	2
Device Type	Wireless Router
Security	WEP, WPA, WPA2
