D-Link DIR-816L Quick Installation Guide

DIR-816L Quick Installation Guide
Obtaining IP Address Automatically
in OS Windows XP
1. Click the Start button and proceed to the Control Panel > Network
and Internet Connections > Network Connections window.

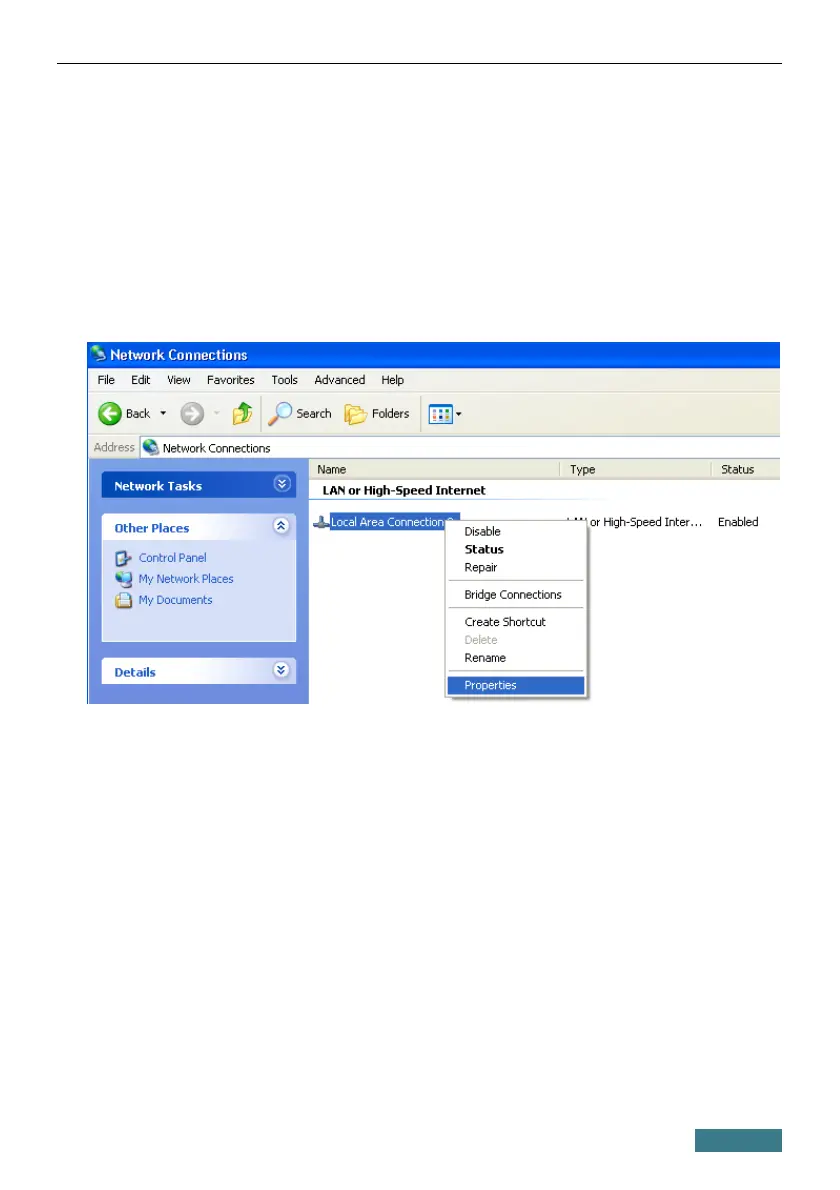

2. In the Network Connections window, right-click the relevant Local
Area Connection icon and select the Properties line in the menu
displayed.
3. In the Local Area Connection Properties window, on the General
tab, select the Internet Protocol (TCP/IP) line. Click the Properties
button.
7

D-Link DIR-816L Specifications

General

VPN support	Multi-sessions PPtP / l2tP / iPsec
Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
USB version	2.0
Rack mounting	No
Bandwidth (first)	2.4 GHz
Bandwidth (second)	5 GHz
USB ports quantity	1
Ethernet LAN (RJ-45) ports	4
DHCP client	-
Antennas quantity	2
Security algorithms	WPA, WPA2, WPS
Product color	Black

Weight and Dimensions

Depth	112 mm
Width	151.6 mm
Height	30.5 mm
Weight	204 g
